Name: MOC3021S-TA
Brand: Lite-On Inc.
SKU: MOC3021S-TA
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Lite-On Inc. MOC3021S-TA

Part No.:: MOC3021S-TA

Manufacturer:: Lite-On Inc.

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3021S-TA.pdf

Description:: OPTOISOLATOR 5KV TRIAC 6SMD

In Stock:: 3286

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3021S-TA Specifications

Packaging:
Tape & Reel (TR)
Series:
MOC302x
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
5000Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
1kV/µs
Current-LEDTrigger(Ift)(Max):
15mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
250µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.15V
Current-DCForward(If)(Max):
50 mA
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Surface Mount

MOC3021S-TA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3021S-TA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3021S-TA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3021S-TA information

Views：

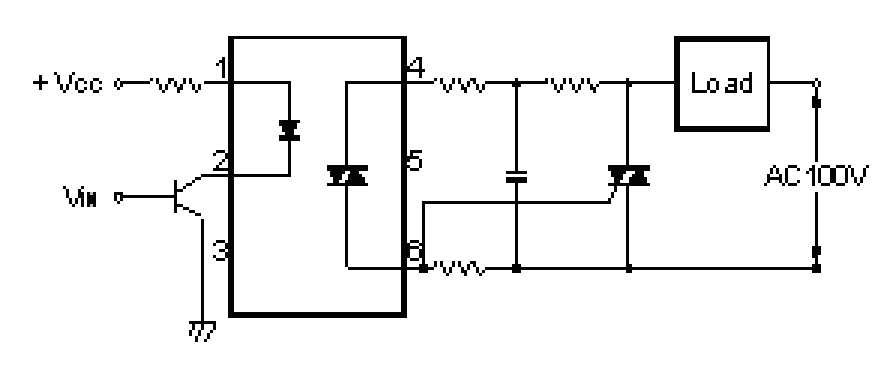

MOC3021S-TA Typical application Circuitry

MOC3021S-TA

The MOC3021S-TA stands out as a high-performance optoisolator, with an internal photometric providing efficient electrical isolation between input and output circuits.

Purpose and Function: MOC3021S-TA excels in enabling low-power logic circuits to control high voltage, high current loads with optimal electrical isolation.

Application Scenarios: It's a common choice in home appliance controls, microcontroller interfacing, and solid-state relays, ensuring operational safety and system reliability.

Core Attributes: MOC3021S-TA's ability to offer thousands of volts of isolation and rapid response times underscores its essential role in various applications.

Implementation in Solid-State Relay (SSR) Control

1. Input Side Connections:

- Current Limiting: Integrate a current limiting resistor at pin 1 (anode) to protect the internal LED of MOC3021S-TA from overcurrent conditions. The resistor value should be calculated based on the input voltage and the LED's forward voltage and current specifications.

- Signal Source Attachment: Connect pin 2 (cathode) directly to the low-power control signal source, ensuring that the LED inside the MOC3021S-TA receives the signal effectively.

2. Output Side Configurations:

- AC Load Control: Attach pin 6 (MT2) of the MOC3021S-TA to the terminal of the AC load. Pin 4 (MT1) is connected to the AC power source, establishing an effective control circuit for the AC load operation.

- Trace Separation: Ensure there's ample separation between the input and output traces on the PCB to maintain the MOC3021S-TA's electrical isolation properties.

3. Snubber Circuit Addition:

- Voltage Spike Reduction: Incorporate a snubber circuit across pins 4 and 6 to dampen voltage transients and protect the MOC3021S-TA's internal phototriac from premature wear and potential failure.

- Component Specification: Determine the resistor and capacitor values according to the specific load and system requirements to maximize snubber circuit efficiency.

4. Safety and Reliability Measures:

- Isolation Enhancement: Use optocouplers and additional isolation methods in tandem to augment electrical isolation and improve system safety and reliability.

- Component Quality Control: Ensure the MOC3021S-TA and all ancillary components meet the requisite quality and safety standards to uphold system performance and longevity.

Key Considerations

1. Heat Management:

- Heat Dissipation: Incorporate adequate heat dissipation mechanisms to keep the MOC3021S-TA within safe operating temperature limits, maintaining optimal performance and prolonging lifespan.

- Environmental Conditions: Consider the ambient operating conditions and ensure that the MOC3021S-TA and associated components are rated to handle such conditions effectively.

2. Electrical Specifications Adherence:

- Operating Limits: Ensure that the MOC3021S-TA is operated within its specified electrical limits to prevent damage and ensure reliable performance.

- Design Validation: Utilize simulation and testing to validate the design, ensuring that it meets the desired performance and safety criteria.

In essence, the incorporation of MOC3021S-TA in SSR applications exemplifies the synergistic integration of safety, efficiency, and performance, granted adherence to design, implementation, and safety protocols is maintained:
