ON Semiconductor MMPQ2222AR1

Part No.:: MMPQ2222AR1

Manufacturer:: ON Semiconductor

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MMPQ2222AR1.pdf

Description:: TRANS 4NPN 40V 0.5A 16SOIC

In Stock:: 2890

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MMPQ2222AR1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
TransistorType:
4 NPN (Quad)
Current-Collector(Ic)(Max):
500mA
Voltage-CollectorEmitterBreakdown(Max):
40V
VceSaturation(Max)@IbIc:
1V @ 50mA, 500mA
Current-CollectorCutoff(Max):
50nA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
100 @ 150mA, 10V
Power-Max:
1W
Frequency-Transition:
350MHz
OperatingTemperature:
-55°C ~ 150°C (TJ)
MountingType:
Surface Mount

MMPQ2222AR1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MMPQ2222AR1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MMPQ2222AR1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MMPQ2222AR1 information

Views：

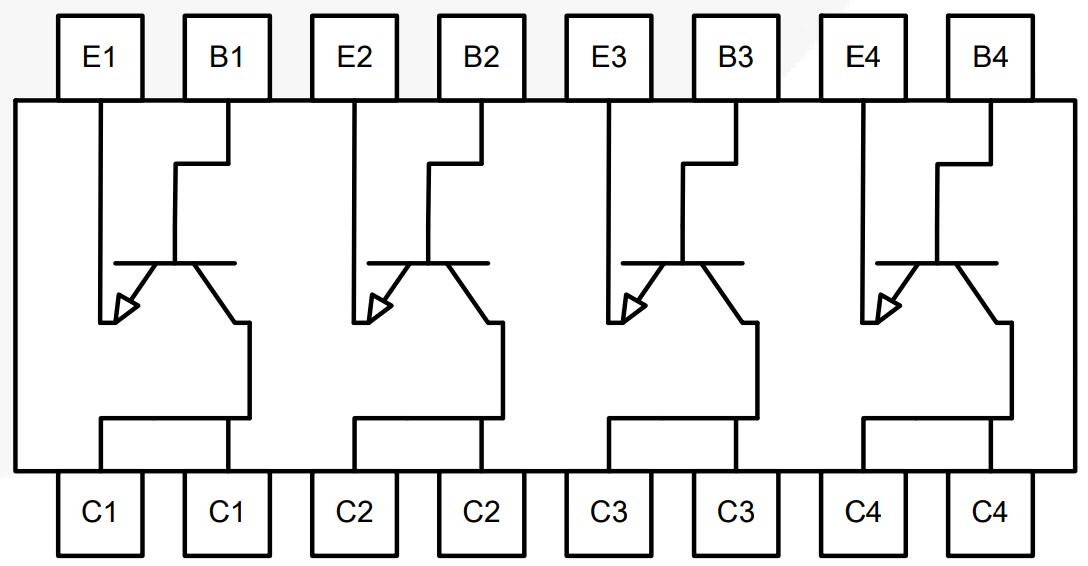

MMPQ2222AR1 Typical application Circuitry

MMPQ2222AR1

The MMPQ2222AR1 is a distinguished member of the MMPQ2222A series, a collection of quad NPN bipolar junction transistors designed for versatile applications in amplification and switching. This series is particularly celebrated for its compact form factor and integrated quad transistor configuration, making the MMPQ2222AR1 an ideal choice for high-density PCB designs where space and performance are critical.

1. Collector-Emitter Voltage (VCEO): The MMPQ2222AR1 is engineered to handle collector-emitter voltages up to 40V, ensuring robust performance across a wide range of operating conditions. Careful consideration must be given to not exceed this voltage to prevent irreversible damage to the device.

2. Base Current (IB) and Control: The base terminals of the MMPQ2222AR1 are pivotal in regulating the transistor's switching and amplification behaviors. A moderate current, typically in the microampere range, is applied to these terminals to control the larger currents flowing from the collector to the emitter, thereby enabling precise signal modulation.

3. Emitter Configuration: For optimal performance, the emitters of the MMPQ2222AR1 should be securely connected to a common ground. This ensures a stable reference point for the current flow and facilitates the efficient operation of the transistors within the package.

4. Current Gain (hFE) Consideration: The MMPQ2222AR1 boasts a notable current gain, often exceeding 100, which is instrumental in applications requiring signal amplification. This characteristic amplifies the input signal's current, making the MMPQ2222AR1 an effective component in circuits where signal strengthening is required.

Integrating the MMPQ2222AR1 into an electronic circuit requires a detailed understanding of each pin's functionality and its correct implementation to harness the full potential of the device. The MMPQ2222AR1's sophisticated design, characterized by its high current gain, low saturation voltage, and compact quad transistor configuration, makes it a versatile and efficient choice for a myriad of applications, ranging from digital logic switches to analog signal amplifiers. The MMPQ2222A series, with the MMPQ2222AR1 as a key variant, embodies the innovation and reliability of semiconductor devices designed to meet the complex requirements of modern electronic systems.
