Name: MLX90316KDC-BDG-100-RE
Brand: Melexis Technologies NV
SKU: MLX90316KDC-BDG-100-RE
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Melexis Technologies NV MLX90316KDC-BDG-100-RE

Part No.:: MLX90316KDC-BDG-100-RE

Manufacturer:: Melexis Technologies NV

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MLX90316KDC-BDG-100-RE.pdf

Description:: SENSOR ROTARY 360DEG SMD

In Stock:: 2522

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MLX90316KDC-BDG-100-RE Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Triaxis®
ProductStatus:
Active
ForMeasuring:
Rotary Position
Technology:
Hall Effect
RotationAngle-ElectricalMechanical:
0° ~ 360°, Continuous
LinearRange:
-
Output:
SPI
OutputSignal:
-
ActuatorType:
External Magnet, Not Included
Linearity:
±1°
Resistance:
-
ResistanceTolerance:
-
Voltage-Supply:
4.5V ~ 5.5V
MountingType:
Surface Mount
TerminationStyle:
Gull Wing
OperatingTemperature:
-40°C ~ 125°C

MLX90316KDC-BDG-100-RE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MLX90316KDC-BDG-100-RE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MLX90316KDC-BDG-100-RE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MLX90316KDC-BDG-100-RE information

Views：

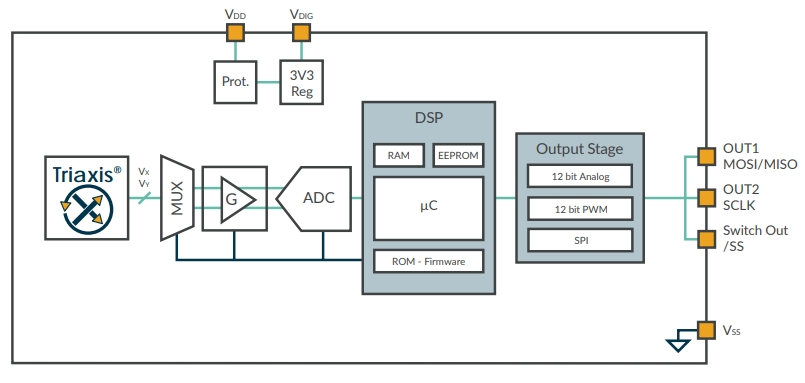

MLX90316KDC-BDG-100-RE Typical application Circuitry

MLX90316KDC-BDG-100-RE

The MLX90316KDC-BDG-100-RE is a sophisticated, programmable rotary position sensor IC, utilizing the Hall effect principle. This device is designed to capture the absolute angular position of a magnetic field parallel to the IC surface with high accuracy and reliability.

Application Scenarios

The MLX90316KDC-BDG-100-RE is commonly employed in automotive applications such as steering wheel position sensing, pedal positioning, and gear shifters. It is also used in industrial applications like robotic arm positioning, precision motor control, and various types of rotary controls where accurate position measurement is crucial.

Parameter Features

Key features of the MLX90316KDC-BDG-100-RE include its ability to provide absolute angular position measurement over 360 degrees, high-resolution output, robustness to environmental factors such as temperature fluctuations and vibrations, and a programmable output that can be tailored to specific application needs. It also offers a digital output with SPI or PWM interface options, making it versatile for different communication requirements.

Design Considerations

When designing circuits with the MLX90316KDC-BDG-100-RE, several critical factors must be taken into account:

- Magnetic Field: Ensuring a proper external magnet is used and is positioned correctly relative to the sensor to achieve accurate measurements.

- Power Supply: Providing a stable power supply within the operating voltage range of the MLX90316KDC-BDG-100-RE to maintain optimal performance.

- Communication Interface: Choosing between SPI and PWM based on the design requirements and ensuring proper connection and configuration for data communication.

- Environmental Conditions: Considering the operating environment, including temperature range and potential exposure to mechanical vibrations or other factors that could affect sensor performance.

Rotary Control Interface Circuit Design Example

An example application of the MLX90316KDC-BDG-100-RE is in a rotary control interface for industrial equipment:

- Power Supply Connection: Connect the VDD pin of the MLX90316KDC-BDG-100-RE to a regulated 5V power supply. A decoupling capacitor (e.g., 0.1µF) should be placed near the VDD pin to filter out supply noise.

- Ground Connection: Connect the GND pin of the MLX90316KDC-BDG-100-RE to the system ground.

- SPI Interface Setup: If using SPI communication, connect the MOSI, MISO, SCK, and CS pins of the MLX90316KDC-BDG-100-RE to the corresponding SPI interface pins on the microcontroller or other control logic.

- Magnet Placement: Position an appropriate external magnet above the MLX90316KDC-BDG-100-RE sensor surface, ensuring the magnetic field is parallel to the IC. The magnet's rotation will be detected by the sensor, providing absolute position feedback.

- Environmental Protection: Ensure the MLX90316KDC-BDG-100-RE and the magnet assembly are protected from environmental contaminants and mechanical damage, possibly using a non-magnetic, protective enclosure.

In this rotary control scenario, the MLX90316KDC-BDG-100-RE enables precise control and feedback for industrial equipment, enhancing accuracy and reliability. Proper attention to magnet positioning, power supply stability, noise filtering, and environmental protection is essential for the effective operation of the sensor in demanding industrial environments.
