What is the Additional Feature ?

Name: MK22FX512AVLK12
Brand: NXP USA Inc.
SKU: MK22FX512AVLK12
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MK22FX512AVLK12

Part No.:: MK22FX512AVLK12

Manufacturer:: NXP USA Inc.

Package:: 80-LQFP

Datasheet:

Description:: IC MCU 32BIT 512KB FLASH 80FQFP

In Stock:: 3571

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MK22FX512AVLK12 Specifications

Package/Case:
80-LQFP
Packaging:
Tray
Series:
Kinetis K20
RoHS:
RoHS
Speed:
120MHz
RAM Size:
64K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
DMA, I²S, LVD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, IrDA, SPI, UART/USART, USB, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
56
Core Processor:
ARM® Cortex®-M4
Data Converters:
A/D 27x16b; D/A 1x12b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 105°C (TA)

MK22FX512AVLK12 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MK22FX512AVLK12 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MK22FX512AVLK12 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MK22FX512AVLK12 information

Views：

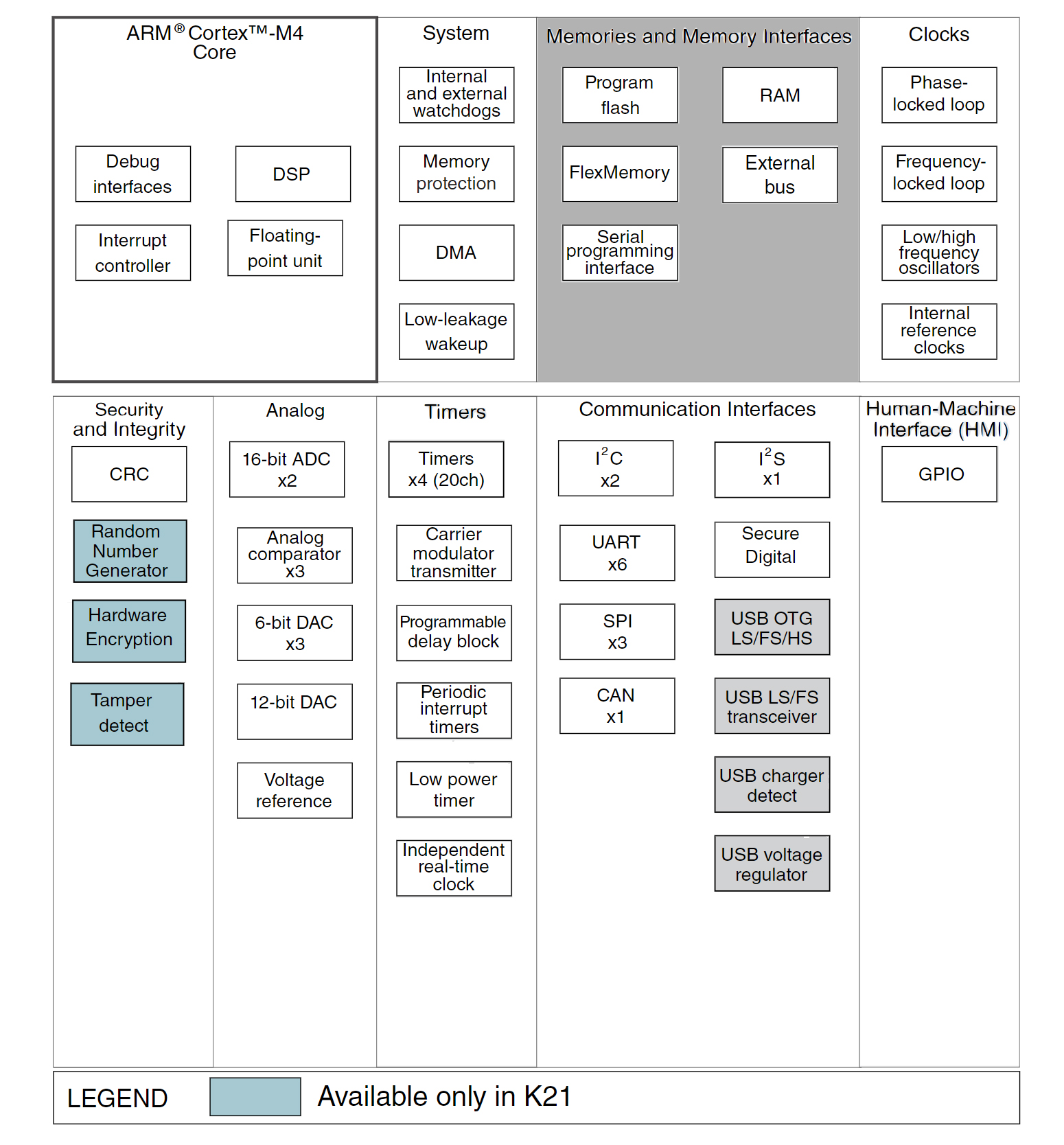

MK22FX512AVLK12 Typical application Circuitry

MK22FX512AVLK12

The MK22FX512AVLK12 is a microcontroller chip from NXP Semiconductors, part of the Kinetis K series. It's important to note that providing a detailed circuit connection method for this microcontroller would require a substantial amount of information, as it involves various pins and peripherals for specific applications. However, I can give you a broad overview of how to connect and set up this microcontroller in your circuit:

1. Pinout Description: The MK22FX512AVLK12 microcontroller comes in a specific package with a set of pins that serve various functions. Consult the datasheet for the detailed pinout.

2. Power Supply (VDD and VSS): Connect the VDD pins to the positive supply voltage and the VSS pins to ground (GND) to provide power to the microcontroller. Examine the voltage levels to make sure they fall within the designated working range.

3. Clock Source: Connect the appropriate external clock source (e.g., crystal oscillator) to the XTAL pins, ensuring that it meets the microcontroller's clock requirements. Set the clock configuration in the microcontroller accordingly.

4. Reset and Boot Configuration: Connect the RESET pin to a reset circuit if needed. Configure the boot mode pins to specify the boot source (e.g., internal flash, external memory).

5. Input/Output Pins: Connect GPIO pins to your external components, such as sensors, displays, or other peripherals. Configure these pins in your software to define their functionality as inputs or outputs.

6. Communication Interfaces: If using communication interfaces like UART, SPI, I2C, or CAN, connect the relevant pins to the corresponding devices or peripherals. Configure the microcontroller's registers for communication settings.

7. Analog Inputs: If you have analog sensors, connect them to the microcontroller's analog input pins (ADC channels). According to the needs of your application, configure the ADC for analog-to-digital conversion.

8. External Memory (if required): If you need additional memory beyond the microcontroller's internal memory, connect external memory devices such as EEPROM, RAM, or flash memory, following the datasheet guidelines.

9. Grounding: Ensure that all GND pins are properly connected to the ground plane to establish a common ground reference.

10. Debugging and Programming: Connect the SWD or JTAG interface pins for debugging and programming. This allows you to load and debug your firmware.

11. Power Regulation and Decoupling: Add power regulation circuitry, such as voltage regulators and decoupling capacitors, to ensure stable and clean power to the microcontroller.

12. Protection and Filtering: Implement protection circuitry (e.g., ESD protection) and filtering components to safeguard the microcontroller from voltage spikes and noise.

13. Peripheral Configuration: In your software code, configure the microcontroller's internal peripherals and modules (e.g., timers, PWM, UART, GPIO) to perform the desired functions.

14. Testing and Debugging: Test your circuit incrementally, using debugging tools and equipment as needed, to ensure proper functionality.

Please keep in mind that this is only a high-level overview and that the precise connections and configurations rely on the needs of your application. Always refer to the microcontroller's datasheet, reference manual, and application notes for detailed information on pin functions, electrical characteristics, and recommended connection schemes.
