Microchip Technology MCP2562FDT-E/SN

Part No.:: MCP2562FDT-E/SN

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MCP2562FDT-E/SN.pdf

Description:: IC TRANSCEIVER 1/1 8SOIC

In Stock:: 3473

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP2562FDT-E/SN Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
-
ReceiverHysteresis:
200 mV
DataRate:
8Mbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

MCP2562FDT-E/SN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP2562FDT-E/SN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP2562FDT-E/SN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP2562FDT-E/SN information

Views：

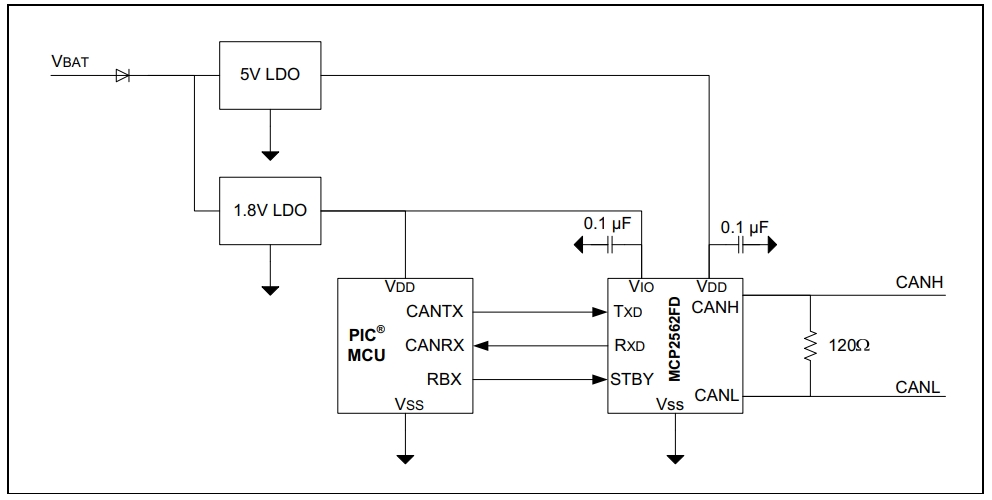

MCP2562FDT-E/SN Typical application Circuitry

MCP2562FDT-E SN

The MCP2562FDT-E/SN is a dedicated CAN (Controller Area Network) transceiver chip, integral to enabling communication within automotive and industrial control systems.

1. Role of MCP2562FDT-E/SN: This chip acts as a critical bridge between a CAN controller and the CAN bus, adept at both sending and receiving signals. The MCP2562FDT-E/SN ensures that data is accurately transmitted and received over the CAN network.

2. Usage in Various Settings: Utilized predominantly in vehicle networks for diagnostics and control, the MCP2562FDT-E/SN is also found in factory automation and robotic control systems. Its reliability in transmitting data over long distances and in electrically noisy environments makes it a preferred choice.

3. Characteristic Features: Operating with a supply range of 4.5V to 5.5V, the MCP2562FDT-E/SN stands out for its compliance with the ISO 11898-2 standard, ensuring robust performance in demanding conditions.

Circuit Design - Vehicle Diagnostics Interface:

- Microcontroller Connection: Attach pin 1 (TXD) of the MCP2562FDT-E/SN to the transmitting pin of your microcontroller, and connect pin 4 (RXD) to the microcontroller's receiving pin.

- Supply Voltage Application: Ensure to supply a stable voltage within 4.5V to 5.5V to pin 3 (VDD) of the MCP2562FDT-E/SN.

- CAN Bus Links: Pins 6 (CANL) and 7 (CANH) of the MCP2562FDT-E/SN should be connected to the CAN network's low and high lines, vital for differential communication.

- End-of-Line Termination: Implement termination resistors on the CAN bus, connecting across the CANH and CANL, to maintain the integrity of the transmitted signals.

- Standby Management: Use pin 8 (STBY) on the MCP2562FDT-E/SN to toggle between normal and standby modes, enabling power efficiency in the circuit.

Circuit Design Considerations:

When integrating the MCP2562FDT-E/SN into a circuit, pay attention to the layout of the CAN bus to avoid signal reflection. Correctly choosing and placing termination resistors is crucial for signal integrity. Additionally, providing a stable and clean power supply is vital for the consistent performance of the MCP2562FDT-E/SN.

To encapsulate, the MCP2562FDT-E/SN is an essential component for reliable CAN network communication in automotive and industrial environments. Its effective deployment in a circuit hinges on proper bus layout, termination resistor selection, and a stable power supply. By adhering to these guidelines, the MCP2562FDT-E/SN can be optimally utilized in various data-intensive and noise-prone applications.
