Microchip Technology MCP2562FDT-E/MF

Part No.:: MCP2562FDT-E/MF

Manufacturer:: Microchip Technology

Package:: 8-VDFN Exposed Pad

Datasheet:: MCP2562FDT-E/MF.pdf

Description:: IC TRANSCEIVER 1/1 8DFN

In Stock:: 2436

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP2562FDT-E/MF Specifications

Package/Case:
8-VDFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
-
ReceiverHysteresis:
200 mV
DataRate:
8Mbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

MCP2562FDT-E/MF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP2562FDT-E/MF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP2562FDT-E/MF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP2562FDT-E/MF information

Views：

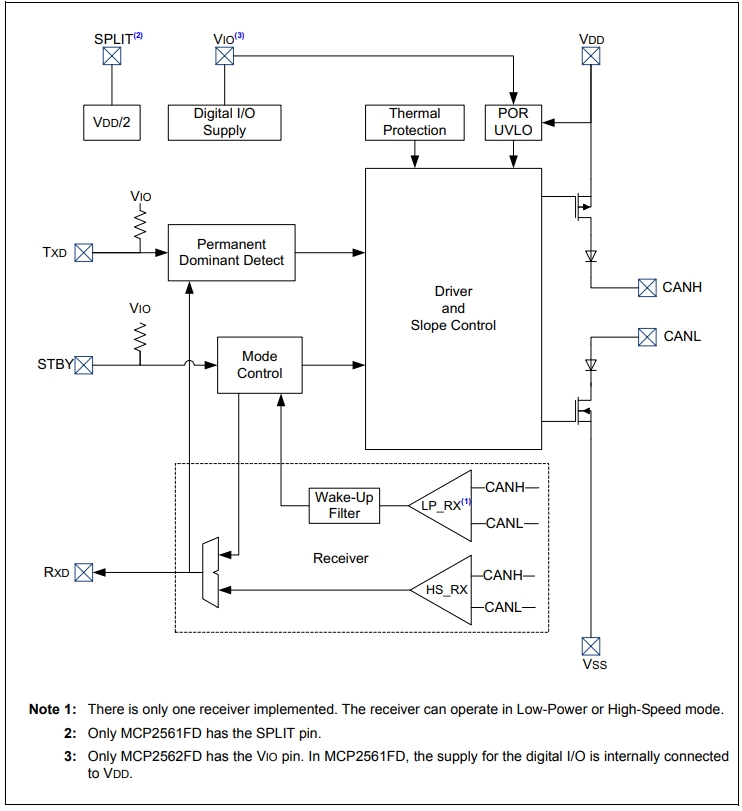

MCP2562FDT-E/MF Typical application Circuitry

MCP2562FDT-E MF

The MCP2562FDT-E/MF is a high-speed CAN (Controller Area Network) transceiver chip designed by Microchip Technology, primarily used for data communication in automotive and industrial applications. It facilitates the transmission and reception of CAN protocols by converting data from a CAN controller to CAN bus differential signals.

MCP2562FDT-E/MF Specifications:

1. Voltage Range: Operates in a supply voltage range of 4.5V to 5.5V, aligning with standard automotive and industrial power systems.

2. High Speed: Supports CAN data rates up to 1 Mbps, making it suitable for high-speed data transmission.

3. Protection Features: Equipped with thermal shutdown protection and short-circuit protection, enhancing its reliability in harsh environments.

4. Low Power Consumption: Features a low standby current, crucial for power-sensitive applications.

Application in Automotive Diagnostics:

The MCP2562FDT-E/MF is widely used in automotive diagnostics systems for communicating between a vehicle's onboard computer and external diagnostic equipment.

Circuit Integration:

1. Power Connection: Pin 5 (VDD) of the MCP2562FDT-E/MF is connected to a 5V power source, and pin 3 (VSS) is grounded.

2. CAN Controller Interface: Connect the transmit pin (TX) of the CAN controller to pin 1 (TXD) of the MCP2562FDT-E/MF, and the receive pin (RX) of the CAN controller to pin 4 (RXD).

3. CAN Bus Connection: Attach pin 6 (CANH) to the high side of the CAN bus and pin 7 (CANL) to the low side. These connections are crucial for differential signal transmission.

4. Network Termination: Implement 120Ω termination resistors at each end of the CAN bus to ensure proper impedance matching.

Design Considerations:

- Stable Power Supply: A stable 5V supply is vital for the MCP2562FDT-E/MF's consistent performance.

- Impedance Matching: Correctly match the impedance of the CAN bus to prevent signal reflection and ensure reliable communication.

- Bypass Capacitor: Place a bypass capacitor (typically 100 nF) close to the MCP2562FDT-E/MF's power supply pin to filter out noise.

- Layout Considerations: Design the PCB layout to minimize interference, particularly around the TXD and RXD lines, for optimal signal integrity.

In automotive diagnostic systems, the MCP2562FDT-E/MF plays a pivotal role in ensuring robust and reliable communication between the vehicle's onboard systems and external diagnostic tools. When designing with the MCP2562FDT-E/MF, attention must be paid to power stability, network impedance, noise suppression, and clean PCB layout to guarantee effective CAN communication.
