Name: MCP2561-E/SN
Brand: Microchip Technology
SKU: MCP2561-E/SN
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology MCP2561-E/SN

Part No.:: MCP2561-E/SN

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MCP2561-E/SN.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3046

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP2561-E/SN Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
-
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

MCP2561-E/SN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP2561-E/SN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP2561-E/SN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP2561-E/SN information

Views：

MCP2561-E/SN Typical application Circuitry

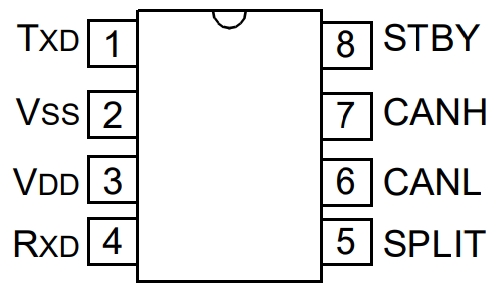

MCP2561-E SN

Microchip Technology produces the high-speed CAN (Controller Area Network) transceiver MCP2561-E/SN. Between a CAN protocol controller and the actual two-wire CAN bus, this device acts as an interface. It is designed to operate at speeds up to 1 Mbps, making it suitable for automotive and industrial applications where reliable data communication is essential.

Application Scenarios

MCP2561-E/SN is widely used in:

- Automotive Systems: For communication between various control units like engine management systems, airbags, and in-vehicle infotainment.

- Industrial Automation: Facilitating communication between control systems, sensors, and actuators in manufacturing environments.

- Building Automation: In HVAC (heating, ventilation, and air conditioning) systems and lighting systems.

- Medical Devices: For reliable data exchange between different diagnostic and monitoring equipment.

Parameter Features

Key features of MCP2561-E/SN include:

- High-Speed Operation: Supports CAN protocols up to 1 Mbps.

- Low Power Consumption: Ideal for power-sensitive applications.

- Robust Protection Features: Includes thermal shutdown, short-circuit protection, and protection against high-voltage transients.

- Wide Operating Voltage Range: Typically from 4.5V to 5.5V, suitable for most automotive and industrial applications.

Specific Application Scenario and Circuit Connection

Automotive Control Unit Communication: Utilizing MCP2561-E/SN for CAN bus communication in a vehicle control system.

1. CAN Bus Connection: Connect the CANH and CANL pins of MCP2561-E/SN to the corresponding high and low wires of the CAN network to ensure proper differential signal transmission.

2. Power Supply: Attach the VDD pin to a regulated 5V power supply, suitable for automotive environments, and connect the VSS pin to the system ground to establish the device's power supply.

3. Digital Interface: Interface the TXD input pin to the CAN controller's transmit output, allowing digital CAN frame transmission. Similarly, connect the RXD output pin to the CAN controller's receive input to facilitate frame reception.

4. Mode Control: Utilize the STBY (standby) pin to switch MCP2561-E/SN between normal operation and low-power standby mode. This feature is particularly useful in power-sensitive applications where conserving energy is crucial.

Circuit Design Considerations

Incorporating MCP2561-E/SN into a circuit requires attention to:

- Impedance Matching: Ensure proper termination resistors are used at the ends of the CAN bus to match the characteristic impedance, minimizing reflections and ensuring signal integrity.

- Power Supply Noise: To reduce power supply noise and preserve steady operation, use decoupling capacitors in close proximity to the VDD pin.

- Protection: Consider additional transient voltage suppression (TVS) diodes at the CANH and CANL lines to enhance protection against voltage spikes, especially in automotive environments.

- Layout: Maintain a clear separation between high-speed communication lines and sensitive analog or digital circuits to prevent electromagnetic interference.

By addressing these design aspects, the MCP2561-E/SN can be effectively utilized in automotive and industrial applications for reliable CAN communication, ensuring robust and efficient data exchange across various subsystems.
