Microchip Technology MCP2515T-E/SO

Part No.:: MCP2515T-E/SO

Manufacturer:: Microchip Technology

Package:: 18-SOIC (0.295, 7.50mm Width)

Datasheet:: MCP2515T-E/SO.pdf

Description:: IC CAN CONTROLLER W/SPI 18SOIC

In Stock:: 3385

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MCP2515T-E/SO Specifications

Package/Case:
18-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Protocol:
CANbus
Function:
Controller
Interface:
SPI
Standards:
CAN 2.0
Voltage-Supply:
2.7V ~ 5.5V
Current-Supply:
10mA
OperatingTemperature:
-40°C ~ 125°C

MCP2515T-E/SO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MCP2515T-E/SO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MCP2515T-E/SO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MCP2515T-E/SO information

Views：

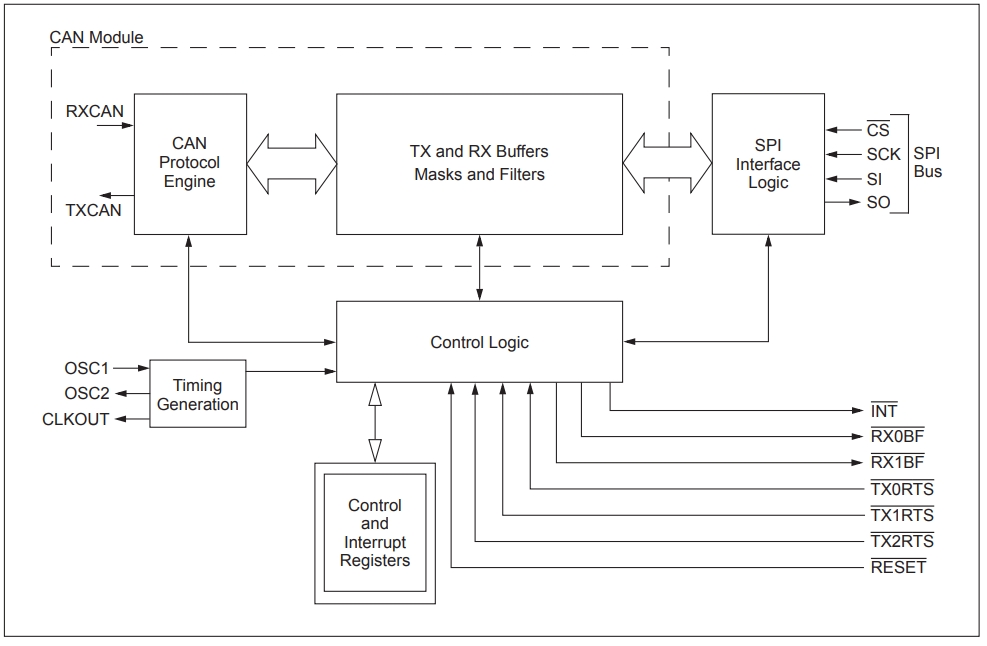

MCP2515T-E/SO Typical application Circuitry

MCP2515T-E SO

The MCP2515T-E/SO is a stand-alone Controller Area Network (CAN) controller developed by Microchip Technology, designed to interface with a microcontroller over the SPI (Serial Peripheral Interface) bus. It is primarily used in automotive applications for vehicle networking and in industrial automation systems for machine-to-machine communication.

MCP2515T-E/SO Specifications:

1. CAN Interface: It facilitates the implementation of CAN communication protocols, supporting CAN V2.0B at 1 Mb/s.

2. SPI Interface: The chip connects to microcontrollers via SPI, operating at clock speeds up to 10 MHz.

3. Voltage Range: Operates in a voltage range from 4.5V to 5.5V, suitable for various electronic systems.

4. Integrated Features: Includes features like programmable bit rate, on-chip filtering, and two receive buffers.

Application in a Vehicle Diagnostics System:

The MCP2515T-E/SO is frequently used in vehicle diagnostics systems, interfacing with various sensors and control units within a vehicle to gather and communicate diagnostic data.

Circuit Connection Approach:

1. Power Supply Connection: Connect the power supply (typically 5V) to pin 14 (VDD) of the MCP2515T-E/SO and pin 6 (VSS) to ground.

2. SPI Communication Setup: Link the SPI pins of a microcontroller to the MCP2515T-E/SO: SI (pin 11) to MOSI, SO (pin 12) to MISO, SCK (pin 13) to SCK, and CS (pin 10) to a chip select pin.

3. CAN Bus Integration: Connect a CAN transceiver to the MCP2515T-E/SO's CANL (pin 7) and CANH (pin 8). The transceiver then interfaces with the CAN bus network.

4. Interrupt Handling: Connect the INT pin (pin 9) to an interrupt pin on the microcontroller for real-time message processing.

Design Considerations:

- Stable Power Source: Ensure a stable 5V power supply for the MCP2515T-E/SO's reliable operation.

- SPI Configuration: Properly configure the SPI communication parameters to match between the microcontroller and the MCP2515T-E/SO.

- CAN Transceiver Compatibility: The CAN transceiver used should be compatible with the MCP2515T-E/SO and the CAN network's voltage levels.

- PCB Layout: Minimize noise interference by keeping the SPI and CAN bus traces short and implementing proper grounding techniques.

In vehicle diagnostic systems, the MCP2515T-E/SO is critical for enabling communication over the CAN network, ensuring that diagnostic data is accurately gathered and relayed. When designing with the MCP2515T-E/SO, attention must be paid to power supply quality, SPI communication integrity, transceiver compatibility, and clean PCB layout to ensure efficient and reliable operation.
