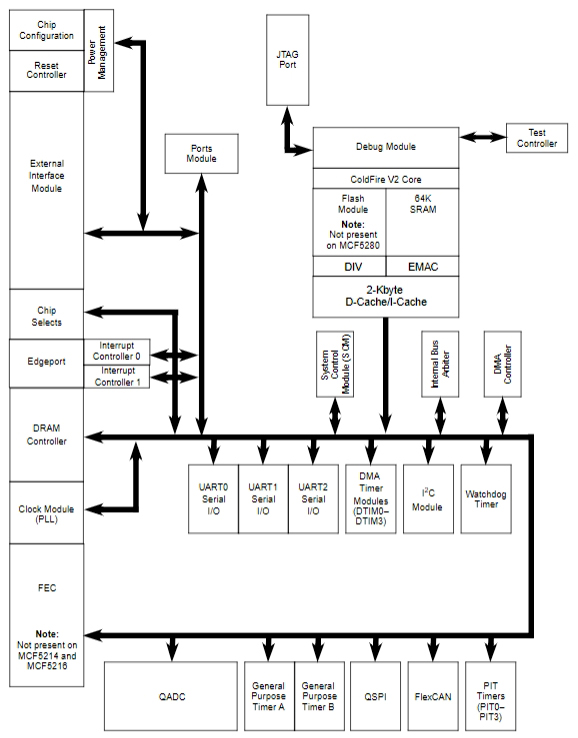

MCF5282CVF66 Typical application Circuitry

MCF5282CVF66

The MCF5282CVF66 is a 32-bit microcontroller produced by Freescale (now NXP), belonging to the ColdFire V2 core family. This chip is favored for its high-performance computing capability, rich built-in features, and flexible communication interfaces.

Application Scenario: Network Communication Equipment

In network communication equipment, the MCF5282CVF66 can serve as the core processor, responsible for processing network packets, executing encryption and decryption algorithms, and managing network connections.

Parameter Features

- Core: 32-bit ColdFire V2

- Frequency: Up to 66MHz

- Built-in Memory: Includes Flash and SRAM

- Communication Interfaces: Supports Ethernet, UART, SPI, I2C, etc.

- Packaging: Packaged as a 256-pin MAPBGA

Specific Circuit Connection Example: Ethernet Interface

Ethernet Controller Connection

- Pin Configuration: Connect the Ethernet controller interface pins of the MCF5282CVF66 (such as TXD0, TXD1, RXD0, RXD1, TX_EN, etc.) to an external Ethernet PHY chip.

- Power and Ground: Provide a stable 3.3V power supply for the MCF5282CVF66 and the external PHY chip, ensuring good ground connections.

- Magnetic Transformer: Connect the PHY chip to the RJ45 network socket through a magnetic transformer to isolate the signal and provide a physical layer connection.

Programming Interface

- JTAG Interface: Use the JTAG pins of the MCF5282CVF66 (TMS, TCK, TDI, TDO, nTRST) to connect to a JTAG emulator for programming and debugging.

- Pin Protection: Add appropriate pull-up or pull-down resistors on the JTAG interface pins to ensure stable pin states when the emulator is not connected.

Considerations in Circuit Design

- Power Management: Ensure a stable and clean power supply for the MCF5282CVF66, possibly using LDOs or switch-mode power supplies to reduce power supply noise.

- EMI/EMC: To reduce electromagnetic interference (EMI) and meet electromagnetic compatibility (EMC) requirements, proper layout and routing are necessary, especially around high-speed signals and communication interfaces.

- Thermal Management: Take into account the MCF5282CVF66's power consumption and cooling needs, making sure to implement the proper heat dissipation strategies, including heat sinks or enough air circulation.

- Firmware and Software Development: When developing firmware and software for the MCF5282CVF66, consider its memory and processing limitations, optimizing code for efficiency.

When designing any system based on the MCF5282CVF66, it's also important to consider the overall system requirements, budget constraints, and intended market applications to ensure the final product meets the set performance and functionality standards.
