What is the Additional Feature ?

Name: MC9S12XDP512CAG
Brand: NXP USA Inc.
SKU: MC9S12XDP512CAG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MC9S12XDP512CAG

Part No.:: MC9S12XDP512CAG

Manufacturer:: NXP USA Inc.

Package:: 144-LQFP

Datasheet:: MC9S12XDP512CAG.pdf

Description:: IC MCU 16BIT 512KB FLASH 144LQFP

In Stock:: 3951

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC9S12XDP512CAG Specifications

Package/Case:
144-LQFP
Packaging:
Tray
Series:
HCS12X
RoHS:
RoHS
Speed:
80MHz
RAM Size:
32K x 8
Core Size:
16-Bit
EEPROM Size:
4K x 8
Part Status:
Active
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
119
Core Processor:
HCS12X
Data Converters:
A/D 24x10b
Oscillator Type:
External
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

MC9S12XDP512CAG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC9S12XDP512CAG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC9S12XDP512CAG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC9S12XDP512CAG information

Views：

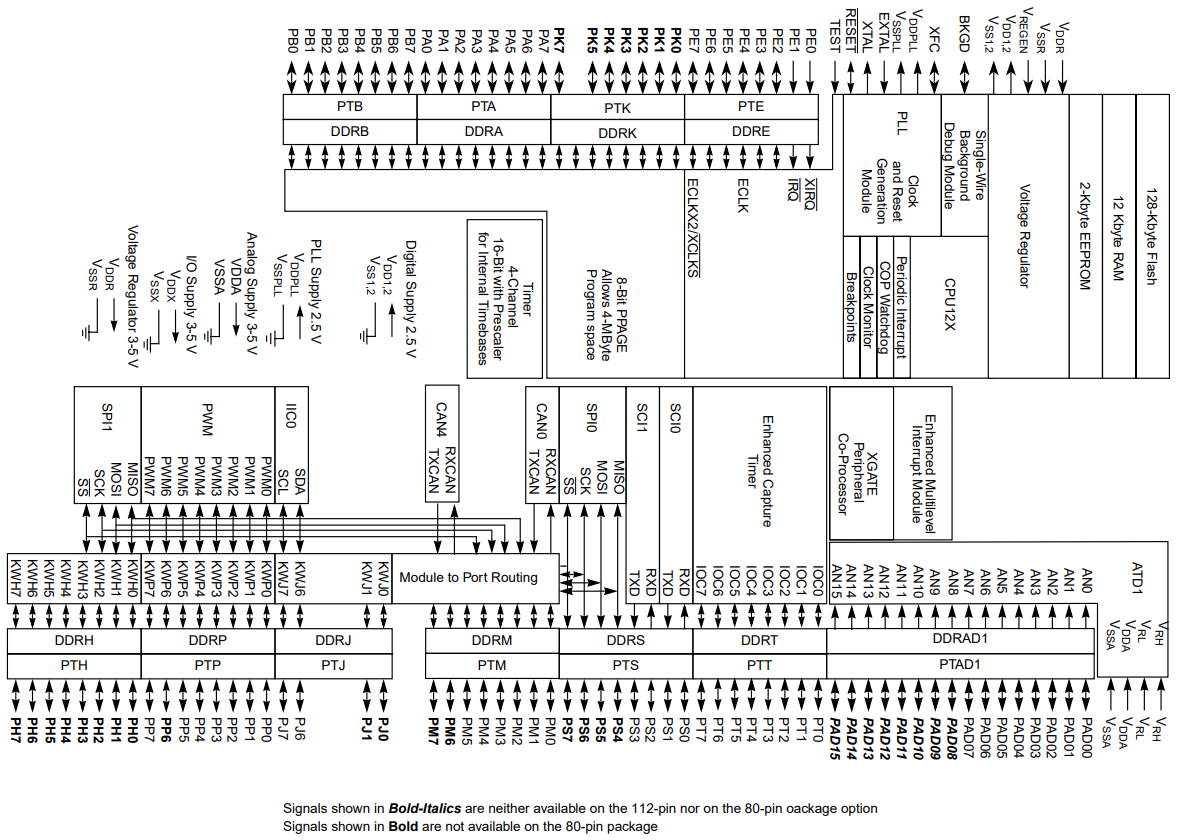

MC9S12XDP512CAG Typical application Circuitry

The MC9S12XDP512CAG is a powerful 16-bit microcontroller unit (MCU) from NXP's HCS12X series. It integrates many functions and boasts significant processing capabilities, making it a suitable choice for a variety of applications.

Noteworthy features of the MC9S12XDP512CAG are:

- Processing: Equipped with a HCS12X CPU, delivering a robust 16-bit processing core.

- Memory: The chip offers 512KB flash memory, 32KB RAM, and 4KB EEPROM.

- Clocking: It possesses a Phase-Locked Loop (PLL) clock generating system.

- I/O: This MCU comes with 91 general-purpose input/output (GPIO) pins for extensive interfacing capabilities.

- Power Management: It operates in a range from 4.5V to 5.5V, and supports power-saving modes.

- Analog: The MCU integrates 8-channel, 10-bit analog-to-digital converter (ADC).

- Communication: It supports various communication protocols including CAN, SCI, SPI, and I2C.

Applications of the MC9S12XDP512CAG include automotive systems, industrial control systems, robotics, and other embedded systems that require high computational capabilities.

Now, let's illustrate the MC9S12XDP512CAG in a hypothetical automotive application, where it's employed to read sensor data and control different parts of a vehicle:

1. Supplying Power: The MCU is powered by connecting VDD (Pin 1) to a 5V power supply, and VSS (Pin 19) to the ground.

2. Clock Source: The EXTAL (Pin 53) and XTAL (Pin 54) pins can be used to connect an external crystal oscillator. This provides an accurate time base for all MCU operations.

3. Engine Temperature Sensor: An analog temperature sensor from the engine can be connected to an ADC channel, such as AN0 (Pin 80). The MCU then converts the analog data into digital form for processing.

4. Fuel Level Sensor: Another ADC channel, say AN1 (Pin 79), can be used to interface with a fuel level sensor.

5. Engine Control: To control the engine, a GPIO pin like PA0 (Pin 38) could be used. This pin could be connected to a relay or MOSFET that controls the engine.

6. Communication: For vehicle diagnostics, one of the SCI interfaces can be used. SCI0 TXD0 (Pin 66) and RXD0 (Pin 67) could be connected to a diagnostics port.

During the circuit design phase, the following considerations are crucial:

- Power Supply Decoupling: Place a decoupling capacitor near the VDD and VSS pins to filter out power supply noise.- ESD Protection: Precautions should be taken to prevent damage from electrostatic discharge during handling and operation.

- Thermal Management: To avoid overheating, make sure the item operates within the acceptable temperature range.

Always refer to the MC9S12XDP512CAG datasheet for a comprehensive understanding of the MCU and its specifications.
