NXP USA Inc. MC9S12C64CFAE

Part No.:: MC9S12C64CFAE

Manufacturer:: NXP USA Inc.

Package:: 48-LQFP

Datasheet:: MC9S12C64CFAE.pdf

Description:: IC MCU 16BIT 64KB FLASH 48LQFP

In Stock:: 2833

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC9S12C64CFAE Specifications

Package/Case:
48-LQFP
Packaging:
Tray
Series:
HCS12
RoHS:
RoHS
Speed:
25MHz
RAM Size:
4K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
31
Core Processor:
HCS12
Data Converters:
A/D 8x10b
Oscillator Type:
Internal
Program Memory Size:
64KB (64K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

MC9S12C64CFAE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC9S12C64CFAE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC9S12C64CFAE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC9S12C64CFAE information

Views：

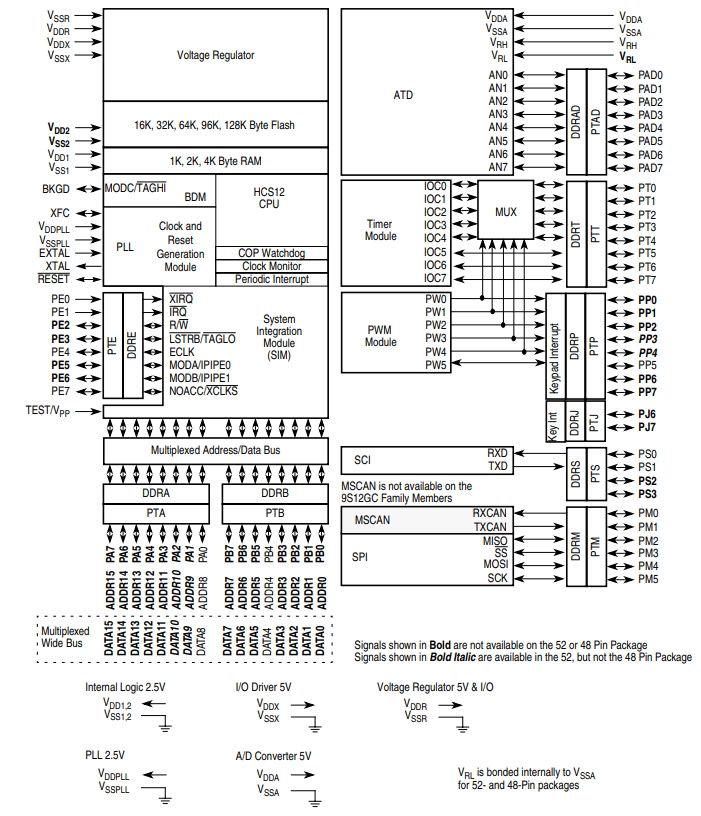

MC9S12C64CFAE Typical application Circuitry

MC9S12C64CFAE

The MC9S12C64CFAE is a 16-bit microcontroller (MCU) from the MC9S12C family, designed by NXP Semiconductors. This MCU is based on the HCS12 core and is tailored for automotive and industrial control systems, offering a mix of integrated features for various embedded applications.

Key Features of MC9S12C64CFAE

1. HCS12 Core: The MCU operates with a 16-bit HCS12 core, providing efficient processing for moderate complexity tasks.

2. Memory Specifications: It comes with 64KB of flash memory and 4KB of RAM, suitable for storing and executing embedded applications.

3. Rich Peripheral Set: Includes various communication interfaces like CAN, SPI, and SCI (Serial Communication Interface), ideal for connected systems.

4. Digital and Analog I/O: Equipped with numerous GPIO (General Purpose Input/Output) pins and ADC (Analog-to-Digital Converter) channels.

5. Automotive and Industrial Suitability: Designed to meet the robust requirements of automotive and industrial environments.

Application Scenario: Automotive Engine Control Unit (ECU)

In an automotive ECU, the MC9S12C64CFAE can manage engine parameters, process sensor data, and communicate with other vehicle systems.

Detailed Circuit Integration

1. Power Supply Connection: Attach the VDDX and VSSX pins to a stable 5V power source. Incorporate decoupling capacitors close to these pins to stabilize the power supply.

2. Sensor Input Interface: Connect engine sensors (such as temperature and pressure sensors) to the ADC channels. For instance, the ADC0 channel can be used for reading engine temperature.

3. Actuator Control: Utilize GPIO pins for controlling actuators. A GPIO pin, like PTB0, can be connected to an actuator driver, managing components like fuel injectors.

4. Vehicle Network Communication: Implement the CAN interface for communication within the vehicle's network. Connect the CANH and CANL pins to the vehicle's CAN bus for data exchange with other control units.

5. Programming and Debugging Interface: Use the BDM (Background Debug Mode) port for programming the MCU. This involves connecting the BDM pins (MODC, MODB, and BKGD/MS) to a compatible BDM programmer.

6. Signal Conditioning: Implement signal conditioning circuits for sensor inputs to ensure accurate ADC readings.

Design Considerations

- EMI/EMC in Automotive Environments: Design the circuit to withstand electromagnetic interference, a critical aspect in automotive applications.

- Signal Integrity for Sensor Inputs: Ensure accurate signal processing, especially for critical engine parameters.

- Thermal Management: Implement strategies to manage heat dissipation in the harsh automotive environment.

- Firmware Robustness: Develop reliable and secure firmware to handle real-time engine control tasks effectively.

By integrating the MC9S12C64CFAE into an automotive ECU, a robust and efficient control system can be achieved, capable of handling real-time processing of engine parameters and ensuring seamless communication within the vehicle's network.
