What is the Additional Feature ?

Name: MC9S08DZ60ACLH
Brand: NXP USA Inc.
SKU: MC9S08DZ60ACLH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MC9S08DZ60ACLH

Part No.:: MC9S08DZ60ACLH

Manufacturer:: NXP USA Inc.

Package:: 64-LQFP

Datasheet:: MC9S08DZ60ACLH.pdf

Description:: IC MCU 8BIT 60KB FLASH 64LQFP

In Stock:: 3138

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC9S08DZ60ACLH Specifications

Package/Case:
64-LQFP
Packaging:
Tray
Series:
S08
RoHS:
RoHS
Speed:
40MHz
RAM Size:
4K x 8
Core Size:
8-Bit
EEPROM Size:
2K x 8
Part Status:
Active
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
CANbus, I²C, LINbus, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
53
Core Processor:
S08
Data Converters:
A/D 24x12b
Oscillator Type:
External
Program Memory Size:
60KB (60K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

MC9S08DZ60ACLH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC9S08DZ60ACLH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC9S08DZ60ACLH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC9S08DZ60ACLH information

Views：

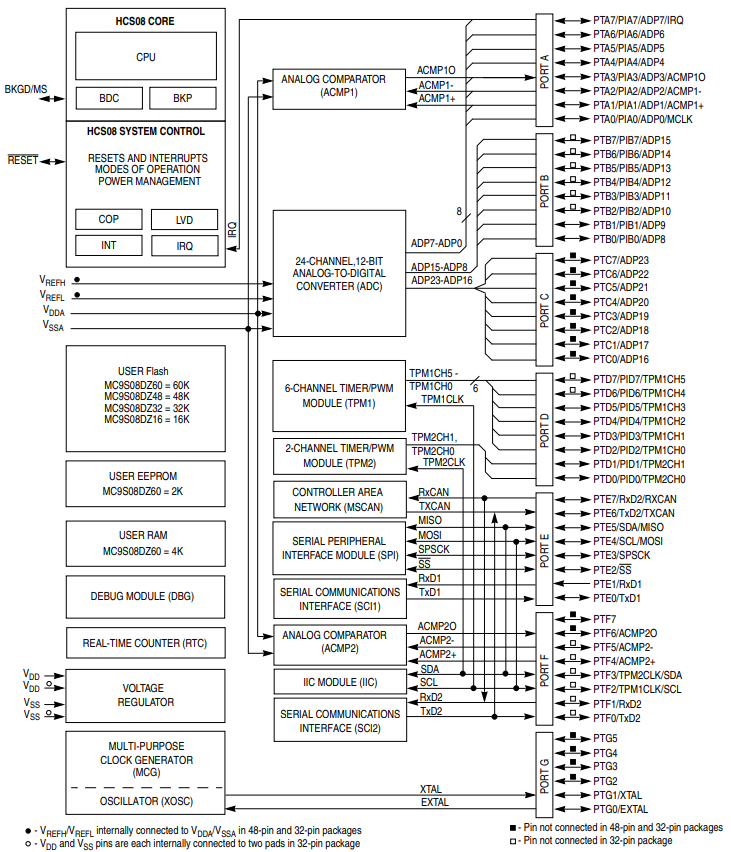

MC9S08DZ60ACLH Typical application Circuitry

The MC9S08DZ60ACLH is a member of the 8-bit S08 microcontroller family by NXP Semiconductors. It offers advanced integration and a comprehensive set of peripherals.

Key features of the MC9S08DZ60ACLH include:

- CPU: HCS08 core with a 20 MHz bus frequency.

- Memory: 60KB Flash and 4KB RAM.

- Timers: Two 2-channel timer interface modules (TIM), one 3-channel 16-bit timer/pulse width modulator (TPM).

- Communication: One inter-integrated circuit (IIC), two serial communication interfaces (SCI), and one serial peripheral interface (SPI).

- Analog: One 8-channel, 10-bit analog-to-digital converter (ADC).

- Supply Voltage: 2.7V to 5.5V.

- Operating Temperature: -40°C to 85°C.

The MC9S08DZ60ACLH is suitable for a range of applications such as automotive control systems, industrial control systems, home appliances, and portable devices.

Let's consider an example application of the MC9S08DZ60ACLH in a basic temperature monitoring system:

1. Power Supply Pins: VDD (Pin 1) is connected to a power source within the chip's operating voltage (2.7V to 5.5V), while VSS (Pin 32) is connected to ground.

2. Oscillator Pins: If an external clock source is required, it is connected to EXTAL (Pin 7). The XTAL (Pin 8) is connected to the external crystal.

3. Temperature Sensor Connection: Connect the output of the temperature sensor to one of the ADC channels (e.g., ADP0 - Pin 3). This pin will read the temperature data.

4. Control Signal: A GPIO pin (e.g., PTA0 - Pin 22) is connected to an indicator (like an LED). This pin will control the indicator based on the temperature data.

5. Communication Interfaces: SCI (PTC2 - Pin 15, PTC3 - Pin 16) can be used for communication with other modules or systems if necessary.

When designing circuits with the MC9S08DZ60ACLH, be sure to consider the following:

- Power Supply Decoupling: Ensure to use decoupling capacitors near the power supply pins to mitigate power supply noise.

- Electrostatic Discharge (ESD) Protection: Protect MCU pins from ESD, particularly when handling the device.

- Thermal Considerations: The recommended temperature range should allow the chip to function. Overheating can cause functional issues and may reduce the lifespan of the MCU.

For a comprehensive understanding of the chip's features and application guidelines, always refer to the MC9S08DZ60ACLH datasheet.
