What is the Additional Feature ?

Name: MC9S08AW32CPUE
Brand: NXP USA Inc.
SKU: MC9S08AW32CPUE
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MC9S08AW32CPUE

Part No.:: MC9S08AW32CPUE

Manufacturer:: NXP USA Inc.

Package:: 64-LQFP

Datasheet:: MC9S08AW32CPUE.pdf

Description:: IC MCU 8BIT 32KB FLASH 64LQFP

In Stock:: 3289

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC9S08AW32CPUE Specifications

Package/Case:
64-LQFP
Packaging:
Tray
Series:
S08
RoHS:
RoHS
Speed:
40MHz
RAM Size:
2K x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
I²C, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
54
Core Processor:
S08
Data Converters:
A/D 16x10b
Oscillator Type:
Internal
Program Memory Size:
32KB (32K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

MC9S08AW32CPUE this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC9S08AW32CPUE price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC9S08AW32CPUE to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC9S08AW32CPUE information

Views：

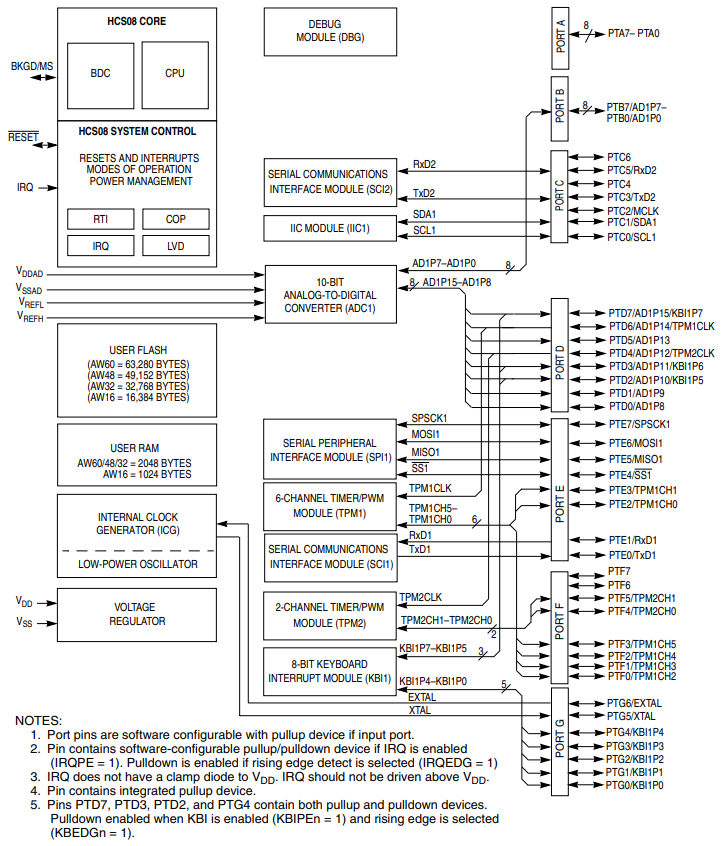

MC9S08AW32CPUE Typical application Circuitry

The MC9S08AW32CPUE is an 8-bit Microcontroller Unit (MCU) that's part of the low-cost, high-performance HCS08 Family of MCUs from NXP Semiconductors.

The following are some of the MC9S08AW32CPUE's standout features:

- CPU: 8-bit HCS08 Central Processor Unit.

- Memory: 32KB Flash read/program/erase over the full operating voltage and temperature.

- Operating Voltage: 1.8 to 3.6 Volts operation.

- Timers: One 6-channel, 16-bit timer interface module (TIM) and one 2-channel, 16-bit timer/pulse-width modulator (TPM).

- Communication: One SCI, one SPI, and one IIC.

- Clock: A frequency-locked-loop (FLL) regulated by an internal or external reference is contained in an internal clock source (ICS) module.

The MC9S08AW32CPUE is widely used in applications like automotive systems, industrial control, consumer devices, thermal & power management systems.

Now, let's consider a simple application scenario where the MC9S08AW32CPUE is used for temperature control in a HVAC system.

1. Power Supply Connection: Connect VDD (Pin 1) to a 3.3V power source and VSS (Pin 32) to ground.

2. Clock Source: If an external crystal is being used, connect it to EXTAL (Pin 7) and XTAL (Pin 8).

3. Temperature Sensor Input: Connect the data output pin of a temperature sensor to any GPIO pin (like PTA0 - Pin 21). The temperature reading from the sensor will be read by this GPIO pin.

4. Control Output: Connect a relay control input (which controls the HVAC system) to another GPIO pin (like PTA1 - Pin 22). This pin will control the relay operation based on the temperature data.

5. Communication: The SCI (PTC2 - Pin 15, PTC3 - Pin 16) can be used for serial communication with other systems if needed.

When designing a circuit with the MC9S08AW32CPUE, consider these important factors:

- Noise Isolation: Make sure there's enough noise isolation, especially for the sensor input pins to get accurate readings.

- Decoupling Capacitors: Use decoupling capacitors close to the power supply pins (VDD, VSS) to filter out any power supply noise.

- Electrostatic Discharge Protection: Make sure to protect the pins of the MCU from Electrostatic Discharge (ESD).

- Thermal Management: Ensure the MCU is working within the recommended temperature range.

For more details about the MCU and its usage, please refer to the datasheet of the MC9S08AW32CPUE.
