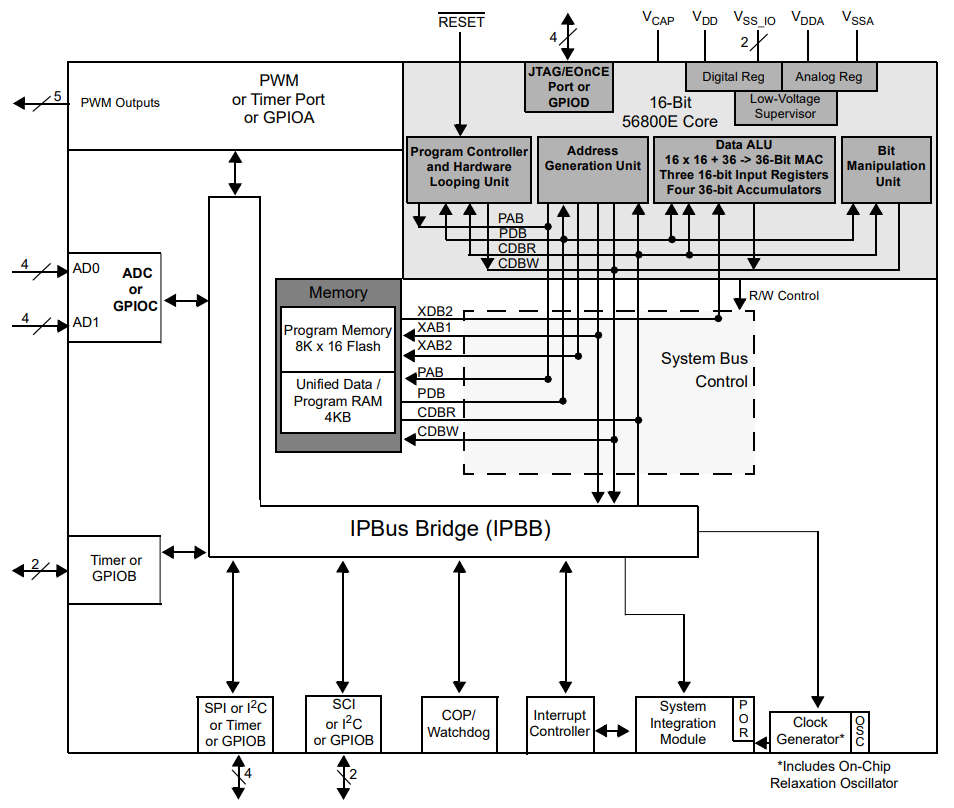

    MC56F8014VFAE Typical application Circuitry

    MC56F8014VFAE

    The MC56F8014VFAE is a digital signal controller (DSC) from the NXP's 56F8000 series. As a DSC, it is a hybrid of a digital signal processor (DSP) and a microcontroller (MCU), meaning it possesses the powerful processing capabilities of a DSP and the system control functions of an MCU.

    Here are some of the features of the MC56F8014VFAE:

    1. Powerful Processing: It blends the power of a DSP and an MCU, making it suitable for compute-intensive applications.

    2. Memory: The MC56F8014VFAE comes with 16KB of flash memory and 4KB of RAM, which can adequately support a range of applications.

    3. Peripheral Integration: It incorporates a host of peripherals such as ADCs, timers, and PWM modules, offering versatility in system design.

    4. Energy Efficiency: This DSC is designed for energy-efficient operation, with different power modes to save power consumption.

    The MC56F8014VFAE can be used in various applications, including power conversion, motor control, and sensor interfacing.

    In a motor control application, the MC56F8014VFAE could be used as follows:

    1. Power Supply (VDD - Pin 6, VSS - Pin 5): Connect the power supply and ground to these pins.

    2. Motor Driving (PWM Output - Pin 16): This pin can be connected to a motor driver circuit, which drives the motor.

    3. Feedback Processing (ADC Input - Pin 21): This pin can be linked to a sensor (like a rotary encoder) on the motor to provide feedback information.

    4. Control Instructions (GPIO - Pin 12): This pin can be connected to a microcontroller or another digital device that provides control signals for the motor operation.

    When designing circuits with MC56F8014VFAE, consider the following:

    - Power Requirements: Ensure the supplied voltage is within the permissible range for the IC.

    - Decoupling Capacitors: Position decoupling capacitors near the power pins to stabilize operation.

    - Thermal Management: Be mindful of potential thermal challenges resulting from continuous operation or high-current conditions.

    For the most accurate details and guidance, it's always crucial to refer to the MC56F8014VFAE datasheet and application notes.
