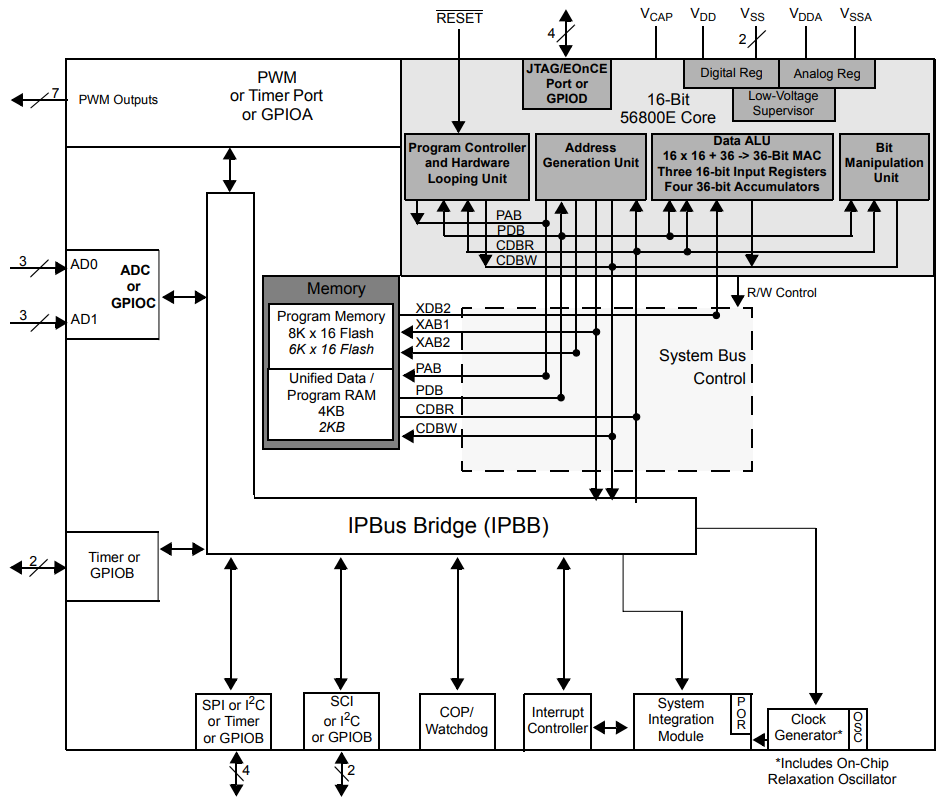

    MC56F8013VFAE Typical application Circuitry

    MC56F8013VFAE

    The MC56F8013VFAE is a member of the 56F8000 series of digital signal controllers (DSCs) from NXP Semiconductor. As a DSC, the MC56F8013VFAE has features and characteristics of both microcontrollers (MCUs) and digital signal processors (DSPs), making it particularly suited for applications requiring digital signal processing and control tasks.

    Key features of the MC56F8013VFAE include:

    1. Processing Capability: It combines the processing power of a DSP and the functionality of an MCU in a single core.

    2. Flash Memory and RAM: It is equipped with 16KB of Flash and 2KB of RAM, providing sufficient memory for a variety of tasks.

    3. Integrated Peripherals: The MC56F8013VFAE comes with a set of peripherals, such as ADC, PWM, and timers, making it a highly versatile component in a system.

    4. Low Power Consumption: The MC56F8013VFAE is designed for low power applications and can operate in several power modes to conserve energy.

    The MC56F8013VFAE is adaptable and may be utilized in a variety of applications, including sensor processing, motor control, and power conversion.

    One such application, a simple motor control application, could use the MC56F8013VFAE in the following manner:

    1. Power and Ground (VDD - Pin 6, VSS - Pin 5): Connect these pins to the power supply and ground respectively.

    2. Motor Control (PWM Output - Pin 16): Connect this pin to a motor driver circuit, which then controls the motor.

    3. Position Feedback (ADC Input - Pin 21): Connect this pin to a sensor, such as a rotary encoder on the motor, to provide feedback on the motor's position.

    4. Control Signal Input (GPIO - Pin 12): Connect this pin to a microcontroller or other digital device that will be used to control the operation of the motor.

    When designing a circuit with the MC56F8013VFAE, consider the following:

    - Power Supply: Ensure the power supply is within the specified voltage range for the IC.

    - Decoupling Capacitors: To ensure reliable functioning, decoupling capacitors should be positioned close to the IC's power pins.

    - Thermal Management: Be aware of potential thermal issues that can arise from continuous operation or high-current conditions.

    Remember, always consult the MC56F8013VFAE datasheet and application notes for the most accurate information and guidelines.
