Name: MC33931EKR2
Brand: NXP USA Inc.
SKU: MC33931EKR2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. MC33931EKR2

Part No.:: MC33931EKR2

Manufacturer:: NXP USA Inc.

Package:: 32-SSOP (0.295, 7.50mm Width) Exposed Pad

Datasheet:: MC33931EKR2.pdf

Description:: IC MOTOR DRIVER 5V-28V 32SOIC

In Stock:: 2511

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC33931EKR2 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
MotorType-Stepper:
-
MotorType-ACDC:
Brushed DC
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (2)
Interface:
Parallel
Technology:
CMOS
StepResolution:
-
Applications:
Automotive
Current-Output:
5A
Voltage-Supply:
5V ~ 28V
Voltage-Load:
5V ~ 28V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

MC33931EKR2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC33931EKR2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC33931EKR2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC33931EKR2 information

Views：

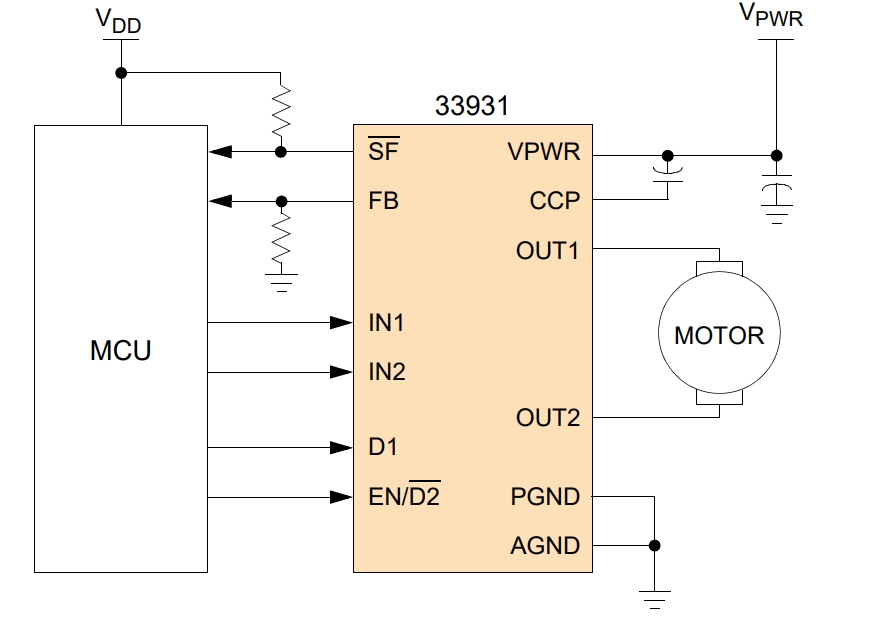

MC33931EKR2 Typical application Circuitry

MC33931EKR2

The MC33931EKR2 is a monolithic H-Bridge Power IC, primarily designed for automotive applications and motor control systems.

Application Scenarios: The MC33931EKR2 is widely used in automotive environments for controlling DC motors, such as in power steering, engine cooling fans, and window lifters. It's also applicable in robotics and industrial control systems.

Key Features: This IC can handle high current loads and is equipped with features like overcurrent protection, thermal shutdown, and under-voltage shutdown. It's capable of operating over a broad temperature range, making it suitable for harsh automotive environments.

Circuit Design Example – Automotive Window Lifter Control:

1. Power Supply Connection: Connect a 12V automotive battery or power source to pin 20 (VBAT) of the MC33931EKR2. This pin provides the power for the H-Bridge.

2. Grounding the IC: Connect pin 1 (GND) of the MC33931EKR2 to the system's ground. This is essential for stable operation and noise reduction.

3. Motor Connection: Attach the motor leads to pins 8 and 13 (OUT1 and OUT2). The MC33931EKR2 drives the motor by switching these outputs.

4. Motor Direction Control Input: To control the motor direction, connect a microcontroller output to pins 3 (IN1) and 4 (IN2) of the MC33931EKR2. The polarity of the voltage supplied to the motor is determined by these pins.

5. PWM Speed Control: Connect a PWM signal from the microcontroller to pin 5 (INH) for speed control of the motor. This pin enables the PWM control of the H-Bridge.

6. Current Sensing Output: Pin 6 (CSOUT) can be used to monitor current and provide feedback on the load situation of the motor when linked to an ADC input of a microcontroller.

7. Enable and Disable the H-Bridge: Connect pin 2 (EN) to a digital output of the microcontroller. Setting this pin high enables the H-Bridge, while low disables it.

8. Voltage Sensing and Protection: Pins 16 and 19 (FS/RST and VDD) are for fault status reporting and under-voltage detection. Connect these to the microcontroller for monitoring the IC's status.

Design Considerations: When designing with the MC33931EKR2, consider the power supply requirements, motor characteristics, control logic for motor direction, PWM frequency for speed control, and current sensing for feedback. It's also important to include protective measures for overcurrent and thermal conditions.

In summary, the MC33931EKR2 is critical in applications like automotive window lifters, where robust motor control is needed. The circuit implementation involves careful planning regarding power supply, motor connections, control interfaces, and safety features for effective and reliable operation.
