ON Semiconductor MC14584BCPG

Part No.:: MC14584BCPG

Manufacturer:: ON Semiconductor

Package:: 14-PDIP

Datasheet:: MC14584BCPG.pdf

Description:: IC INVERT SCHMITT 6CH 1-IN 14DIP

In Stock:: 3539

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC14584BCPG Specifications

Packaging:
Tube
Series:
4000B
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
3V ~ 18V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
8.8mA, 8.8mA
LogicLevel-Low:
1.6V ~ 4.6V
LogicLevel-High:
3.4V ~ 10.5V
MaxPropagationDelay@VMaxCL:
80ns @ 15V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Through Hole

MC14584BCPG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC14584BCPG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC14584BCPG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC14584BCPG information

Views：

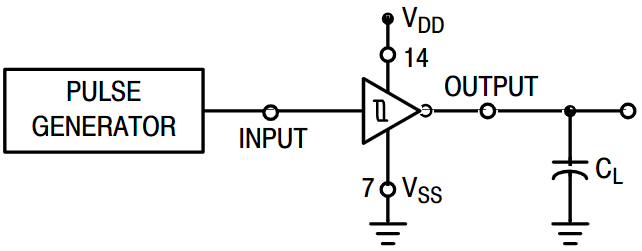

MC14584BCPG Typical application Circuitry

MC14584BCPG

The MC14584BCPG is a CMOS hex Schmitt-trigger inverter. It's designed for use in enhancing noise immunity or achieving wave shaping in digital applications.

1. Power Supply Connections: The MC14584BCPG operates over a wide voltage range. Attach the ground pin to the VSS pin and your positive supply to the VDD pin. Make that the supplied voltage is within the chip's designated range.

2. Input Signals: The chip has six inverters, each with an input and an output. Connect your digital input signals to the input pins. The Schmitt trigger action at the input provides a hysteresis effect, which enhances noise immunity.

3. Output Connections: The outputs provide the inverted state of the inputs. You can connect these to other digital ICs, LEDs for indication, or further processing stages in your circuit.

4. Bypass Capacitor: It's a good practice to place a bypass capacitor (like 0.1 µF) near the power supply pins of the MC14584BCPG. This capacitor helps in filtering out noise from the power supply.

When designing a circuit with the MC14584BCPG, it's crucial to adhere to the datasheet specifications, including maximum ratings for voltage, current, and temperature. Also, consider the propagation delay, which is the time it takes for an input change to reflect at the output. This becomes critical in timing-sensitive applications.

Lastly, ensure proper PCB layout practices to minimize noise and crosstalk, especially if you're working with high-speed signals or in a noise-prone environment.
