What is the Additional Feature ?

Name: MC1413DR2G
Brand: onsemi
SKU: MC1413DR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

onsemi MC1413DR2G

Part No.:: MC1413DR2G

Manufacturer:: onsemi

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MC1413DR2G.pdf

Description:: TRANS 7NPN DARL 50V 0.5A 16SOIC

In Stock:: 2060

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MC1413DR2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
TransistorType:
7 NPN Darlington
Current-Collector(Ic)(Max):
500mA
Voltage-CollectorEmitterBreakdown(Max):
50V
VceSaturation(Max)@IbIc:
1.6V @ 500µA, 350mA
Current-CollectorCutoff(Max):
-
DCCurrentGain(hFE)(Min)@IcVce:
1000 @ 350mA, 2V
Power-Max:
-
Frequency-Transition:
-
OperatingTemperature:
150°C (TJ)
MountingType:
Surface Mount

MC1413DR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MC1413DR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MC1413DR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MC1413DR2G information

Views：

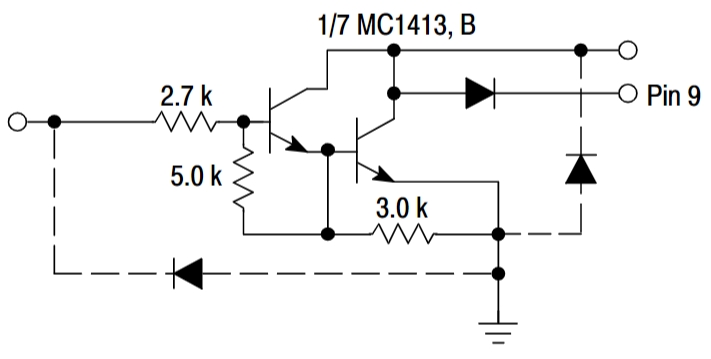

MC1413DR2G Typical application Circuitry

MC1413DR2G

ON Semiconductor designed the MC1413DR2G, a high voltage, high current Darlington transistor array. It is made up of seven NPN Darlington pairs with common-cathode clamp diodes and high-voltage outputs for inductive load switching. The collector-current rating of each Darlington pair is 500 mA, and the device can withstand voltages up to 50V, making it suitable for interfacing with a wide range of higher voltage and current loads in various applications.

Application Scenarios

MC1413DR2G is widely used in applications requiring the control of high-voltage or high-current loads, such as LED arrays, relay drivers, motor controllers, and other actuators. Its integrated clamp diodes make it especially useful for driving inductive loads like solenoids and stepper motors, protecting the circuit from voltage spikes caused by inductive kickback.

Parameter Features

- Seven Darlington Pairs: Each capable of driving a 500 mA load.

- Integrated Clamp Diodes: Provides protection against inductive kickback when driving inductive loads.

- High Voltage Tolerance: Can handle up to 50V across the collector-emitter junction.

- High Current Drive Capability: With a 500 mA maximum drive capacity per channel, this device is ideal for a multitude of applications.

Specific Application Scenario and Circuit Connection

Using MC1413DR2G to drive a stepper motor:

- Input Connections: Connect the input pins (1B, 2B, 3B, 4B) of MC1413DR2G to the output pins of a microcontroller or a stepper motor controller. These inputs control the activation of the Darlington pairs.

- Output to Stepper Motor Coils: Connect the outputs (1C, 2C, 3C, 4C) of MC1413DR2G to the coils of the stepper motor. Ensure that each coil is connected in series with an appropriate power supply voltage, considering the motor's voltage and current requirements.

- Common Emitter Connection: Tie the COM (common emitter) pin of MC1413DR2G to the ground of the power supply used for the motor.

- Power Supply and Grounding: Apply the motor power supply to the VCC pin of the stepper motor, and connect the ground of this power supply to the E pin (Emitter) of MC1413DR2G. Use a separate logic power supply for the microcontroller or stepper motor controller to prevent noise and voltage spikes from affecting the logic circuit.

Design Considerations

When incorporating MC1413DR2G into a circuit, several key factors must be taken into account:

- Power Dissipation: Calculate the total power dissipation in MC1413DR2G based on the load current and ensure adequate heat sinking to maintain thermal stability.

- Inductive Load Driving: Utilize the integrated clamp diodes of MC1413DR2G when driving inductive loads to protect the device from voltage spikes.

- Logic Level Compatibility: Ensure that the logic levels of the control signals from the microcontroller or stepper motor controller are compatible with the input requirements of MC1413DR2G.

- Decoupling Capacitors: Place decoupling capacitors close to the MC1413DR2G power pin to minimize noise and voltage fluctuations in the power supply.

Designing with MC1413DR2G for driving loads like stepper motors involves careful consideration of power dissipation, load characteristics, logic level compatibility, and circuit protection to ensure reliable and efficient operation.
