Name: MBR20200CTH
Brand: onsemi
SKU: MBR20200CTH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

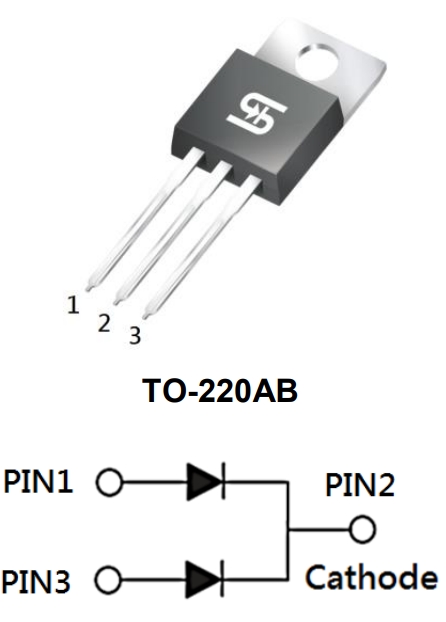

onsemi MBR20200CTH

Part No.:: MBR20200CTH

Manufacturer:: onsemi

Package:: TO-220-3

Datasheet:

Description:: DIODE SCHOTTKY

In Stock:: 3088

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MBR20200CTH Specifications

Packaging:
Bulk
Series:
SWITCHMODE™
ProductStatus:
Obsolete
DiodeConfiguration:
1 Pair Common Cathode
DiodeType:
Schottky
Voltage-DCReverse(Vr)(Max):
200 V
Current-AverageRectified(Io)(perDiode):
10A
Voltage-Forward(Vf)(Max)@If:
900 mV @ 10 A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
ReverseRecoveryTime(trr):
-
Current-ReverseLeakage@Vr:
1 mA @ 200 V
OperatingTemperature-Junction:
-65°C ~ 175°C
MountingType:
Through Hole
