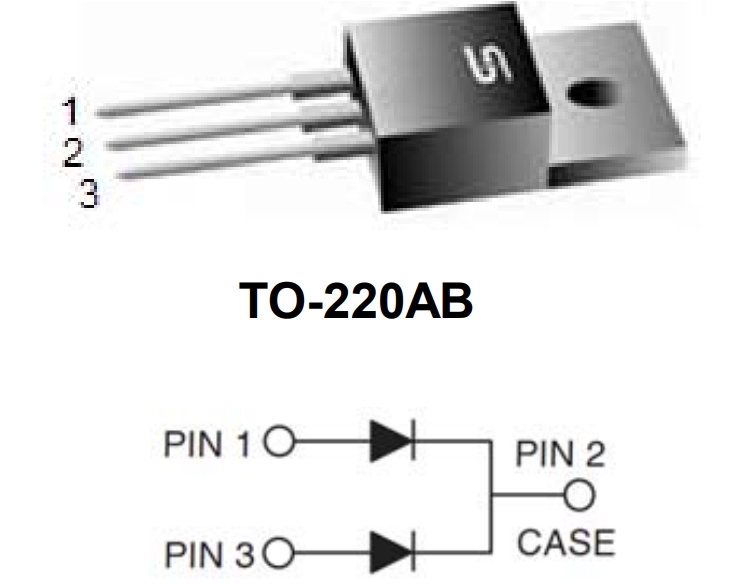

Taiwan Semiconductor Corporation MBR20200CTC0

Part No.:: MBR20200CTC0

Manufacturer:: Taiwan Semiconductor Corporation

Package:: TO-220-3

Datasheet:: MBR20200CTC0.pdf

Description:: DIODE ARRAY SCHOTT 200V TO220AB

In Stock:: 2752

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MBR20200CTC0 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
DiodeConfiguration:
1 Pair Common Cathode
DiodeType:
Schottky
Voltage-DCReverse(Vr)(Max):
200 V
Current-AverageRectified(Io)(perDiode):
20A
Voltage-Forward(Vf)(Max)@If:
1.23 V @ 20 A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
ReverseRecoveryTime(trr):
-
Current-ReverseLeakage@Vr:
100 µA @ 200 V
OperatingTemperature-Junction:
-55°C ~ 150°C
MountingType:
Through Hole

MBR20200CTC0 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MBR20200CTC0 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MBR20200CTC0 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MBR20200CTC0 information

Views：

MBR20200CTC0 Typical application Circuitry

MBR20200CTC0

The MBR20200CTC0 is a Schottky barrier rectifier, widely appreciated in power electronics for its high efficiency and fast switching capabilities. Applications like as DC-DC converters, power management systems, and switch-mode power supply (SMPS) greatly benefit from this component. The MBR20200CTC0 is notable for its high current capacity of up to 20A and a maximum repetitive reverse voltage of 200V. Its low forward voltage drop enhances the efficiency of the overall circuit.

Application in a Switch-Mode Power Supply (SMPS)

1. Rectification Stage Incorporation: In an SMPS circuit, the MBR20200CTC0 plays a critical role in the rectification stage. It's connected with each of its two anodes tied to the AC input lines, while the combined cathode provides the DC output. This configuration ensures efficient AC to DC conversion.

2. Thermal Management Strategy: Considering the high current capability of the MBR20200CTC0, it's vital to address thermal issues adequately. Employing a heat sink or ensuring good ventilation around the MBR20200CTC0 helps in dissipating heat effectively.

3. Integrating a Smoothing Capacitor: After the MBR20200CTC0 rectifies the AC to DC, placing a large-value capacitor across its output is crucial for smoothing the DC voltage. This step reduces ripple, crucial for the stable operation of the power supply.

4. Utilization as a Freewheeling Diode: The MBR20200CTC0 can also function as a freewheeling diode in inductive elements of the SMPS. This arrangement is crucial for managing inductive kickbacks and ensuring smooth current flow during the off cycles of the switch.

5. Implementing Reverse Polarity Protection: The MBR20200CTC0's ability to withstand high reverse voltages makes it suitable for reverse polarity protection in circuits, safeguarding sensitive components from potential damage.

Make sure the rectifier's specs match the voltage and current requirements of the circuit when constructing with the MBR20200CTC0. Additionally, appropriate thermal management is crucial to maintain the efficiency and reliability of the MBR20200CTC0. With its fast switching and low voltage drop, the MBR20200CTC0 is an excellent choice for efficient and robust power conversion applications.
