Name: MBR20100CTC0
Brand: Taiwan Semiconductor Corporation
SKU: MBR20100CTC0
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Taiwan Semiconductor Corporation MBR20100CTC0

Part No.:: MBR20100CTC0

Manufacturer:: Taiwan Semiconductor Corporation

Package:: TO-220-3

Datasheet:: MBR20100CTC0.pdf

Description:: DIODE ARRAY SCHOTT 100V TO220AB

In Stock:: 2680

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MBR20100CTC0 Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
DiodeConfiguration:
1 Pair Common Cathode
DiodeType:
Schottky
Voltage-DCReverse(Vr)(Max):
100 V
Current-AverageRectified(Io)(perDiode):
20A
Voltage-Forward(Vf)(Max)@If:
950 mV @ 20 A
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
ReverseRecoveryTime(trr):
-
Current-ReverseLeakage@Vr:
100 µA @ 100 V
OperatingTemperature-Junction:
-55°C ~ 150°C
MountingType:
Through Hole

MBR20100CTC0 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MBR20100CTC0 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MBR20100CTC0 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MBR20100CTC0 information

Views：

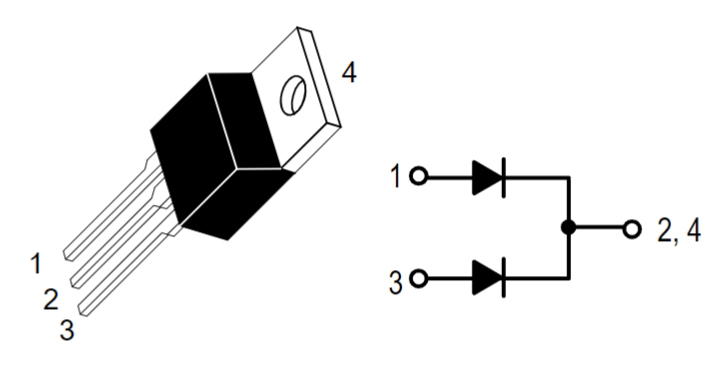

MBR20100CTC0 Typical application Circuitry

MBR20100CTC0

MBR20100CTC0 is a type of Schottky barrier rectifier that is designed for high-efficiency, high-frequency power applications.

Application Scenarios

MBR20100CTC0 is commonly used in switch-mode power supplies (SMPS), DC-DC converters, automotive charging systems, power inverters, and as freewheeling diodes in motor control circuits. Its high current capability and low power loss characteristics make it ideal for high-efficiency power conversion applications.

Parameter Features

- Dual Diode Configuration: Incorporates two Schottky diodes in a common cathode arrangement, facilitating efficient full-wave rectification or dual independent rectification paths.

- High Current Capability: Capable of handling forward currents up to 20A, making it suitable for high-power applications.

- Low Forward Voltage Drop: This feature lowers power losses and boosts efficiency by providing a low forward voltage drop, usually approximately 0.82V at 10A.

- High Reverse Voltage: Rated for a maximum repetitive reverse voltage of 100V, allowing it to be used in high-voltage applications.

Specific Application Scenario and Circuit Connection

Implementing MBR20100CTC0 in a Solar Power Charging System:

- Solar Panel Connection: Connect the positive output from the solar panel to the anodes of MBR20100CTC0 (pins 1 and 3). This setup allows for the rectification of the varying DC output from the solar panels.

- Common Cathode to Battery: The common cathode (pin 2) of MBR20100CTC0 is connected to the positive terminal of the battery or the input of the charge controller. This connection ensures that the rectified current flows correctly into the battery or charge controller for charging.

- Blocking Diode Function: MBR20100CTC0 acts as a blocking diode, preventing the backflow of current from the battery to the solar panels during low light conditions or at night.

- Heat Management: Attach a heat sink to MBR20100CTC0 to efficiently dissipate the heat generated during operation, especially important under high current charging conditions.

Design Considerations

When designing circuits with MBR20100CTC0, it's essential to consider the following:

- Thermal Management: Proper heat sinking is crucial to maintain the thermal stability of MBR20100CTC0, ensuring reliable operation under high current conditions.

- Reverse Voltage Protection: Ensure that the reverse voltage does not exceed the specified maximum to prevent diode failure and maintain circuit integrity.

- PCB Layout: Reduce parasitic inductances and boost efficiency by optimizing the PCB layout to decrease trace lengths between the MBR20100CTC0 and the load.

- Surge Current Handling: Account for potential surge currents from the solar panels and ensure that MBR20100CTC0 can handle these without damage.

Incorporating MBR20100CTC0 into solar power charging systems requires careful attention to thermal management, voltage and current ratings, PCB layout optimization, and surge current handling to ensure efficient, reliable operation in energy conversion applications.
