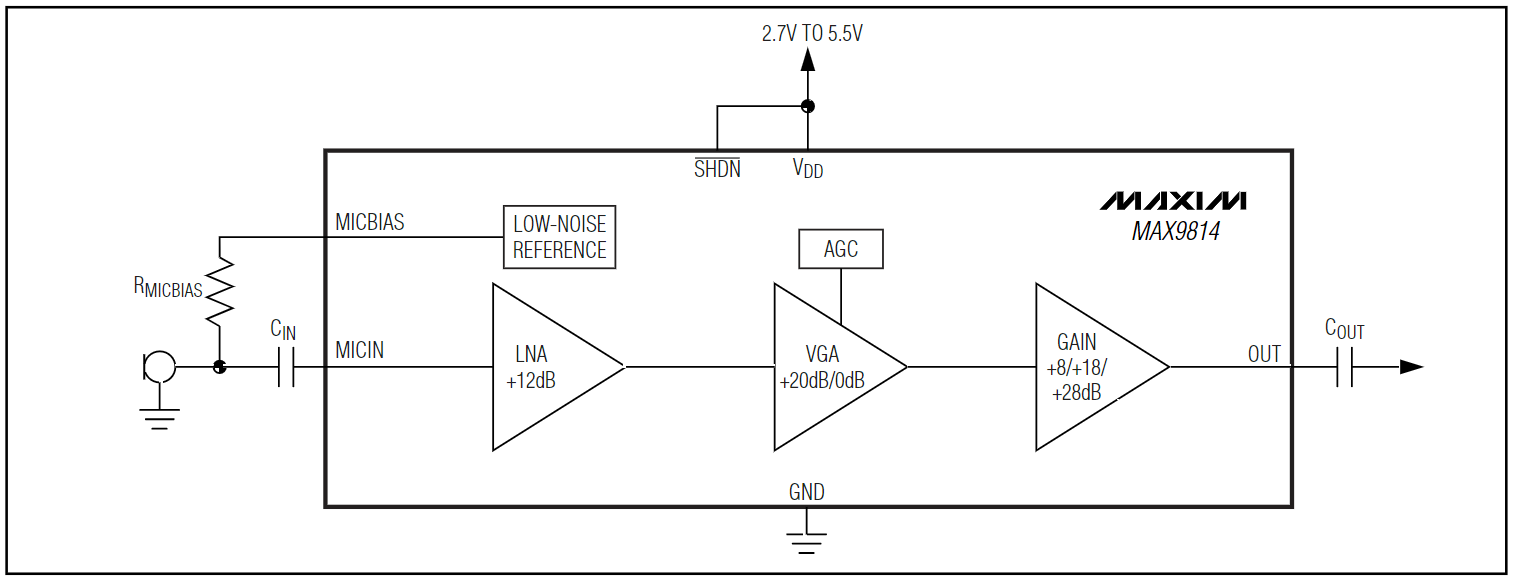

MAX9814ETD+TG51 Typical application Circuitry

MAX9814ETD+TG51

The MAX9814ETD+TG51 is part of Maxim Integrated's lineup of audio-focused integrated circuits, specifically tailored as a microphone amplifier featuring Automatic Gain Control (AGC). This particular model is crafted for diverse audio applications, such as in portable recording devices, voice recognition systems, and other audio capture technologies, where maintaining consistent audio levels is a priority.

1. Power Supply Integration: The MAX9814ETD+TG51 operates effectively within a 2.7V to 5.5V range. Connecting the VCC pin to a suitable power source is critical, and it's advisable to use decoupling capacitors close to this pin for noise reduction and voltage stabilization.

2. Input and Output Arrangement: The IN pin of the MAX9814ETD+TG51 is where the microphone or other audio input is connected. The amplified audio signal is then output from the OUT pin. These connections need to be carefully made in accordance with the guidelines set out in the chip's datasheet to ensure optimal audio fidelity.

3. Configuring Gain and AGC: The gain of the MAX9814ETD+TG51 is adjustable through the GAIN0 and GAIN1 pins, which must be connected appropriately for the required amplification level. The A/R pin controls the AGC, allowing for the fine-tuning of attack and release times based on the audio application's needs.

4. Bypass and Shutdown Functionality: The BYP pin is available for situations where bypassing the AGC is desired, and the SHDN pin can be used to put the chip in a low-power shutdown mode when not in use. Understanding and correctly implementing these functions is vital for energy-efficient and versatile circuit designs.

5. Grounding for Stability: Proper grounding, achieved by connecting the GND pin to the system's ground, is essential for minimizing noise and ensuring stable operation of the MAX9814ETD+TG51.

Incorporating the MAX9814ETD+TG51 into an electronic setup necessitates attention to detail. This includes ensuring a stable power supply, accurately configuring the input and output, adjusting the gain and AGC settings as per requirements, and utilizing the bypass and shutdown features as needed. Moreover, effective grounding is crucial to achieve the desired audio performance. The datasheet for the MAX9814ETD+TG51 provides comprehensive information on each pin's role and best practices for circuit design, making it an invaluable resource for achieving high-quality audio results in various applications.
