Name: MAX7219CWG
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX7219CWG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated MAX7219CWG

Part No.:: MAX7219CWG

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 24-SOIC (0.295, 7.50mm Width)

Datasheet:: MAX7219CWG.pdf

Description:: IC DRVR 7 SEGMNT 8 DIGIT 24SOIC

In Stock:: 3206

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX7219CWG Specifications

Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
DisplayType:
LED
Configuration:
7 Segment + DP
Interface:
4-Wire Serial
DigitsorCharacters:
8 Digits
Current-Supply:
330 mA
Voltage-Supply:
4V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

MAX7219CWG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX7219CWG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX7219CWG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX7219CWG information

Views：

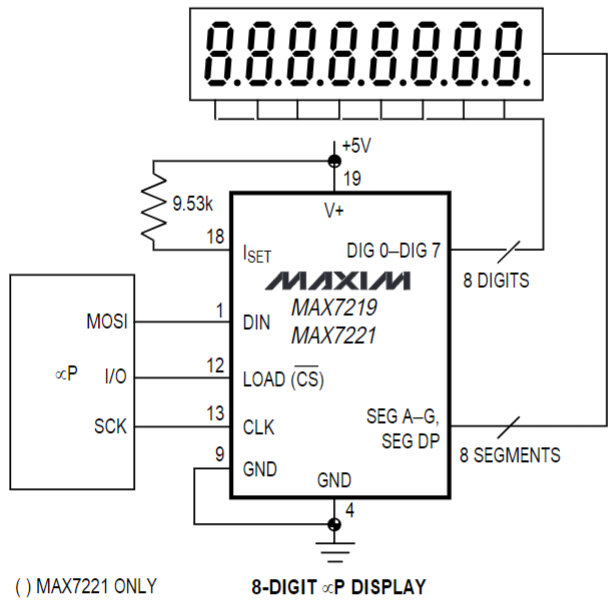

MAX7219CWG Typical application Circuitry

MAX7219CWG

The MAX7219CWG is a member of Maxim Integrated's popular MAX7219 line of serial input/output common-cathode display drivers. This chip is particularly made to power bar-graph displays, 64 individual LEDs, and 7-segment numerical LED displays with up to 8 digits. Key features include low power operation, integrated BCD code-B decoder, multiplex scan circuitry, and LED intensity control, making it a popular choice for applications requiring dynamic visual output with minimal processor overhead.

1. VCC and GND Pins: The GND pin is linked to system ground, while the supply voltage is provided to the VCC pin. These connections are fundamental for powering the MAX7219CWG.

2. DIG0-DIG7 (Digit Pins): These pins are responsible for driving individual digits or rows in a matrix. Connect each of these to the common cathode of each 7-segment display or matrix row.

3. SEG A-G and SEG DP (Segment Pins): These output pins control individual segments of the LED display, including the decimal point. They are connected to the respective segments of each display.

4. ISET Pin: This pin sets the current for all LEDs. Connect a resistor between this pin and ground to set the LED current.

5. LOAD (CS) Pin: This pin is used to load data into the chip. Data is sent serially via the DIN pin and latched with a high-to-low transition on this LOAD pin.

6. DIN (Data In) Pin: Serial data is input through this pin, typically connected to a microcontroller's output.

7. DOUT (Data Out) Pin: This pin outputs serial data to the next MAX7219CWG in a daisy-chain setup. It's usually left unconnected if only one chip is used.

8. CLK (Clock) Pin: The CLK pin receives the clock signal, synchronizing data transmission to and from the microcontroller.

When integrating the MAX7219CWG into a circuit, it's important to follow the datasheet precisely, particularly concerning the ISET resistor value, which determines LED brightness. Additionally, bypass capacitors are recommended on the power supply line to ensure stable operation. The MAX7219CWG is especially useful in projects requiring dynamic LED displays with minimal wiring complexity, such as digital clocks, temperature displays, or counter readouts.
