Analog Devices Inc./Maxim Integrated MAX7219CNG

Part No.:: MAX7219CNG

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 24-DIP (0.300, 7.62mm)

Datasheet:: MAX7219CNG.pdf

Description:: IC DRVR 7 SEGMENT 8 DIGIT 24DIP

In Stock:: 3114

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX7219CNG Specifications

Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
DisplayType:
LED
Configuration:
7 Segment + DP
Interface:
4-Wire Serial
DigitsorCharacters:
8 Digits
Current-Supply:
330 mA
Voltage-Supply:
4V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

MAX7219CNG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX7219CNG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX7219CNG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX7219CNG information

Views：

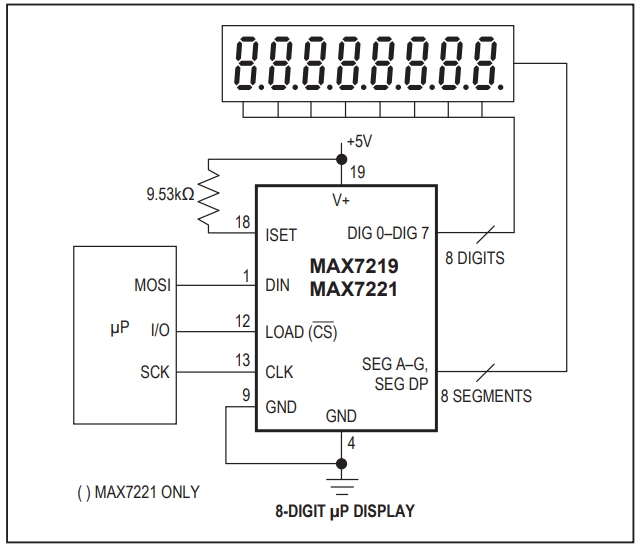

MAX7219CNG Typical application Circuitry

MAX7219CNG

The common-cathode display driver MAX7219CNG is a small, serial input/output device. Its purpose is to operate and manage 64 individual LEDs, bar-graph displays, and 7-segment LED displays with up to 8 digits. The MAX7219CNG's capabilities to regulate and dim each LED separately, enable a serial interface, and lessen the need for extra components are some of its key advantages.

Application in Digital Clock Displays:

The MAX7219CNG is often used in digital clock displays, where it manages multiple 7-segment LED displays to show time.

1. Power Supply Connections: Connect the V+ pin (pin 19) of the MAX7219CNG to a 5V power supply. This supplies power to the chip. Additionally, connect a 10µF capacitor between the V+ pin and ground to stabilize the voltage supply.

2. Grounding the Chip: The GND pin (pin 4) of the MAX7219CNG should be connected to the system's ground.

3. Connecting the Display: Connect the DIG0-DIG7 pins (pins 1, 2, 6, 7, 20-23) of the MAX7219CNG to the common cathode pins of the 7-segment LED displays. Each pin controls one digit of the display.

4. Data Input and Output: Connect the DIN pin (pin 1) to the microcontroller's data output for sending data to the MAX7219CNG. Connect the DOUT pin (pin 24) to the DIN pin of the next MAX7219CNG chip if multiple chips are used.

5. Serial Interface Setup: Connect the LOAD (CS) pin (pin 12) and the CLK pin (pin 13) of the MAX7219CNG to the respective control and clock output pins on the microcontroller. This setup enables serial communication.

Essential Circuit Design Considerations:

When incorporating the MAX7219CNG into a digital clock display circuit, several key aspects should be considered:

1. Stable Power Supply: A stable power supply with appropriate filtering capacitors is crucial for the reliable operation of the MAX7219CNG.

2. Controlling LED Brightness: Integrate a resistor between the ISET pin (pin 18) and ground to set the current for the LEDs, thereby controlling their brightness.

3. Serial Communication Reliability: Ensure reliable serial communication between the microcontroller and the MAX7219CNG, especially if daisy-chaining multiple MAX7219CNG chips.

4. PCB Layout and Noise Minimization: Optimize the PCB layout to minimize noise and ensure short, direct connections to the LED display to prevent voltage drops and signal integrity issues.

In summary, the MAX7219CNG is highly effective in digital clock display applications, providing efficient control of 7-segment LED displays. Key considerations include ensuring a stable power supply, controlling LED brightness, maintaining reliable serial communication, and optimizing PCB layout for noise reduction, to fully utilize the capabilities of the MAX7219CNG in complex display systems.
