Analog Devices Inc./Maxim Integrated MAX6675ISA

Part No.:: MAX6675ISA

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX6675ISA.pdf

Description:: IC CONV THERMO TO DIGITAL 8SOIC

In Stock:: 5965

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX6675ISA Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
Type:
Thermocouple Conditioner
InputType:
Logic
OutputType:
Logic
Current-Supply:
1.5 mA
OperatingTemperature:
-20°C ~ 85°C
MountingType:
Surface Mount

MAX6675ISA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX6675ISA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX6675ISA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX6675ISA information

Views：

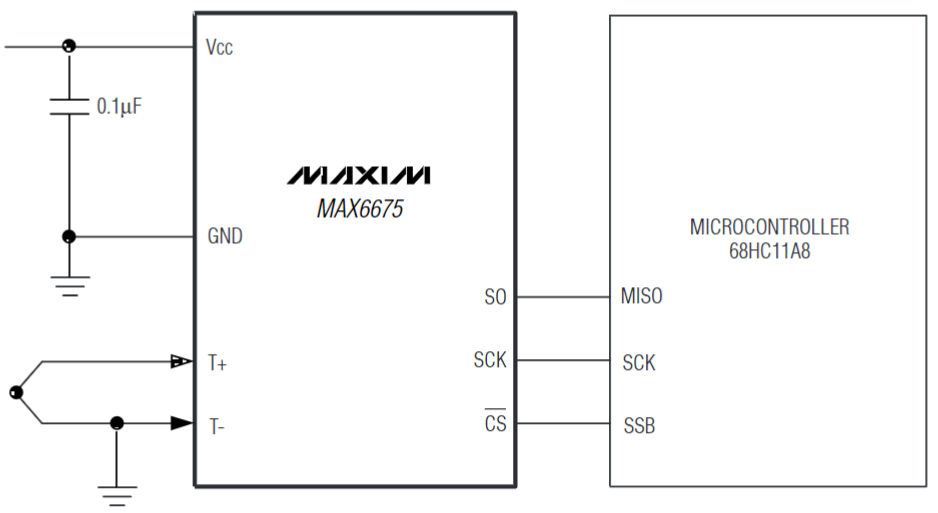

MAX6675ISA Typical application Circuitry

MAX6675ISA

The MAX6675ISA is part of Maxim Integrated's MAX6675 series, known for its capabilities in temperature sensing and data conversion. This series specifically features thermocouple-to-digital converters, which are widely used for temperature measurement applications. The MAX6675ISA interfaces directly with a K-type thermocouple and provides a digital output corresponding to the measured temperature.

1. VCC (Power Supply) Pin: This pin powers the MAX6675ISA. It typically operates with a supply voltage in the range of 3.0V to 5.5V. For an accurate temperature measurement, it is imperative to guarantee a consistent power supply to this pin.

2. GND (Ground) Pin: The GND pin and the system's ground are connected. This common ground is essential for the proper functioning of the device and for accurate data conversion.

3. SO (Serial Output) Pin: The SO pin is used to output the temperature data in a serial digital format. To read the temperature data, this pin can be linked to a microcontroller or other digital interface.

4. SCK (Serial Clock) Pin: This pin receives the clock signal from an external microcontroller or clock source. The SO line's data transfer is synchronized via the SCK pin.

5. CS (Chip Select) Pin: The CS pin is a control line used to select the MAX6675ISA when multiple devices are connected to the same serial bus. Pulling this pin low enables the MAX6675ISA, allowing it to start data conversion and communication.

6. T+ and T- (Thermocouple Inputs) Pins: These pins are where the thermocouple wires are connected. T+ is for the positive thermocouple lead, and T- is for the negative lead. Correct connection of the thermocouple is critical for accurate temperature measurement.

In summary, the MAX6675ISA is a thermocouple-to-digital converter that requires connections for power (VCC), ground (GND), digital data output (SO), clock input (SCK), chip select (CS), and thermocouple inputs (T+, T-). Proper setup and connection of these pins are essential for accurate temperature measurement and data communication. For more detailed information on pin configurations and applications, it's advisable to refer to the datasheet of the MAX6675ISA.
