What is the Additional Feature ?

Name: MAX485ESA+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX485ESA+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated MAX485ESA+

Part No.:: MAX485ESA+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX485ESA+.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3530

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX485ESA+ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
70 mV
DataRate:
2.5Mbps
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX485ESA+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX485ESA+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX485ESA+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX485ESA+ information

Views：

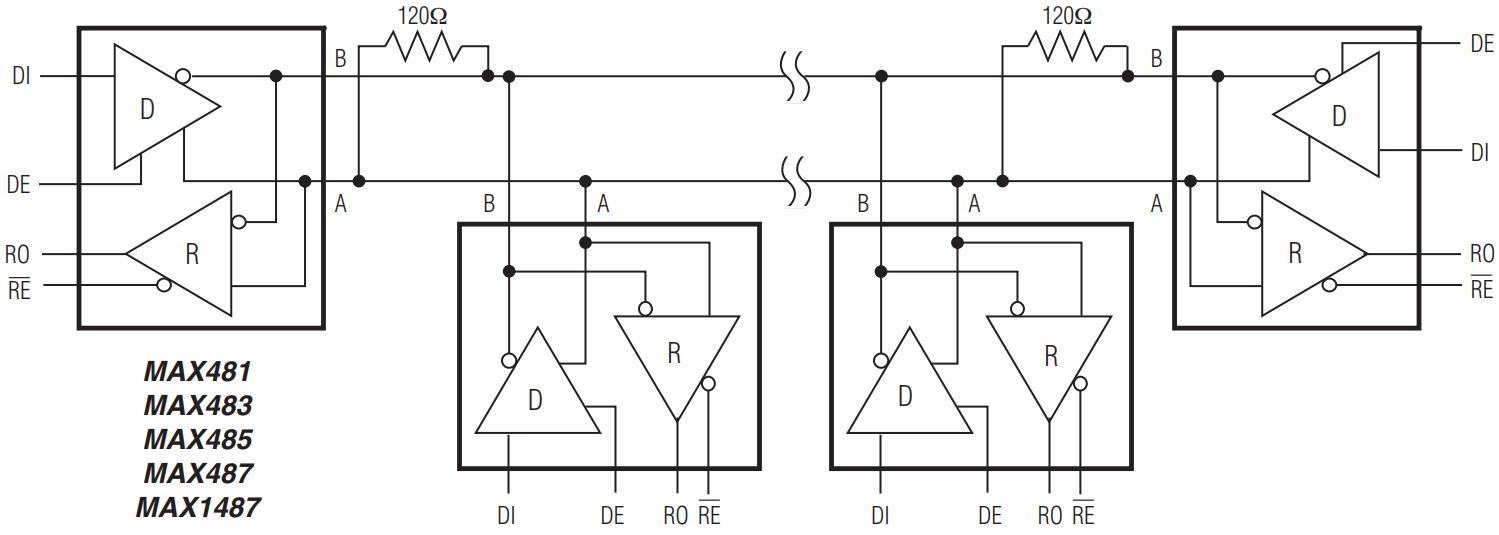

MAX485ESA+ Typical application Circuitry

MAX485ESA+

The MAX485ESA+ is a member of Maxim Integrated's MAX485 family of transceivers, designed specifically for RS-485 and RS-422 communication protocols. This component is renowned for its low power requirements and limited slew-rate drivers, which are instrumental in minimizing electromagnetic interference (EMI) and signal reflection, especially in environments with long cable distances.

1. Power Supply Connection (VCC and GND): The VCC pin of the MAX485ESA+ should be connected to a +5V power supply. Ground (GND) establishes the reference point for the power supply and signal levels.

2. Data Transmission and Reception (DI and RO): For transmitting data, the DI (Driver Input) pin accepts TTL/CMOS input signals. When the MAX485ESA+ is in receive mode, the received RS-485 data is outputted through the RO (Receiver Output) pin.

3. Control Pins (DE and RE): These pins manage the operation modes of the MAX485ESA+. The DE (Driver Enable) pin activates the driver when set high, allowing for data transmission. Conversely, the RE (Receiver Enable) pin, when set low, enables the receiver for data reception. These pins offer flexibility in switching between transmit, receive, and idle states.

4. Differential Communication Lines (A and B): Pins A and B are the differential line connections for the RS-485 network. Pin A represents the non-inverting line, while Pin B is the inverting line. These connections are essential for the balanced nature of RS-485 communication.

5. RS-485 Network Ground Reference (Y, Z, or GND): A shared ground reference between the MAX485ESA+ and other devices on the RS-485 network is critical for maintaining signal integrity and reliable communication.

6. Termination and Biasing (Optional): Depending on network configuration, termination resistors (typically 120 ohms) between A and B might be required at the ends of the network for impedance matching. Additionally, biasing resistors can be used to ensure a known idle bus state.

In summary, the MAX485ESA+ serves as a robust and efficient solution for RS-485 and RS-422 communication networks. It is particularly suitable for applications requiring long-distance communication with high noise immunity, such as in industrial and commercial settings. Proper implementation of the MAX485ESA+ in a circuit demands a careful consideration of network parameters, including cable length, topology, and node count.

MAX485ESA+ FAQ

1. How to order MAX485ESA+ on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that MAX485ESA+ is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the MAX485ESA+. All suppliers must pass our qualification reviews before they can publish their products including MAX485ESA+ on icwhale.com; we pay more attention to the channels and quality of MAX485ESA+ products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the MAX485ESA+ price and inventory displayed accurate?

The price and inventory of MAX485ESA+ fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of MAX485ESA+?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MAX485ESA+ we delivered, we will accept the replacement or return of the MAX485ESA+ only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of MAX485ESA+.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
