Texas Instruments MAX3232IDE4

Part No.:: MAX3232IDE4

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX3232IDE4.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SOIC

In Stock:: 2717

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3232IDE4 Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Last Time Buy
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
300 mV
DataRate:
250kbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX3232IDE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3232IDE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3232IDE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3232IDE4 information

Views：

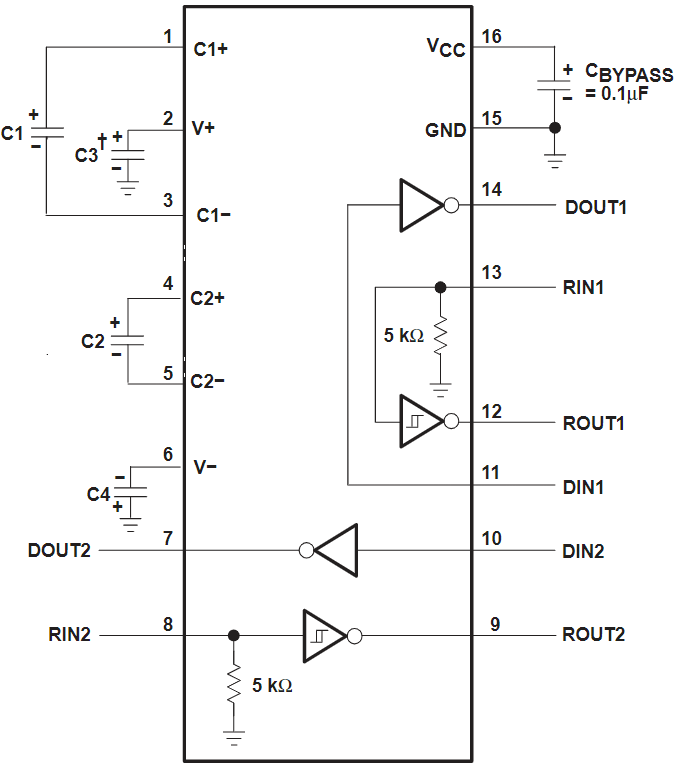

MAX3232IDE4 Typical application Circuitry

MAX3232IDE4

The MAX3232IDE4 belongs to the MAX3232 series, a line of RS-232 transceivers developed by Maxim Integrated. These transceivers are designed to interface between TTL/CMOS logic levels and RS-232 standard communication levels, providing reliable data transmission for applications in telecommunications, data acquisition systems, and industrial control interfaces. Because of its low voltage functioning, the MAX3232IDE4 is especially well-suited for battery-powered and portable systems where power efficiency is crucial.

1. Power Supply Input (VCC): The MAX3232IDE4 is powered through the VCC pin, which typically supports a voltage range from 3.0V to 5.5V. This wide range allows the device to be adaptable to various system voltages, making it versatile for integration into different designs. The power supply should be stable and clean to ensure the transceiver operates optimally.

2. Ground Connection (GND): The GND pin provides the ground reference for the device. It's essential to establish a solid connection to the system's ground to maintain the integrity of data communication and ensure the transceiver's stable operation.

3. RS-232 Communication Ports (T1OUT, R1IN, T2OUT, R2IN): The device includes two driver outputs (T1OUT, T2OUT) and two receiver inputs (R1IN, R2IN) for RS-232 communication. These pins connect to the RS-232 interface, enabling the MAX3232IDE4 to transmit and receive RS-232 signals and support full-duplex communication.

4. TTL/CMOS Logic Interface (T1IN, R1OUT, T2IN, R2OUT): The TTL/CMOS logic level inputs (T1IN, T2IN) and outputs (R1OUT, R2OUT) facilitate interfacing with the system's microcontroller or digital logic. Signals at TTL/CMOS levels inputted into T1IN and T2IN are converted to RS-232 levels for transmission, while R1OUT and R2OUT output TTL/CMOS levels corresponding to received RS-232 signals.

5. Charge Pump Capacitors (C1+, C1-, C2+, C2-): The MAX3232IDE4 uses a charge pump circuit to generate RS-232 voltage levels from the single supply voltage. External capacitors connected to C1+, C1-, C2+, and C2- are essential for the charge pump's operation, allowing the device to produce RS-232 compliant signal levels without an additional power supply.

6. Decoupling for Power Supply Stability (VCC, GND): Placing decoupling capacitors near the VCC and GND pins is recommended to enhance the power supply stability of the MAX3232IDE4. These capacitors help to smooth out voltage fluctuations and transient spikes on the power supply line, contributing to the reliable performance of the transceiver.

7. ESD Protection and Signal Integrity (RS-232 Ports): To enhance the durability of the MAX3232IDE4 and protect connected devices from electrostatic discharges, additional protection measures such as ESD protection diodes on the RS-232 communication ports can be implemented.

Integrating the MAX3232IDE4 into a communication system requires careful attention to power supply management, signal interfacing, charge pump configuration, and protective measures to leverage the transceiver's capabilities fully. The MAX3232 series, with the MAX3232IDE4 as a key variant, exemplifies Maxim Integrated's expertise in providing high-quality communication solutions that meet the needs of modern electronic systems, ensuring effective and dependable data exchange.
