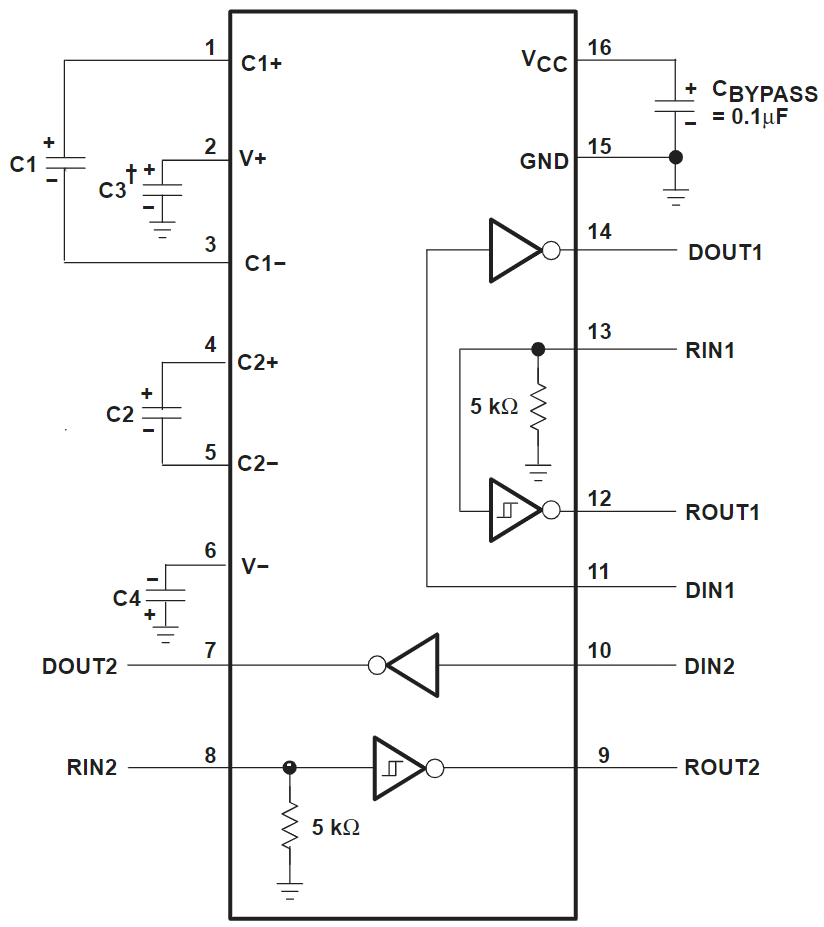

MAX3232ESE+TG035 Typical application Circuitry

MAX3232ESE+TG035

The MAX3232ESE+TG035 is a specific model within the MAX3232 series of integrated circuits, known for their capability in converting signal levels between RS-232 and TTL (Transistor-Transistor Logic) standards. This series, including the MAX3232ESE+TG035, is integral in serial communication applications, facilitating the connection between devices like microcontrollers and RS-232 compliant devices such as computer serial ports.

1. Power Supply Connection: The MAX3232ESE+TG035 is designed for operation with a supply voltage that typically ranges between 3.0V and 5.5V. The V_CC pin, usually pin 16, is where the positive supply voltage is connected, while the ground (GND) connection is made at pin 15.

2. Capacitor Configuration: The chip requires four external capacitors, typically of 0.1 μF each, for its voltage conversion process. These capacitors should be connected to the pins C1+ (pin 1), C1- (pin 2), C2+ (pin 3), and C2- (pin 4), which are integral to the internal charge pump mechanism of the MAX3232ESE+TG035.

3. RS-232 Driver and Receiver Connections: The MAX3232ESE+TG035 includes two line drivers and two line receivers. The TTL-level inputs for the drivers are connected to T1IN (pin 11) and T2IN (pin 10), with the RS-232 level outputs at R1OUT (pin 14) and R2OUT (pin 7). Conversely, the RS-232 inputs for the receivers are R1IN (pin 13) and R2IN (pin 8), which are then converted to TTL outputs at T1OUT (pin 12) and T2OUT (pin 9).

4. Optional Functionalities: Depending on the specific application, the MAX3232ESE+TG035 might also feature pins for enabling or disabling the drivers or receivers.

It's critical to reference the datasheet for the MAX3232ESE+TG035 for accurate pinout information and specific connection details, as variations may exist between different package types. The MAX3232ESE+TG035 is particularly suitable for applications requiring low-voltage operation, such as in battery-powered or portable devices, while still maintaining the necessary RS-232 voltage levels for reliable communication.
