MAX3232ESE+G035 information

Views：

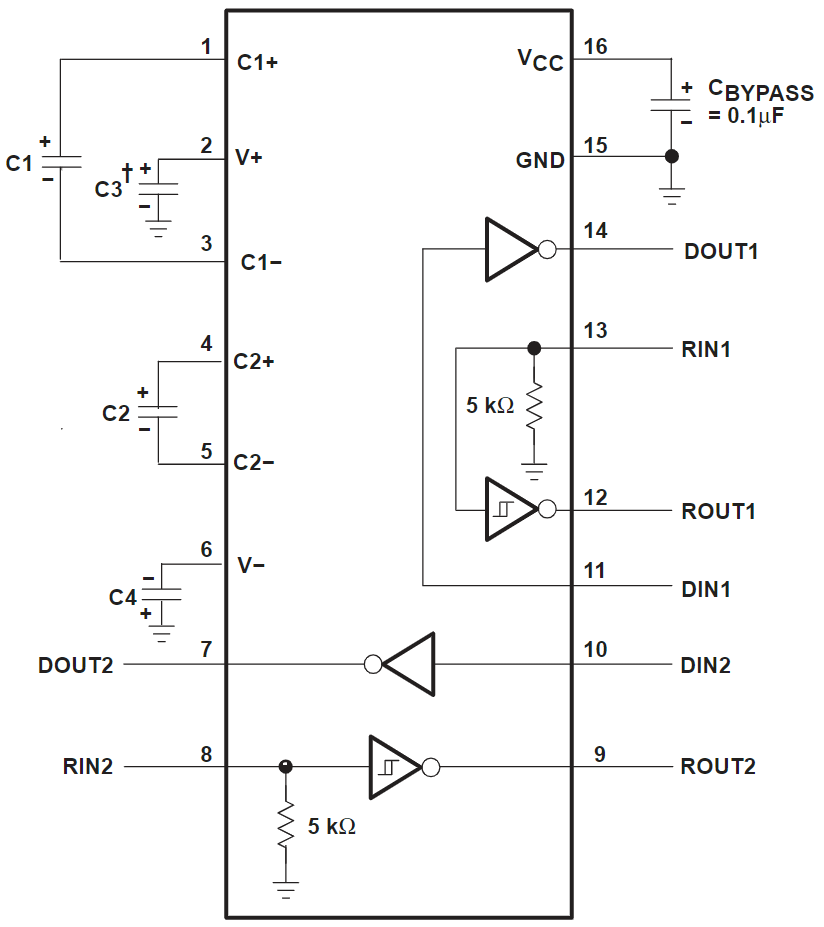

MAX3232ESE+G035 Typical application Circuitry

MAX3232ESE+G035

The MAX3232ESE+G035 is a specific model in the MAX3232 series of integrated circuits. This series is prominently known for its ability to facilitate signal level translation between RS-232 and TTL (Transistor-Transistor Logic) standards. The MAX3232ESE+G035, like its counterparts in the MAX3232 line, is often utilized in applications that require serial communication, enabling connectivity between TTL logic levels, commonly found in microcontrollers, and RS-232 standard devices, such as computer serial ports.

1. Power Supply Configuration: This chip is designed for operation with a power supply ranging from 3.0V to 5.5V. The power is supplied to the V_CC pin, generally pin 16, while the ground connection is established through the GND pin, typically pin 15.

2. Capacitor Setup: The MAX3232ESE+G035 relies on four external capacitors, each with a recommended value of 0.1 μF. These capacitors are connected to the C1+ (pin 1), C1- (pin 2), C2+ (pin 3), and C2- (pin 4) pins, critical to the chip's internal charge pump functionality.

3. RS-232 Driver and Receiver Connections: The device contains two line drivers and two line receivers. The TTL-level inputs for these drivers are connected to T1IN (pin 11) and T2IN (pin 10), and their RS-232 level outputs are at R1OUT (pin 14) and R2OUT (pin 7). Inversely, the RS-232 inputs for the receivers are R1IN (pin 13) and R2IN (pin 8), with TTL-level outputs at T1OUT (pin 12) and T2OUT (pin 9).

4. Optional Functional Pins: The MAX3232ESE+G035 may also feature additional pins for optional functionalities such as enabling or disabling the drivers or receivers, tailored for specific application needs.

For accurate circuit implementation using the MAX3232ESE+G035, it's essential to refer to the datasheet for precise pin configurations and detailed connection instructions. This model is particularly valued for its low-voltage operation capability, making it a preferred choice for battery-powered and portable applications, while still maintaining the necessary RS-232 voltage levels for reliable serial communication.
