Texas Instruments MAX3232EIPWRG4

Part No.:: MAX3232EIPWRG4

Manufacturer:: Texas Instruments

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: MAX3232EIPWRG4.pdf

Description:: IC TRANSCEIVER FULL 2/2 16TSSOP

In Stock:: 3869

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3232EIPWRG4 Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
300 mV
DataRate:
250kbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX3232EIPWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3232EIPWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3232EIPWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3232EIPWRG4 information

Views：

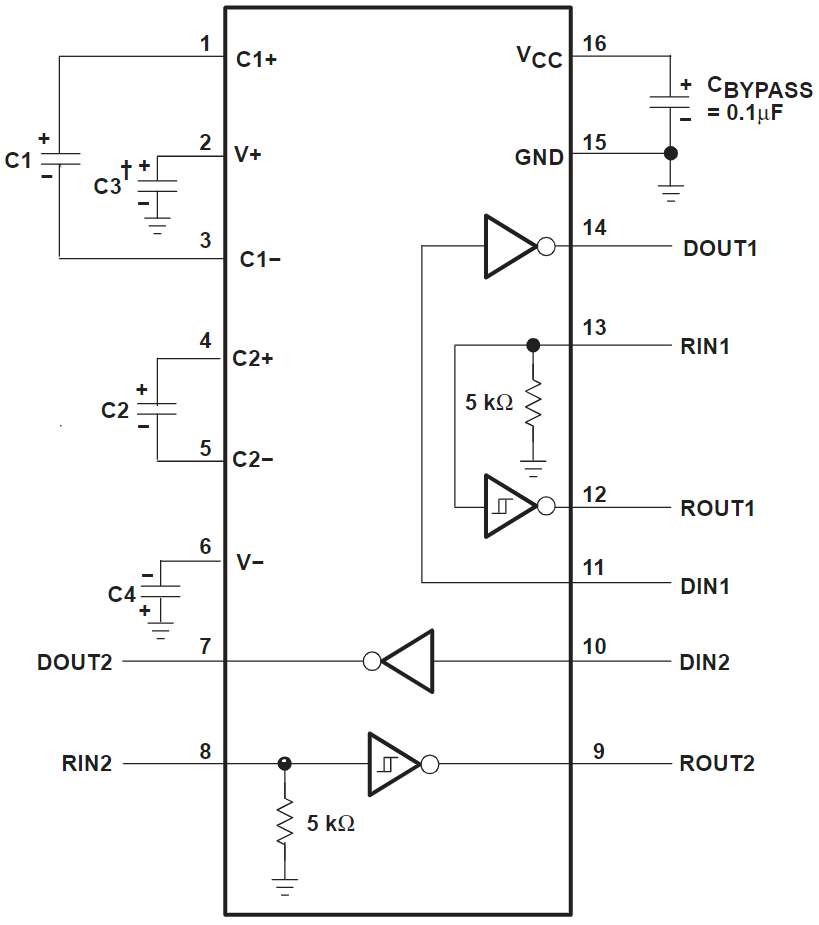

MAX3232EIPWRG4 Typical application Circuitry

MAX3232EIPWRG4

The MAX3232EIPWRG4 is part of the MAX3232 family of integrated circuits, which are specifically engineered to facilitate voltage level translation from TTL (Transistor-Transistor Logic) to RS-232 and vice versa. This is crucial for serial communications that occur between devices like microcontrollers and the serial ports found on many computers, adhering to RS-232 protocol standards.

1. Establishing Power Supply Links: Suitable for operation with a supply voltage spanning from 3.0V to 5.5V, the V_CC pin, normally pin 16, connects to the power source, and the GND pin, which is commonly pin 15, connects to the system's ground for the grounding of the MAX3232EIPWRG4.

2. Charge Pump Capacitors Connection: To support the voltage conversion, the MAX3232EIPWRG4 uses four capacitors, generally with a capacitance of 0.1 μF. These are to be connected to the pins named C1+ (pin 1), C1- (pin 2), C2+ (pin 3), and C2- (pin 4), which are key to the internal charge pump mechanism.

3. RS-232 Driver Configuration: The integrated circuit includes a pair of drivers. The TTL input signals are fed into T1IN and T2IN, normally pins 11 and 10, while the RS-232 level output signals are emitted from R1OUT and R2OUT, usually pins 14 and 7.

4. TTL Receiver Connections: Similarly, the MAX3232EIPWRG4 is equipped with two receivers that convert RS-232 level input signals from R1IN and R2IN, often pins 13 and 8, into TTL level output signals at T1OUT and T2OUT, typically pins 12 and 9.

5. Inclusion of Optional Control Pins: The MAX3232EIPWRG4 might also feature pins that serve additional functions, such as the enable or disable feature for the transceivers, which should be configured according to the specific use case.

To ensure the accurate and optimal use of the MAX3232EIPWRG4, designers should always refer to the most current datasheet for the precise pin layout and connection guidance. The MAX3232EIPWRG4's design makes it particularly advantageous for low-voltage applications such as portable or battery-powered devices, all while maintaining the necessary voltage levels dictated by the RS-232 standard for clear and effective communication.
