Analog Devices Inc./Maxim Integrated MAX3232EEUE+T

Part No.:: MAX3232EEUE+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: MAX3232EEUE+T.pdf

Description:: IC TRANSCEIVER FULL 2/2 16TSSOP

In Stock:: 2174

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3232EEUE+T Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
250kbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX3232EEUE+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3232EEUE+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3232EEUE+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3232EEUE+T information

Views：

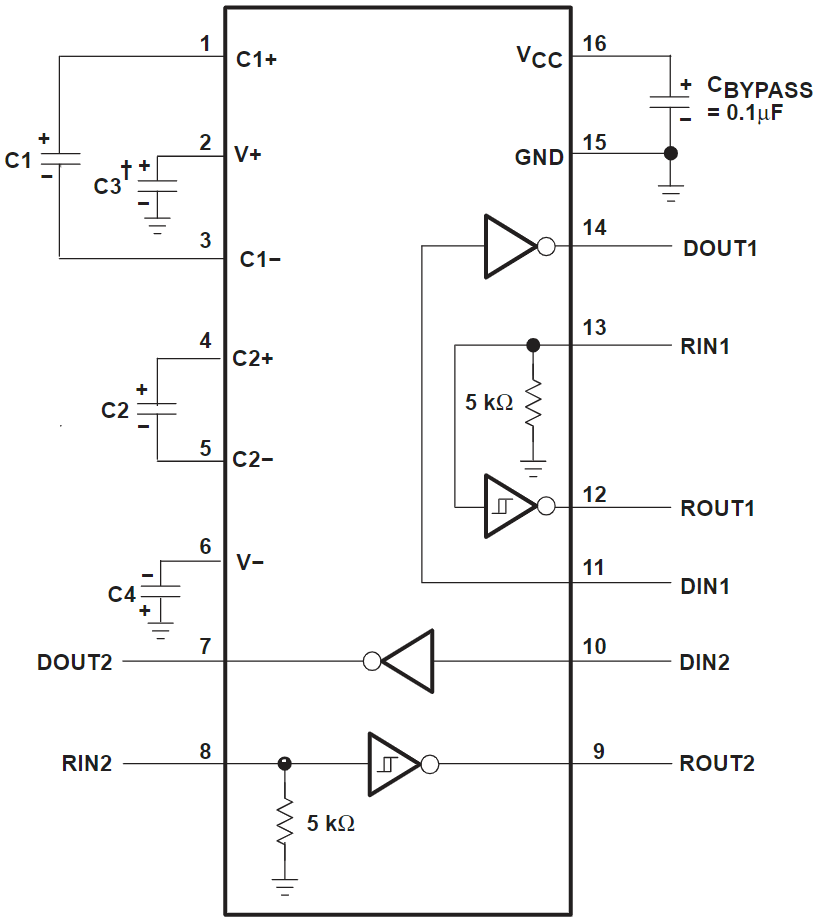

MAX3232EEUE+T Typical application Circuitry

MAX3232EEUE+T

The MAX3232EEUE+T is a model within the MAX3232 series of integrated circuits, which are engineered for signal conversion between RS-232 and TTL (Transistor-Transistor Logic) levels. This family of chips is particularly useful for establishing serial communication between devices like microcontrollers and the serial ports of computers, ensuring compatibility across differing voltage domains.

1. Power Supply Integration: Powering the MAX3232EEUE+T requires a source within the range of 3.0V to 5.5V. The supply voltage connects to the V_CC pin, usually pin 16, while the GND pin, typically pin 15, should be linked to the system's ground, establishing a foundation for the chip's operation.

2. Charge Pump Capacitors Alignment: The device's voltage conversion function is facilitated by four external capacitors, usually valued at 0.1 μF. These capacitors are vital for the charge pump mechanism and are connected to the designated pins C1+ (pin 1), C1- (pin 2), C2+ (pin 3), and C2- (pin 4).

3. RS-232 Driver Connections: The MAX3232EEUE+T contains two drivers that transmute TTL input to RS-232 output signals. These drivers are interfaced with TTL input pins T1IN and T2IN, while the outputs are mapped to RS-232 output pins R1OUT and R2OUT.

4. TTL Receiver Implementation: In parallel, the MAX3232EEUE+T possesses two receivers that convert RS-232 input signals into TTL output signals. These inputs are connected to pins R1IN and R2IN, with outputs delivered from T1OUT and T2OUT.

5. Optional Control Features: The MAX3232EEUE+T may include additional pins that provide enable/disable functions for the drivers and receivers, tailored to the needs of the particular electronic architecture.

Precise and effective utilization of the MAX3232EEUE+T necessitates adherence to the datasheet for exact pin assignment and circuit configuration. The MAX3232EEUE+T is lauded for its low-voltage operation, making it a suitable choice for mobile and battery-powered devices, all while upholding the RS-232 voltage levels necessary for robust serial communication.
