Texas Instruments MAX3232ECDR

Part No.:: MAX3232ECDR

Manufacturer:: Texas Instruments

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX3232ECDR.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SOIC

In Stock:: 3255

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3232ECDR Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
300 mV
DataRate:
250kbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

MAX3232ECDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3232ECDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3232ECDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3232ECDR information

Views：

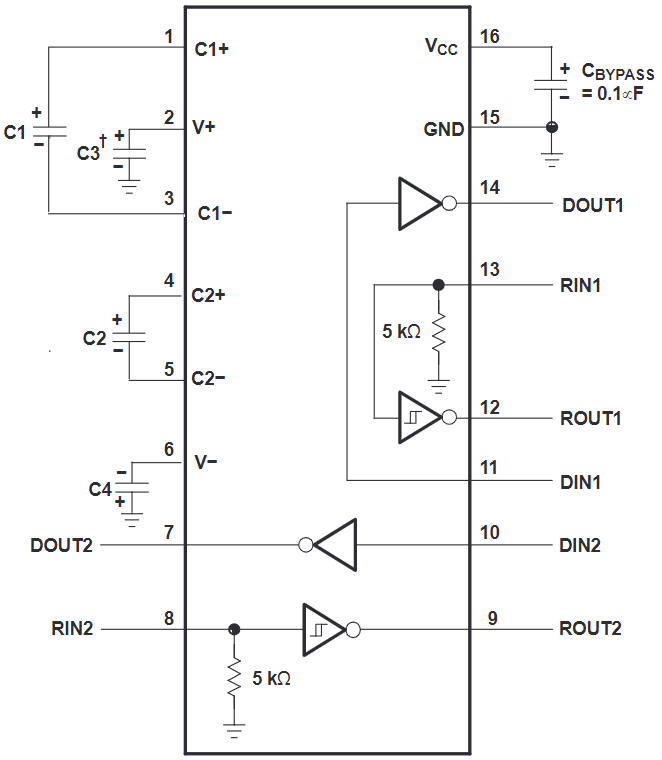

MAX3232ECDR Typical application Circuitry

MAX3232ECDR

The MAX3232ECDR is part of the MAX3232 series, a collection of RS-232 transceivers from Maxim Integrated, designed to bridge the communication between TTL/CMOS logic levels and RS-232 signal standards. This series is known for its versatility in serial communication applications, such as in data terminals, telecommunications, and industrial control systems. The MAX3232ECDR distinguishes itself with its capability to operate at lower voltages, reduced power consumption, and enhanced ESD protection, making it a suitable choice for battery-powered and portable devices where power efficiency and durability are critical.

1. Power Supply Input (VCC): The MAX3232ECDR is powered through the VCC pin, which supports a voltage range typically from 3.0V to 5.5V. This flexibility allows the device to be integrated into a variety of system designs with different power requirements. It is essential to provide a stable and regulated power supply to VCC to ensure the transceiver's optimal functionality.

2. Ground Connection (GND): The GND pin establishes the essential ground reference for the device. A reliable connection to the system's ground is crucial for preserving the integrity of data communication and ensuring the stable operation of the transceiver.

3. RS-232 Communication Ports (T1OUT, R1IN, T2OUT, R2IN): The device includes two driver outputs (T1OUT, T2OUT) and two receiver inputs (R1IN, R2IN) for RS-232 communication. These pins are connected to the RS-232 interface, enabling the MAX3232ECDR to transmit and receive RS-232 signals and support full-duplex communication.

4. TTL/CMOS Logic Interface (T1IN, R1OUT, T2IN, R2OUT): The TTL/CMOS logic level inputs (T1IN, T2IN) and outputs (R1OUT, R2OUT) allow the device to interface with the system's microcontroller or digital logic circuits. The T1IN and T2IN pins accept TTL/CMOS signals for conversion to RS-232 levels for transmission, while the R1OUT and R2OUT pins output TTL/CMOS levels corresponding to the RS-232 signals received.

5. Charge Pump Capacitors (C1+, C1-, C2+, C2-): The MAX3232ECDR utilizes a charge pump circuit to generate the RS-232 voltage levels from a single supply voltage. External capacitors connected to C1+, C1-, C2+, and C2- are crucial for the charge pump's operation, enabling the device to produce RS-232 compliant signal levels without the need for an additional power supply.

6. Decoupling for Power Supply Stability (VCC, GND): To ensure the stable operation of the MAX3232ECDR, especially in environments susceptible to electrical noise, it is recommended to use decoupling capacitors near the VCC and GND pins. These capacitors help to mitigate voltage fluctuations and transient spikes on the power supply line, contributing to the reliable performance of the transceiver.

7. ESD Protection and Signal Integrity (RS-232 Ports): Incorporating additional protection measures, such as ESD protection diodes on the RS-232 communication ports, can enhance the durability of the MAX3232ECDR and protect the connected devices from electrostatic discharges.

Incorporating the MAX3232ECDR into a communication system demands meticulous attention to power supply management, signal interfacing, charge pump configuration, and implementing protective measures to fully leverage the transceiver's capabilities for efficient RS-232 communication. The MAX3232 series, with the MAX3232ECDR as a key model, exemplifies Maxim Integrated's expertise in delivering high-quality communication solutions that meet the needs of modern electronic systems, ensuring effective and reliable data exchange.
