Analog Devices Inc./Maxim Integrated MAX3232CUE+T

Part No.:: MAX3232CUE+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: MAX3232CUE+T.pdf

Description:: IC TRANSCEIVER FULL 2/2 16TSSOP

In Stock:: 2227

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3232CUE+T Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
300 mV
DataRate:
235Kbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

MAX3232CUE+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3232CUE+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3232CUE+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3232CUE+T information

Views：

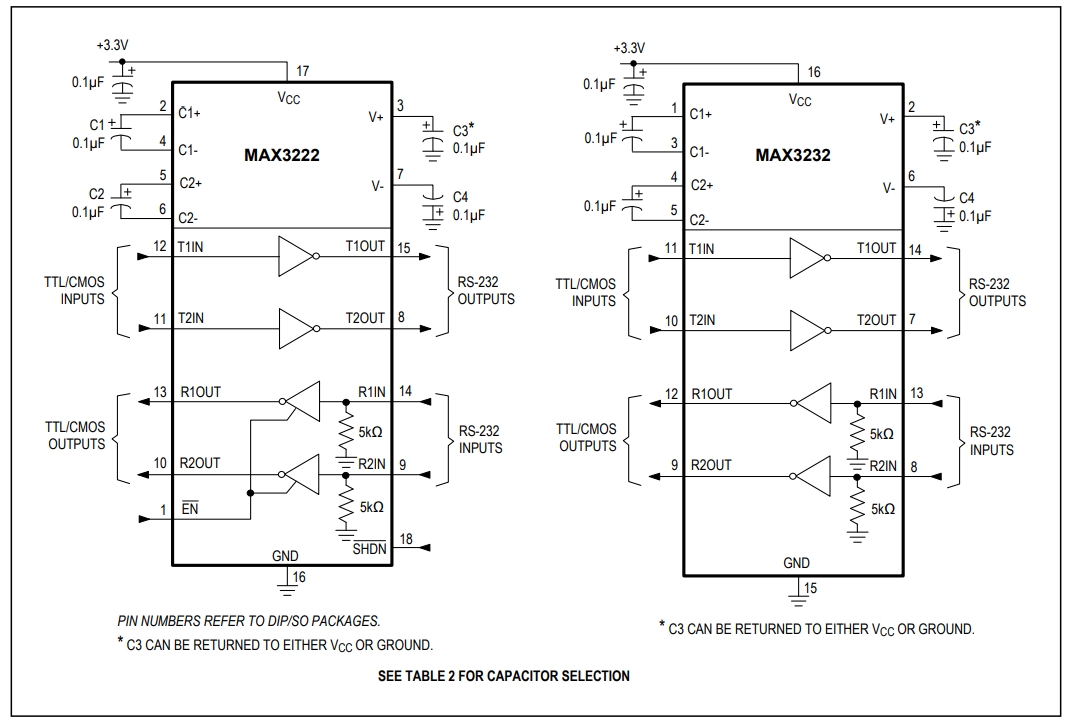

MAX3232CUE+T Typical application Circuitry

MAX3232CUE T

The MAX3232CUE+T is a transceiver chip designed for RS-232 communication. It converts signals between RS-232 voltage levels and TTL/CMOS logic levels, enabling communication between microcontrollers and RS-232 devices.

Application Scenarios: This chip is commonly used in scenarios such as serial communication interfaces, data transfer between computers and microcontrollers, and RS-232 level conversion in embedded systems.

Key Specifications: The MAX3232CUE+T operates with a supply voltage ranging from +3.0V to +5.5V. It features two drivers and two receivers, and it supports data rates up to 250 kbps.

Example Application - Microcontroller to PC Communication:

1. Power Supply Connection: Connect the V_CC pin (pin 16) of the MAX3232CUE+T to a +3.3V or +5V power source, and the GND pin (pin 15) to the system ground.

2. Microcontroller UART Connection: Connect the T1OUT pin (pin 14) of the MAX3232CUE+T to the TXD pin of the microcontroller, and the R1IN pin (pin 13) to the RXD pin of the microcontroller.

3. RS-232 Device Connection: Connect the T1IN pin (pin 12) of the MAX3232CUE+T to the RXD pin of the RS-232 device (e.g., a PC's serial port), and the R1OUT pin (pin 11) to the TXD pin of the RS-232 device.

4. Capacitor Connections: Connect four 0.1μF capacitors between the following pins: C1+ (pin 4) to V_CC, C1- (pin 5) to GND, C2+ (pin 2) to V_CC, and C2- (pin 6) to GND.

5. Ground Connection: Ensure that the GND pin (pin 15) is connected to the system ground for proper operation.

Circuit Design Considerations:

1. Power Supply Decoupling: Place a decoupling capacitor (e.g., 0.1μF) close to the V_CC and GND pins of the MAX3232CUE+T to filter out noise from the power supply.

2. Signal Integrity: Use short and direct traces for the UART and RS-232 connections to minimize signal degradation and crosstalk.

3. Capacitor Selection: Ensure that the capacitors connected to the charge pump pins (C1+, C1-, C2+, C2-) are of the correct value (0.1μF) and are placed close to the chip to ensure proper operation.

4. ESD Protection: Consider adding ESD protection diodes to the RS-232 lines (R1OUT and T1IN) to protect against electrostatic discharge.

5. Layout Considerations: Keep the analog and digital sections of the circuit separate to reduce noise coupling into the communication lines.

By following these design considerations, the MAX3232CUE+T can be effectively integrated into a microcontroller to the PC communication interface, providing reliable RS-232 level conversion for serial communication.
