Analog Devices Inc./Maxim Integrated MAX3160EAP+T

Part No.:: MAX3160EAP+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 20-SSOP (0.209, 5.30mm Width)

Datasheet:: MAX3160EAP+T.pdf

Description:: IC TRANSCEIVER FULL 2/2 20SSOP

In Stock:: 2755

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX3160EAP+T Specifications

Package/Case:
20-SSOP (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232, RS422, RS485
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
10Mbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX3160EAP+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX3160EAP+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX3160EAP+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX3160EAP+T information

Views：

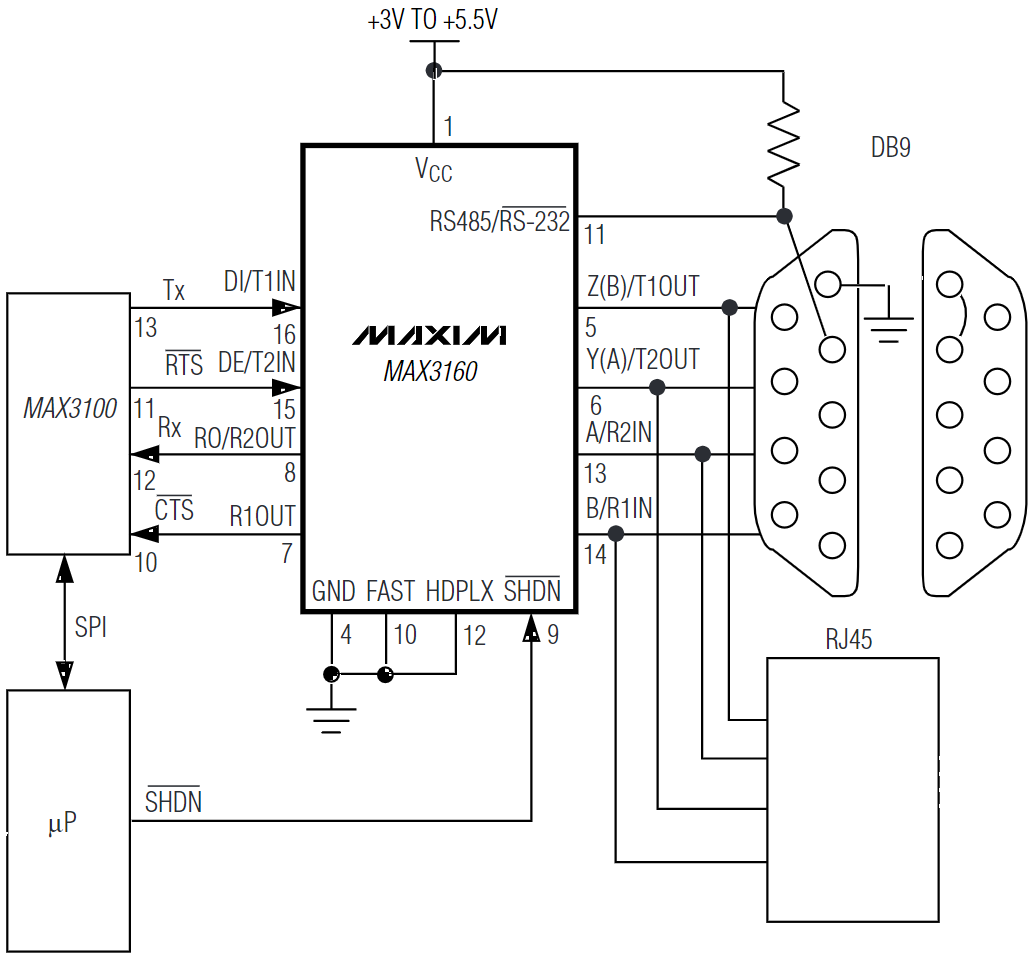

MAX3160EAP+T Typical application Circuitry

MAX3160EAP+T

The MAX3160EAP+T is a dynamic component from Maxim Integrated's transceiver series, adept in supporting mixed-signal communications. This transceiver is uniquely engineered to handle both RS-232 and RS-485/RS-422 protocols, a feature that makes it highly suitable for diverse applications requiring flexible communication standards, such as in industrial automation and data communication systems.

1. Power Input (VCC Pin): Connect the VCC pin of the MAX3160EAP+T to a suitable power supply, which can range from 3.3V to 5V, depending on the system's power requirements. This voltage is critical for the transceiver's operation across RS-232 and RS-485/RS-422 standards.

2. Grounding Connection (GND Pin): The GND pin of the MAX3160EAP+T must be linked to the system's ground. This connection is essential for reducing signal interference and ensuring the stability of communication across both protocols.

3. RS-232 Communication Setup: For RS-232 communication, the T1IN, R1OUT, T1OUT, and R1IN pins of the MAX3160EAP+T should be connected to your system's corresponding RS-232 interface pins. This configuration enables the transceiver to manage RS-232 communications effectively.

4. RS-485/RS-422 Interface Implementation: To set up RS-485 or RS-422 communication, use the DI (Driver Input), RO (Receiver Output), RE (Receiver Enable), DE (Driver Enable), and the differential line pins A/Y and B/Z. These pins are integral for the transceiver's operation in RS-485/RS-422 modes.

5. Mode Selection Pins (SHDN and EN): The SHDN (Shutdown) and EN (Enable) pins on the MAX3160EAP+T are utilized for controlling the operational state and mode selection of the device. Configuring these pins allows for effective transition between RS-232 and RS-485/RS-422 modes, and also aids in managing power consumption.

6. Software Integration: Implement the required drivers and communication protocols in your system's software to manage the operation of the MAX3160EAP+T. This includes controlling the switching between communication modes as required by your application.

7. Environmental and Protection Considerations: Install the MAX3160EAP+T in a location that minimizes exposure to thermal stress and electrical interference. In electrically noisy environments, consider additional protective measures such as line termination resistors and transient voltage suppressors.

Incorporating the MAX3160EAP+T into your design requires a detailed understanding of its datasheet, which provides comprehensive information about pin configurations, electrical characteristics, and operational guidelines. This ensures the effective utilization of the transceiver for seamless communication across RS-232 and RS-485/RS-422 interfaces in a variety of applications.
