MAX3160EAP/GG8 information

Views：

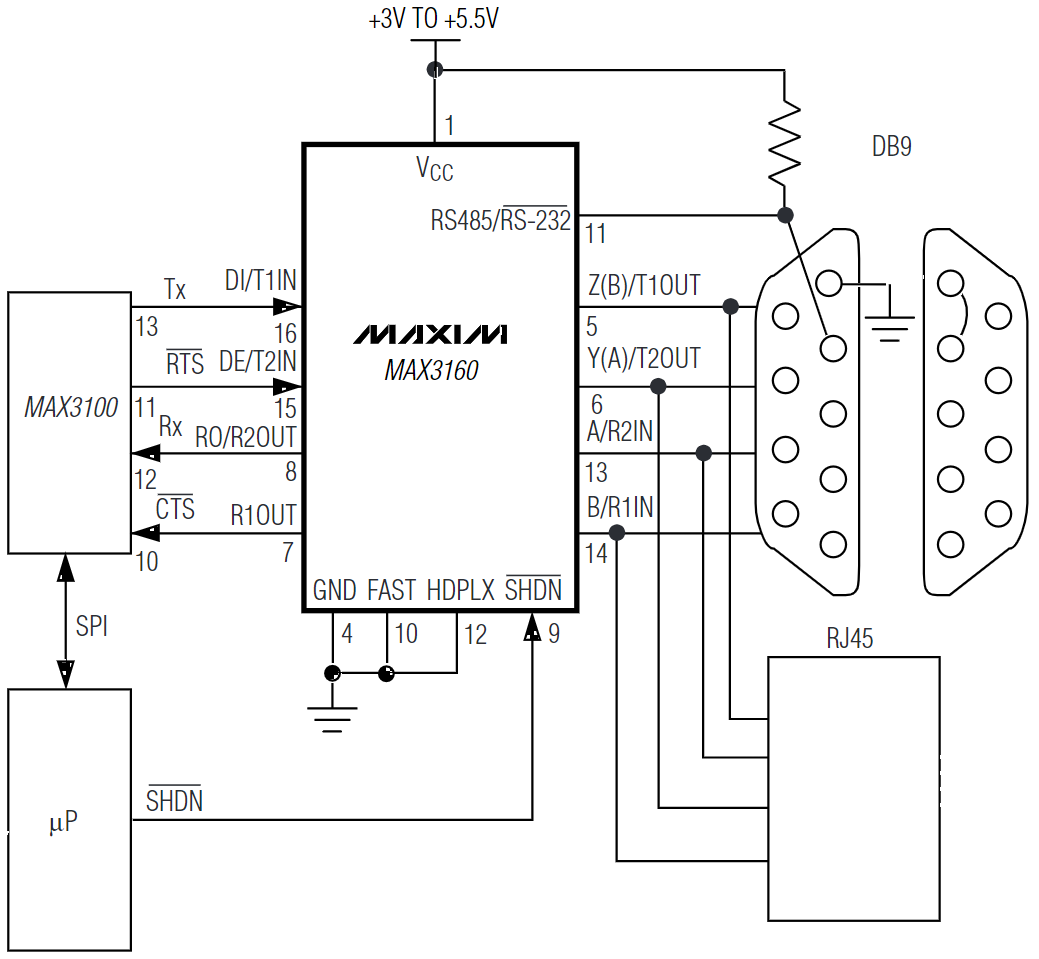

MAX3160EAP/GG8 Typical application Circuitry

MAX3160EAP GG8

The MAX3160EAP/GG8 is a significant member of Maxim Integrated's transceiver series, offering versatility and efficiency in mixed-signal communication environments. This device is adept at integrating RS-232 and RS-485/RS-422 communication protocols within a single package, making it a prime choice for applications such as industrial automation and data communication systems that require support for multiple interface standards.

1. Power Supply (VCC Pin): The VCC pin of the MAX3160EAP/GG8 should be connected to a power source, usually 3.3V or 5V, based on your system's specifications. This power supply is critical for the transceiver's functioning across the RS-232 and RS-485/RS-422 communication standards.

2. Ground Connection (GND Pin): Link the GND pin of MAX3160EAP/GG8 to the ground of your circuit. This ground connection plays a pivotal role in reducing signal noise and ensuring stable communication.

3. RS-232 Interface Setup: For RS-232 communication, the T1IN, R1OUT, T1OUT, and R1IN pins of the MAX3160EAP/GG8 must be connected to the corresponding RS-232 interface pins in your system. This setup enables the device to handle RS-232 communication effectively.

4. RS-485/RS-422 Interface Configuration: For the RS-485 or RS-422 communication, utilize pins DI (Driver Input), RO (Receiver Output), RE (Receiver Enable), DE (Driver Enable), and the differential line pins A/Y and B/Z. These connections are essential for facilitating data transmission and reception in RS-485/RS-422 modes.

5. Operational Mode Pins (SHDN and EN): The SHDN (Shutdown) and EN (Enable) pins of MAX3160EAP/GG8 are used for controlling the power state and selecting operational modes. Proper configuration of these pins allows seamless switching between RS-232 and RS-485/RS-422 modes and helps in power management.

6. Software Integration: Implement necessary drivers and communication protocols in your system's software to handle the operation of the MAX3160EAP/GG8. This includes managing the transition between different communication modes based on application requirements.

7. Environmental Considerations: Place the MAX3160EAP/GG8 in an area that is free from excessive thermal stress and electrical interference. Implement additional protective measures, like line termination resistors and transient voltage suppressors, in environments prone to electrical disturbances.

Incorporating the MAX3160EAP/GG8 into a circuit requires thorough adherence to its datasheet for a complete understanding of pinout details, electrical specifications, and operational guidelines. This ensures that the transceiver is optimally utilized for effective communication across RS-232 and RS-485/RS-422 interfaces in diverse applications.
