Analog Devices Inc./Maxim Integrated MAX232ESE+T

Part No.:: MAX232ESE+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX232ESE+T.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SOIC

In Stock:: 5192

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX232ESE+T Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
120Kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX232ESE+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX232ESE+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX232ESE+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX232ESE+T information

Views：

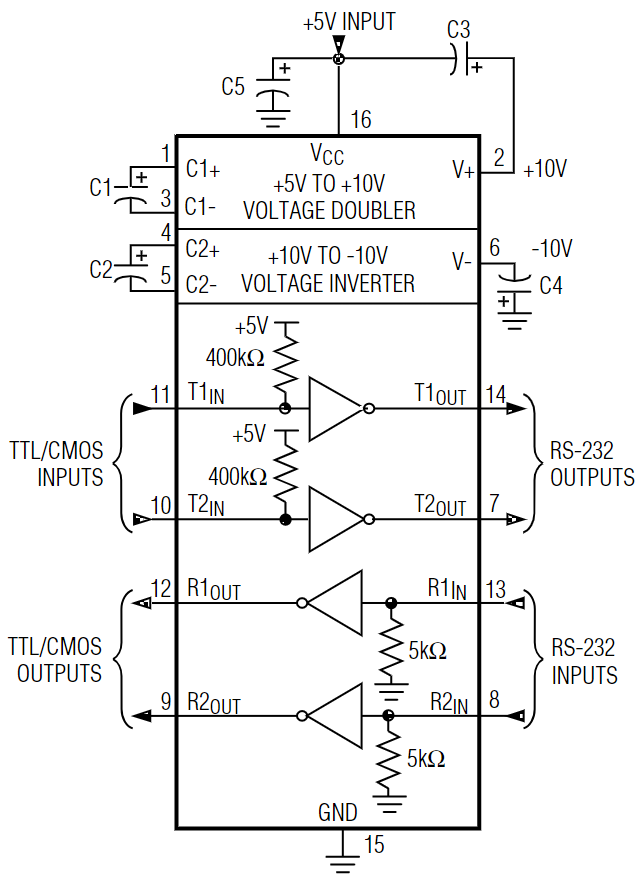

MAX232ESE+T Typical application Circuitry

MAX232ESE+T

The MAX232ESE+T is part of Maxim Integrated's MAX232 series, renowned for its dual driver/receiver integrated circuits that are pivotal in RS-232 communication interfaces. These ICs adeptly convert TTL/CMOS logic levels to RS-232 voltage levels and vice versa, making them indispensable in serial communication applications. This series is commonly used for connecting microcontrollers, computers, and other digital systems with RS-232 compliant devices such as modems, printers, and data terminals.

1. T1IN (Pin 11) and T2IN (Pin 10): These pins function as TTL/CMOS logic level inputs. Connect these to the TTL/CMOS output signals in your system that require RS-232 level conversion.

2. R1OUT (Pin 12) and R2OUT (Pin 9): These are the RS-232 level output pins. R1OUT and R2OUT should be linked to your RS-232 communication interface, providing converted signals from TTL/CMOS inputs.

3. T1OUT (Pin 14) and T2OUT (Pin 7): The pins T1OUT and T2OUT output RS-232 level signals, converting from RS-232 inputs to TTL/CMOS levels.

4. R1IN (Pin 13) and R2IN (Pin 8): These pins are for RS-232 level inputs. They accept RS-232 signals, converting them to TTL/CMOS levels.

5. VCC (Pin 16): This pin connects to the power supply, typically at +5V.

6. GND (Pin 15): The ground pin, which needs to be attached to the ground of the system.

7. External Capacitors (C1+, C1-, C2+, C2- on Pins 6, 5, 4, 3): Connect external capacitors to these pins. The capacitors are crucial for the charge pump circuit that generates RS-232 voltage levels.

8. Voltage Outputs (V+ on Pin 2 and V- on Pin 1): These pins provide the positive and negative voltages from the internal charge pump, essential for RS-232 level shifting.

For complete details about the MAX232ESE+T, including its pin configurations, electrical characteristics, and suitable applications, consulting the datasheet is essential. The datasheet offers exhaustive specifications and guidelines for integrating the MAX232ESE+T effectively into serial communication interfaces.

When designing circuits with the MAX232ESE+T, it's crucial to correctly establish connections for the TTL/CMOS inputs (T1IN, T2IN), RS-232 outputs (T1OUT, T2OUT), and RS-232 inputs (R1IN, R2IN). Moreover, setting up the power supply (VCC), grounding (GND), and configuring the external capacitors for the charge pump (C1+, C1-, C2+, C2-) are key steps for the successful operation of the device in RS-232 communication systems.
