What is the Additional Feature ?

Name: MAX232ESE+
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX232ESE+
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated MAX232ESE+

Part No.:: MAX232ESE+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX232ESE+.pdf

Description:: IC TRANSCEIVER FULL 2/2 16SOIC

In Stock:: 6927

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX232ESE+ Specifications

Package/Case:
16-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
120Kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX232ESE+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX232ESE+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX232ESE+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX232ESE+ information

Views：

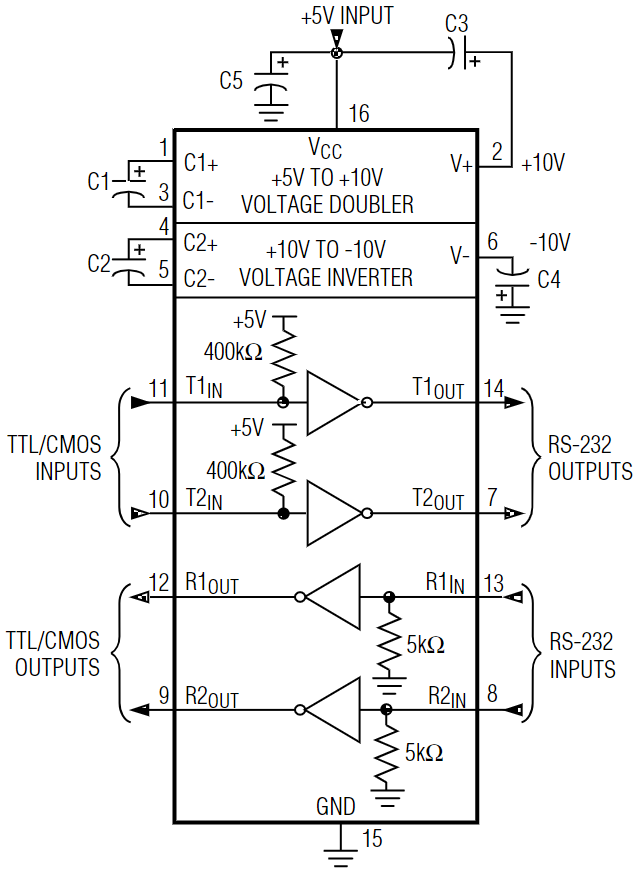

MAX232ESE+ Typical application Circuitry

MAX232ESE+

The MAX232ESE+ is a model from the MAX232 series by Maxim Integrated, a range of integrated circuits renowned for their capabilities as dual driver/receivers in RS-232 communication interfaces. These ICs are specialized in converting TTL/CMOS logic levels to RS-232 voltage levels and back, making them crucial for serial communication applications. This series is typically used in interfacing microcontrollers, computers, and other digital systems with RS-232 compliant devices such as modems and printers.

1. T1IN (Pin 11) and T2IN (Pin 10): These pins function as TTL/CMOS logic level inputs. Connect them to your system's TTL/CMOS signals that need RS-232 level conversion.

2. R1OUT (Pin 12) and R2OUT (Pin 9): R1OUT and R2OUT are the RS-232 level outputs. They should be connected to your RS-232 communication interface, providing signals converted from TTL/CMOS inputs.

3. T1OUT (Pin 14) and T2OUT (Pin 7): These pins output RS-232 level signals, which have been converted from RS-232 inputs to TTL/CMOS levels.

4. R1IN (Pin 13) and R2IN (Pin 8): The RS-232 input pins, R1IN and R2IN accept RS-232 signals for conversion into TTL/CMOS levels.

5. VCC (Pin 16): Connect this pin to the +5V power supply.

6. GND (Pin 15): The ground pin, which needs to be connected to your system's ground.

7. External Capacitors (C1+, C1-, C2+, C2- on Pins 6, 5, 4, 3): These pins connect to external capacitors essential for the charge pump circuit, which generates the RS-232 voltage levels.

8. Voltage Outputs (V+ on Pin 2 and V- on Pin 1): V+ and V- are the outputs from the internal charge pump. They provide the necessary voltages for RS-232 level shifting.

For comprehensive details about the MAX232ESE+, including pin configuration, electrical characteristics, and practical applications, refer to the datasheet. This document offers crucial specifications and integration guidelines for effectively using the MAX232ESE+ in serial communication interfaces.

When designing circuits with the MAX232ESE+, it is vital to properly connect the TTL/CMOS inputs (T1IN, T2IN), RS-232 outputs (T1OUT, T2OUT), and RS-232 inputs (R1IN, R2IN). Additionally, setting up the power supply (VCC), grounding (GND), and configuring the external capacitors for the charge pump (C1+, C1-, C2+, C2-) are crucial steps for the successful operation of the device in RS-232 communication systems.
