Analog Devices Inc./Maxim Integrated MAX232CPE+

Part No.:: MAX232CPE+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 16-DIP (0.300, 7.62mm)

Datasheet:: MAX232CPE+.pdf

Description:: IC TRANSCEIVER FULL 2/2 16DIP

In Stock:: 2818

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX232CPE+ Specifications

Package/Case:
16-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS232
NumberofDrivers/Receivers:
2/2
Duplex:
Full
ReceiverHysteresis:
500 mV
DataRate:
120Kbps
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

MAX232CPE+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX232CPE+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX232CPE+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX232CPE+ information

Views：

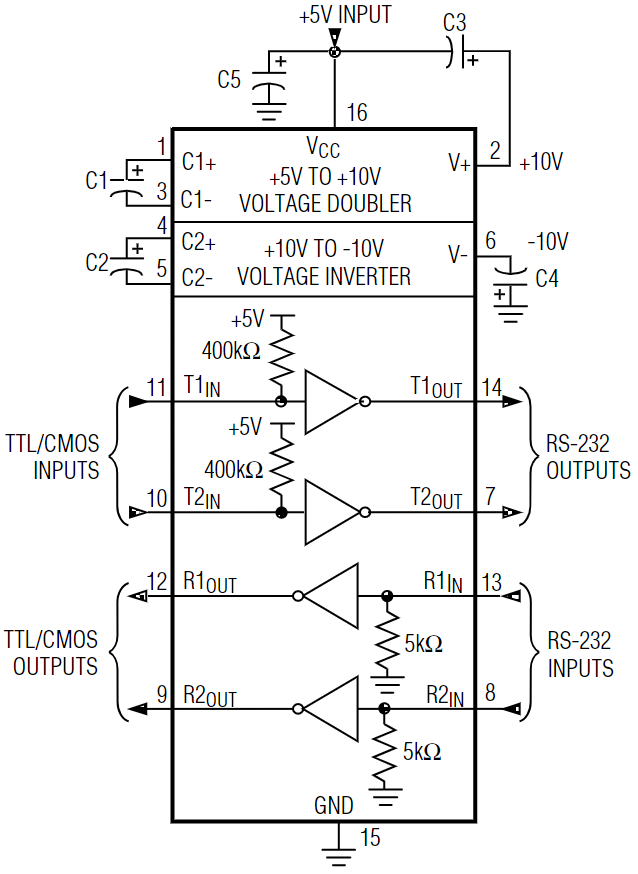

MAX232CPE+ Typical application Circuitry

MAX232CPE+

The MAX232CPE+ is a variant in the MAX232 series by Maxim Integrated, designed for RS-232 communication interfaces. This series is known for its capability to convert TTL/CMOS logic levels to RS-232 voltage levels and back, making it an essential component for serial communication between microcontrollers or digital systems and RS-232 compliant devices such as modems and printers.

1. T1IN (Pin 11) and T2IN (Pin 10): These are the TTL/CMOS logic level input pins. Connect your digital system's TTL/CMOS output signals to these pins for conversion to RS-232 level signals.

2. R1OUT (Pin 12) and R2OUT (Pin 9): The output pins for the RS-232 signals, R1OUT and R2OUT, convert the corresponding TTL/CMOS input signals to RS-232 levels.

3. T1OUT (Pin 14) and T2OUT (Pin 7): These RS-232 output pins emit signals converted from RS-232 level inputs to TTL/CMOS level outputs.

4. R1IN (Pin 13) and R2IN (Pin 8): The RS-232 input pins, R1IN and R2IN, accept RS-232 level signals for conversion to TTL/CMOS levels.

5. VCC (Pin 16): Connect this pin to the +5V supply voltage.

6. GND (Pin 15): The ground pin, which needs to be attached to the ground of the system.

7. Capacitor Connections (C1+, C1-, C2+, C2- on Pins 6, 5, 4, 3): These pins connect to external capacitors. They form part of the charge pump circuitry necessary for generating RS-232 voltage levels.

8. Voltage Outputs (V+ on Pin 2 and V- on Pin 1): These pins output the positive and negative voltages generated by the internal charge pump, used for the level shifting required in RS-232 communication.

To fully utilize the MAX232CPE+, including understanding its pin configuration, electrical characteristics, and specific applications, it is crucial to refer to the datasheet. This document offers comprehensive information and guidelines for integrating the MAX232CPE+ into communication interfaces effectively.

In designing circuits with the MAX232CPE+, it's important to correctly configure the TTL/CMOS inputs (T1IN, T2IN), the RS-232 outputs (T1OUT, T2OUT), and the RS-232 inputs (R1IN, R2IN) for accurate signal translation. Additionally, setting up the power supply (VCC), grounding (GND), and arranging the charge pump capacitors (C1+, C1-, C2+, C2-) are critical for ensuring the successful operation of the device in serial communication setups.
