What is the Additional Feature ?

Name: MAX14783EESA+T
Brand: Analog Devices Inc./Maxim Integrated
SKU: MAX14783EESA+T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc./Maxim Integrated MAX14783EESA+T

Part No.:: MAX14783EESA+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX14783EESA+T.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 2061

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX14783EESA+T Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
10 mV
DataRate:
42Mbps
Voltage-Supply:
3V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX14783EESA+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX14783EESA+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX14783EESA+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX14783EESA+T information

Views：

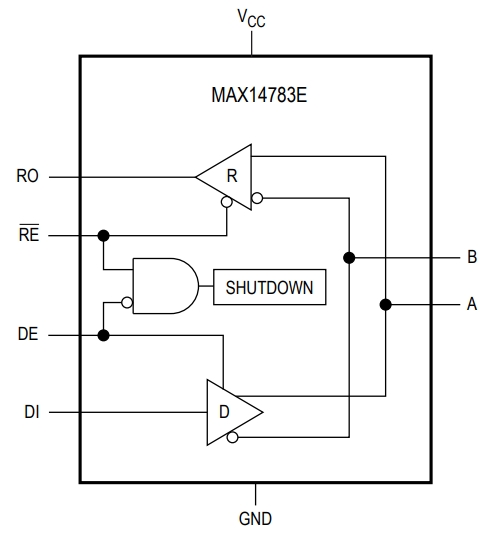

MAX14783EESA+T Typical application Circuitry

MAX14783EESA+T

The MAX14783EESA+T is a robust RS-485/RS-422 transceiver designed to operate in harsh industrial environments where noise immunity and high data integrity are essential. This device is capable of facilitating long-distance communication in networks or systems that require differential signaling for noise immunity.

Application Scenarios:

A common application of the MAX14783EESA+T is in industrial automation systems, where it enables communication between various sensors, actuators, and controllers over a long distance, often in electrically noisy environments.

Parameter Features:

The MAX14783EESA+T boasts features such as extended -40°C to +125°C temperature range, 2.5kV ESD protection on the RS-485 input/output pins, half-duplex communication capability, and a wide supply voltage range of 3V to 5.5V. It also includes thermal shutdown and current-limiting features for enhanced protection.

Circuit Connection in an Industrial Automation System:

1. Power Supply and Grounding: Connect the VCC pin (Pin 8) of the MAX14783EESA+T to a stable 3.3V or 5V power supply, depending on the system requirements. Connect the GND pin (Pin 5) to the system ground. Ensure robust grounding practices to minimize noise and ensure signal integrity.

2. RS-485 Communication Lines: Connect the A (Pin 1) and B (Pin 4) pins of the MAX14783EESA+T to the differential communication lines of the RS-485 network. These lines are the backbone of the RS-485 communication, carrying the differential signals that enable noise-immune data transmission over long distances.

3. Driver Enable and Receiver Output: The DE (Driver Enable, Pin 3) pin controls the operation of the RS-485 driver. Connect this pin to a GPIO (General Purpose Input/Output) pin of the controlling microcontroller to enable/disable the driver as needed. The RO (Receiver Output, Pin 7) pin provides the received data output, which should be connected to a receive (RX) pin of the microcontroller.

4. Receiver Input and Driver Input: The DI (Driver Input, Pin 6) pin accepts TTL/CMOS input data from the microcontroller's transmit (TX) pin, converting it to RS-485 differential signals at the A and B pins. The RE (Receiver Enable, Pin 2) pin, typically connected to ground, enables the receiver circuit, allowing the device to receive data from the RS-485 network.

Design Considerations:

- Impedance Matching: To prevent signal reflections that can lead to data corruption, ensure that the impedance of the RS-485 network matches the characteristic impedance of the cable used, typically around 120 ohms.

- Protection Against Transients: In industrial environments, electrical transients can be common. Consider adding additional transient voltage suppressors (TVS diodes) on the A and B lines for extra protection.

- Thermal Management: While the MAX14783EESA+T includes thermal shutdown protection, it's essential to consider the thermal aspects of your design, especially in high-temperature industrial environments or if the device is expected to operate near its maximum rating.

- Power Supply Decoupling: Place a decoupling capacitor (typically 0.1µF) close to the VCC and GND pins of the MAX14783EESA+T to provide a stable power supply and minimize noise.

By carefully considering these points and properly implementing the MAX14783EESA+T in your design, you can achieve reliable, noise-immune communication in industrial automation systems, enhancing data integrity and system robustness.
