Analog Devices Inc./Maxim Integrated MAX13488EESA+T

Part No.:: MAX13488EESA+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX13488EESA+T.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 5312

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX13488EESA+T Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
25 mV
DataRate:
16Mbps
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX13488EESA+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX13488EESA+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX13488EESA+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX13488EESA+T information

Views：

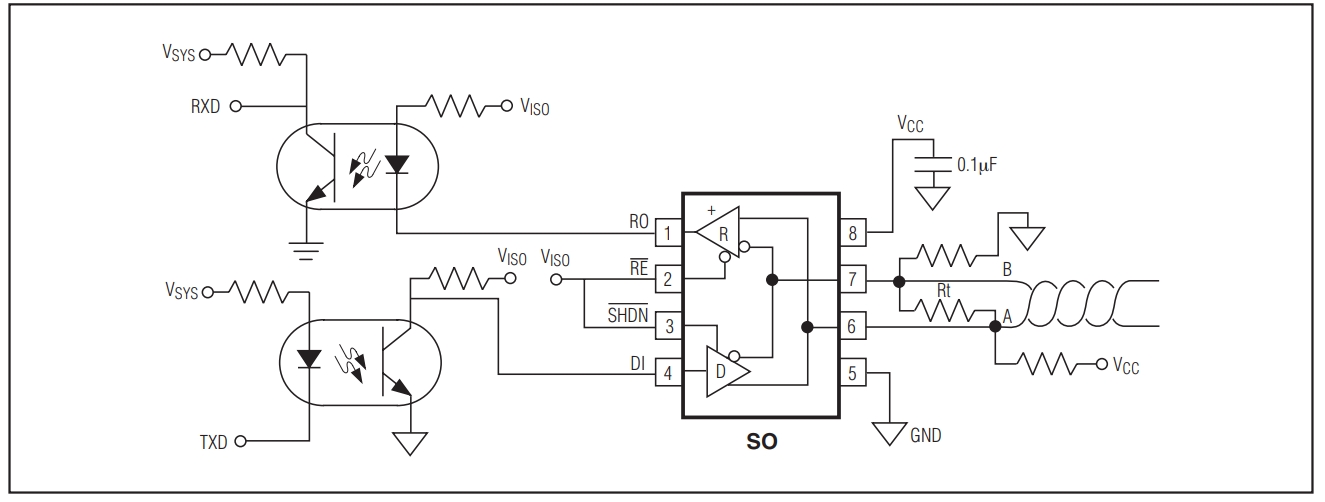

MAX13488EESA+T Typical application Circuitry

MAX13488EESA T

The MAX13488EESA+T is a half-duplex RS-485/RS-422 transceiver designed for robust communication in industrial environments. It features a wide supply voltage range, thermal shutdown, and short-circuit protection.

Application Scenarios: This chip is commonly used in industrial control systems, automation networks, and building management systems. It is ideal for applications requiring long-distance communication with high noise immunity.

Parameter Characteristics: The MAX13488EESA+T operates over a supply voltage range of 3.0V to 5.5V, with a maximum data rate of 2.5Mbps. It offers ±15kV ESD protection on the transceiver's input and output pins and operates in temperatures ranging from -40 °C to +125 °C.

Example Application Circuit - Industrial Control System:

1. Power Supply Connection: Connect the VCC pin (Pin 8) of the MAX13488EESA+T to a 5V power supply. Connect the GND pin (Pin 5) to the ground.

2. Data Line Connection: Connect the RO (Receiver Output, Pin 1) to the RX (Receive) pin of the microcontroller. Connect the DI (Driver Input, Pin 4) to the TX (Transmit) pin of the microcontroller.

3. Biasing and Termination: Connect bias resistors (typically 4.7kΩ) between A (Pin 6) and VCC, and between B (Pin 7) and GND. Connect a termination resistor (typically 120Ω) between A and B at the end of the communication line.

4. RE and DE Control: Connect the RE (Receiver Enable, Pin 2) and DE (Driver Enable, Pin 3) pins to a GPIO pin on the microcontroller. To transmit, set the GPIO high; to receive, set it low.

5. Communication Setup: Configure the microcontroller's UART to match the baud rate and data format of the RS-485 network. Ensure proper timing and synchronization for reliable communication.

Design Considerations: When designing a circuit with the MAX13488EESA+T, consider the impedance of the communication lines, the cable length, and the potential for ground loops. Use proper grounding and shielding techniques to reduce noise and ensure reliable communication. Additionally, ensure that the circuit does not exceed the chip's absolute maximum ratings to prevent damage.
