Analog Devices Inc./Maxim Integrated MAX13488EESA+

Part No.:: MAX13488EESA+

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX13488EESA+.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 2341

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX13488EESA+ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
25 mV
DataRate:
16Mbps
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MAX13488EESA+ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX13488EESA+ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX13488EESA+ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MAX13488EESA+ information

Views：

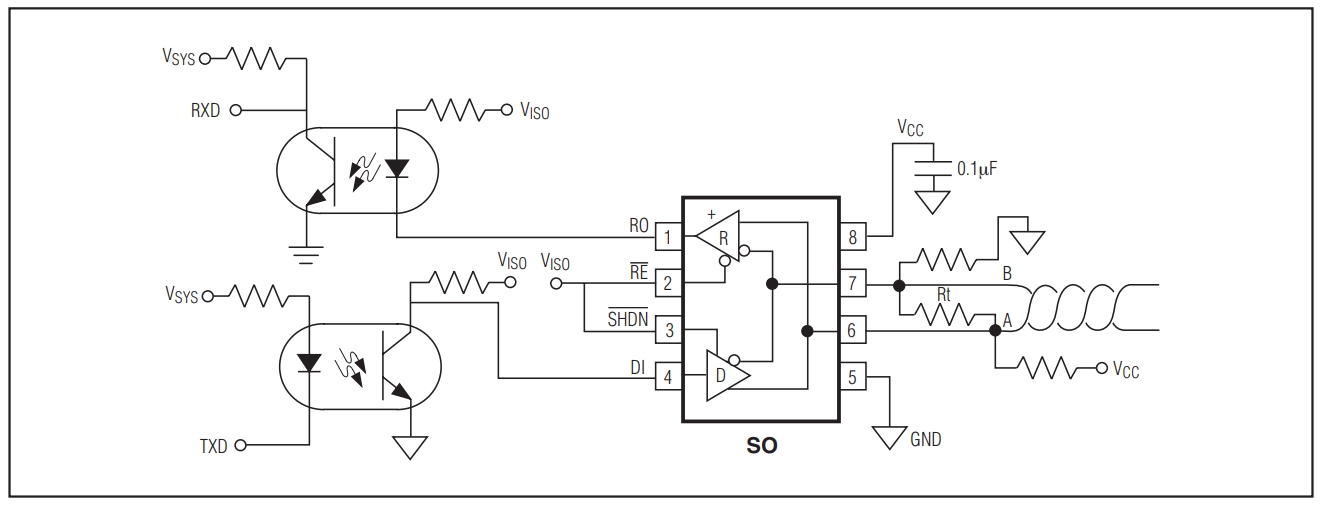

MAX13488EESA+ Typical application Circuitry

MAX13488EESA+

The MAX13488EESA+ is a half-duplex RS-485/RS-422 transceiver chip with AutoDirection control, designed for serial communication in electronic devices. This feature enables automatic control of the data direction, eliminating the need for external control signals.

Key Features: The MAX13488EESA+ operates with a supply voltage ranging from 3.0V to 5.5V and supports data rates up to 20Mbps. It incorporates AutoDirection control, thermal shutdown protection, and short-circuit protection. The chip is available in an 8-pin SOIC package.

Application Scenario: One practical application for the MAX13488EESA+ is in a remote sensor network, where it is used to interface sensors with a central controller over an RS-485 bus.

Circuit Connection Details:

1. Power Supply: Connect the VCC pin (pin 8) of the MAX13488EESA+ to a 3.3V or 5V power source, depending on the system requirements. The GND pin (pin 5) should be connected to the system's ground.

2. RS-485 Bus Connection: Connect the Y pin (pin 6) and Z pin (pin 7) to the A and B lines of the RS-485 bus, respectively. Ensure proper termination of the RS-485 bus for reliable communication.

3. Sensor Interface: Connect the DI pin (pin 4) to the TXD output of the sensor for data transmission. Connect the RO pin (pin 1) to the RXD input of the sensor for data reception.

4. AutoDirection Control: The RE pin (pin 2) and DE pin (pin 3) are internally connected for AutoDirection control. No external connections are needed for these pins in this application.

Design Considerations:

- Ensure that the power supply voltage matches the requirements of the MAX13488EESA+ to prevent damage to the chip.

- Pay attention to the layout of the RS-485 bus connections to minimize noise and signal reflections.

- The characteristic impedance of the cable should be matched by using the appropriate termination resistors at the ends of the RS-485 bus.

- Consider the use of fail-safe biasing resistors on the RS-485 lines to ensure a known state when the bus is idle.

In conclusion, the MAX13488EESA+ is a suitable choice for interfacing sensors with a central controller in a remote sensor network. By following the circuit connection details and design considerations outlined above, one can effectively implement this transceiver in their RS-485 communication projects.
