STMicroelectronics M24C08-RMN6TP

Part No.:: M24C08-RMN6TP

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: M24C08-RMN6TP.pdf

Description:: IC EEPROM 8KBIT I2C 400KHZ 8SO

In Stock:: 2608

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

M24C08-RMN6TP Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
EEPROM
Technology:
EEPROM
MemorySize:
8Kb (1K x 8)
MemoryInterface:
I²C
ClockFrequency:
400 kHz
WriteCycleTime-WordPage:
5ms
AccessTime:
900 ns
Voltage-Supply:
1.8V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

M24C08-RMN6TP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including M24C08-RMN6TP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for M24C08-RMN6TP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

M24C08-RMN6TP information

Views：

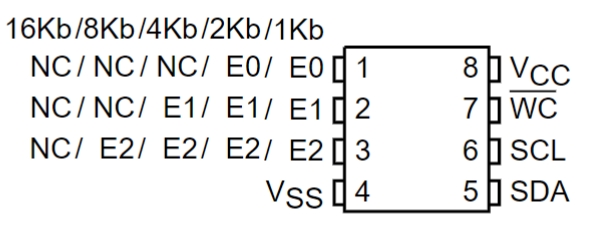

M24C08-RMN6TP Typical application Circuitry

M24C08-RMN6TP

The M24C08-RMN6TP is an 8-Kbit serial I²C bus EEPROM (Electrically Erasable Programmable Read-Only Memory) designed for efficient storage and retrieval of data in a wide range of digital devices. Its I²C interface allows for easy integration into embedded systems, making it ideal for storing non-volatile data such as device configuration, calibration data, user settings, and small application logs.

Application Scenarios:

The M24C08-RMN6TP is commonly used in consumer electronics, such as in smart home devices like programmable thermostats, where it can store user-defined settings and schedules.By doing this, you may be confident that the gadget will keep these settings even after it is turned off.

Parameter Features:

Key features of the M24C08-RMN6TP include:

- 8 Kbits of EEPROM storage

- An I²C serial interface that supports 1 MHz (fast mode plus), 400 kHz (fast mode), and 100 kHz (standard mode).

- Broad supply voltage range (1.8 V to 5.5 V)

- Up to 16 bytes of byte and page write

- Data retention of 40 years and write endurance of 1 million write cycles per byte

Circuit Connection in a Programmable Thermostat:

1. I²C Interface Connection: The I²C bus of the M24C08-RMN6TP should be connected to the I²C bus of the thermostat's main control microcontroller. This involves connecting the Serial Data (SDA, Pin 5) to the microcontroller's SDA line and the Serial Clock (SCL, Pin 6) to the microcontroller's SCL line.

2. Power Supply Connections: The VCC pin (Pin 8) of the M24C08-RMN6TP should be connected to a 3.3V or 5V power source, depending on the system's operating voltage. The VSS pin (Pin 4) must be connected to the system ground. A decoupling capacitor, typically 0.1 µF, should be placed close to the VCC pin to filter out power supply noise.

3. Write Control: The Write Control (WC, Pin 7) pin is used to enable or disable write operations to the EEPROM. Connecting this pin to VSS enables write operations, while connecting it to VCC through a pull-up resistor can protect the EEPROM from unintended writes.

4. Address Pins: The M24C08-RMN6TP has three address pins (A0, A1, A2; Pins 1, 2, 3) that determine the device's address on the I²C bus. These pins can be connected to VSS or VCC to set the EEPROM's I²C address, allowing multiple devices to be connected to the same I²C bus.

Design Considerations:

- I²C Bus Pull-up Resistors: The SDA and SCL lines should have pull-up resistors (typically 4.7 kΩ to 10 kΩ) to ensure proper I²C communication. The exact value depends on the system's voltage level and the I²C bus capacitance.

- Electromagnetic Interference (EMI): In a device like a thermostat, which may be installed in various environments, it's important to consider EMI. Proper PCB layout practices, such as keeping the I²C trace lengths short and away from high-current paths, can help mitigate interference.

- Device Addressing: Make sure every I/O device has a distinct address when utilizing numerous of them. This is especially important when using multiple EEPROMs like the M24C08-RMN6TP on the same bus.

- Data Integrity: To ensure the integrity of critical data, consider implementing error-checking mechanisms, such as checksums or CRC, especially for important configuration parameters stored in the EEPROM.

By integrating the M24C08-RMN6TP into a programmable thermostat with attention to these design considerations, manufacturers can enhance the device's functionality by providing reliable storage for user settings and preferences, thereby improving the overall user experience.
