Analog Devices Inc. LT1764AEFE-3.3#PBF

Part No.:: LT1764AEFE-3.3#PBF

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: LT1764AEFE-3.3#PBF.pdf

Description:: IC REG LINEAR 3.3V 3A 16TSSOP

In Stock:: 1306

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LT1764AEFE-3.3#PBF Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width) Exposed Pad
Packaging:
Tube
Series:
-
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Fixed
NumberofRegulators:
1
Voltage-Input(Max):
20V
Voltage-Output(Min/Fixed):
3.3V
Voltage-Output(Max):
-
VoltageDropout(Max):
0.66V @ 3A
Current-Output:
3A
Current-Quiescent(Iq):
1.5 mA
Current-Supply(Max):
200 mA
PSRR:
63dB (120Hz)
ControlFeatures:
Enable
ProtectionFeatures:
Over Current, Over Temperature, Reverse Polarity
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LT1764AEFE-3.3#PBF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LT1764AEFE-3.3#PBF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LT1764AEFE-3.3#PBF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LT1764AEFE-3.3#PBF information

Views：

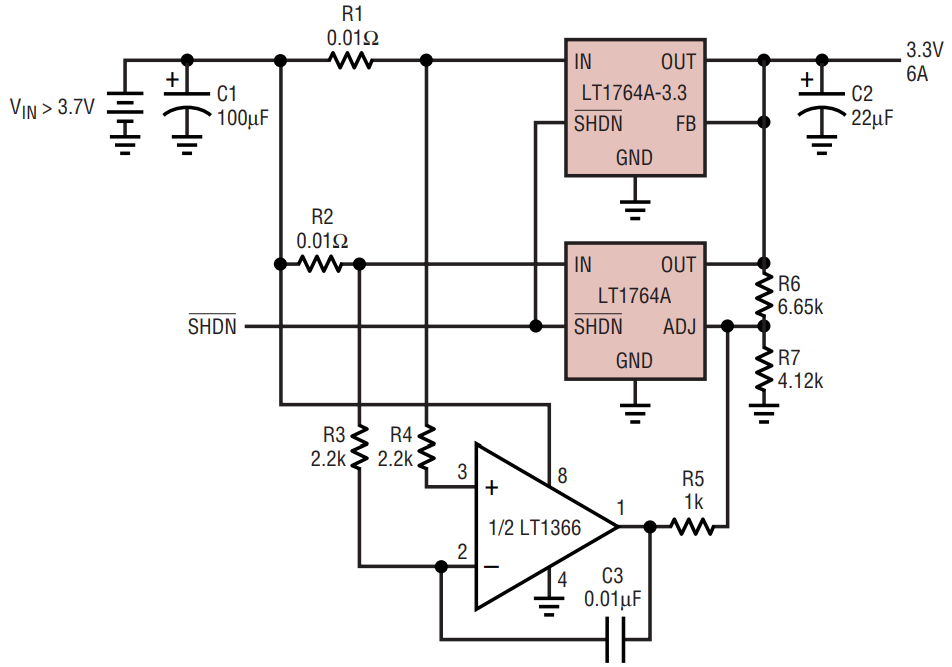

LT1764AEFE-3.3#PBF Typical application Circuitry

LT1764AEFE-3.3 PBF

The LT1764AEFE-3.3#PBF is a key variant within the LT1764 series, celebrated for its high-efficiency, low dropout (LDO) linear regulators capable of providing a solid 3A of output current. This model is specifically set to output a fixed voltage of 3.3V, making it particularly suitable for a wide range of applications that require a reliable 3.3V supply, such as powering digital logic, microprocessors, and various analog devices. The LT1764AEFE-3.3#PBF is renowned for its ability to maintain output regulation with very low input-to-output voltage differentials, thereby enhancing power efficiency across diverse operational conditions.

1. Voltage Input (VIN Pin): The LT1764AEFE-3.3#PBF draws its power through the VIN pin, which is designed to accept an input voltage range from 2.7V up to 20V. This flexibility ensures that the LT1764AEFE-3.3#PBF can seamlessly integrate into numerous power system architectures, making it a versatile choice for both portable and stationary applications.

2. Fixed Voltage Output (VOUT Pin): The VOUT pin on the LT1764AEFE-3.3#PBF is where the regulated 3.3V output is accessible. To achieve optimal performance and stability, it is imperative to connect a high-quality external capacitor to this pin, which also plays a critical role in filtering out noise and improving the transient response of the regulator.

3. Energy-Saving Shutdown (SHDN Pin): The LT1764AEFE-3.3#PBF incorporates an energy-efficient shutdown feature, managed via the SHDN pin. Activating this function by pulling the SHDN pin low reduces the regulator's quiescent current to a negligible level, thus conserving power in applications where intermittent operation is a design criterion.

4. Reference Ground (GND Pin): The GND pin establishes the common ground reference for the LT1764AEFE-3.3#PBF's operations. A reliable and low-impedance ground path is essential for the regulator's performance, ensuring that the output voltage remains precise and the system's stability is upheld under various load conditions.

5. Internal Protection Mechanisms: The LT1764AEFE-3.3#PBF is equipped with built-in protection features that include overcurrent and thermal safeguards. These internal circuits are designed to automatically intervene in situations that could otherwise lead to overheating or overload, thereby preserving the integrity of the regulator and the safety of the application.

Incorporating the LT1764AEFE-3.3#PBF into a power delivery design necessitates meticulous planning with regard to pin connections and the careful choice of external components, especially the output capacitor, which is crucial for ensuring the regulator's stability and performance. The LT1764AEFE-3.3#PBF exemplifies the LT1764 series' commitment to providing advanced, reliable power management solutions, making it an ideal component for developers seeking to optimize the efficiency and reliability of their electronic systems.
