Texas Instruments LSF0204QPWRQ1

Part No.:: LSF0204QPWRQ1

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: LSF0204QPWRQ1.pdf

Description:: 4-BITS MULTI-VOLTAGE LEVEL TRANS

In Stock:: 2001

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LSF0204QPWRQ1 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q100
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
4
Voltage-VCCA:
0.8 V ~ 4.5 V
Voltage-VCCB:
1.8 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Open Drain, Push-Pull
DataRate:
100MBd
OperatingTemperature:
-40°C ~ 125°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

LSF0204QPWRQ1 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LSF0204QPWRQ1 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LSF0204QPWRQ1 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LSF0204QPWRQ1 information

Views：

LSF0204QPWRQ1 Typical application Circuitry

LSF0204QPWRQ1

Texas Instruments offers a flexible, quad-channel bidirectional voltage-level translator called the LSF0204QPWRQ1, which is intended to help devices that run at various voltage levels communicate with each other. Its ability to automatically track the direction of data flow without the need for a direction control signal makes it ideal for applications requiring seamless integration of components with mismatched I/O voltage levels.

Application Scenario: Microcontroller Interface with Peripheral Devices

A common application for the LSF0204QPWRQ1 is in microcontroller-based systems where the microcontroller operates at one voltage level (e.g., 3.3V) and the peripheral devices operate at another voltage level (e.g., 5V). This scenario is typical in embedded systems, IoT devices, and automotive electronics where various sensors and communication modules need to interface with the main microcontroller.

Key Features

- Voltage Level Translation: The LSF0204QPWRQ1 supports bidirectional voltage translation between 0.8V and 5V without the need for a direction control signal.

- Multi-Channel Operation: It features four independent bidirectional channels, making it suitable for multiple signal translations in a single device.

- Automatic Direction Sensing: The device automatically senses the direction of the data flow, simplifying the circuit design.

- Low Standby Current: Designed for power-sensitive applications, it has a low standby current, contributing to overall power efficiency.

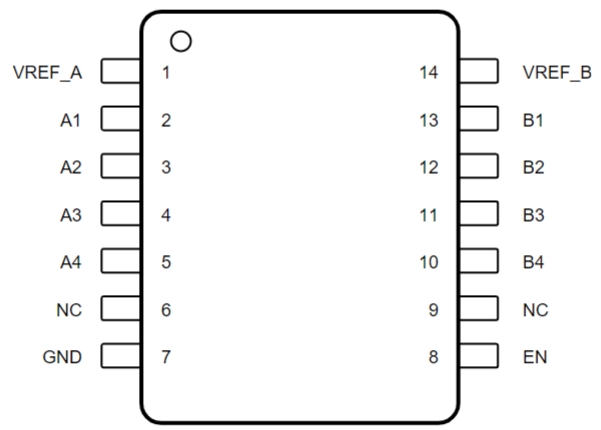

Circuit Design: Microcontroller to Peripheral Interface

Integrating the LSF0204QPWRQ1 into a system for interfacing a microcontroller with higher voltage peripheral devices involves detailed attention to pin connections:

1. Power Supply Connections: Connect the lower voltage supply (e.g., 3.3V) to the Vref_A pin and the higher voltage supply (e.g., 5V) to the Vref_B pin. These pins power the translation channels and set the voltage levels for each side.

2. Grounding: Ensure the GND pin is connected to the system's ground. Accurate level translation depends on a steady ground connection.

3. Input/Output Connections: Connect the microcontroller's I/O pins to the A1-A4 pins and the peripheral device's I/O pins to the corresponding B1-B4 pins. The LSF0204QPWRQ1 will automatically translate the voltage levels between these pins.

4. Enable Pin: The EN pin can be tied to the higher voltage supply (Vref_B) to keep the device always enabled, or it can be controlled by the microcontroller to selectively enable/disable the translation channels.

Design Considerations

- Bypass Capacitors: Place bypass capacitors close to the Vref_A and Vref_B pins to stabilize the voltage levels and filter out noise.

- Signal Integrity: Consider the layout to minimize the path length and avoid crosstalk between channels, ensuring signal integrity.

- Thermal Management: Although the LSF0204QPWRQ1 is designed for low power consumption, managing heat dissipation in high-frequency or high-density applications is essential.

- Pull-Up Resistors: Depending on the application, pull-up resistors may be required on the I/O lines to ensure proper logic levels when the channels are in a high-impedance state.

By employing the LSF0204QPWRQ1 in microcontroller interfaces, designers can effectively bridge the voltage gap between the core logic and peripheral devices, enhancing compatibility and functionality in multi-voltage systems. This feature emphasizes how important the LSF0204QPWRQ1 is to contemporary electronic designs.
