Name: LPC1788FBD208K
Brand: NXP USA Inc.
SKU: LPC1788FBD208K
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. LPC1788FBD208K

Part No.:: LPC1788FBD208K

Manufacturer:: NXP USA Inc.

Package:: 208-LQFP

Datasheet:: LPC1788FBD208K.pdf

Description:: IC MCU 32BIT 512KB FLASH 208LQFP

In Stock:: 3789

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LPC1788FBD208K Specifications

Package/Case:
208-LQFP
Packaging:
Bulk
Series:
LPC17xx
RoHS:
RoHS
Speed:
120MHz
RAM Size:
96K x 8
Core Size:
32-Bit
EEPROM Size:
4K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT
Connectivity:
CANbus, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
165
Core Processor:
ARM® Cortex®-M3
Data Converters:
A/D 8x12b; D/A 1x10b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

LPC1788FBD208K this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LPC1788FBD208K price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LPC1788FBD208K to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LPC1788FBD208K information

Views：

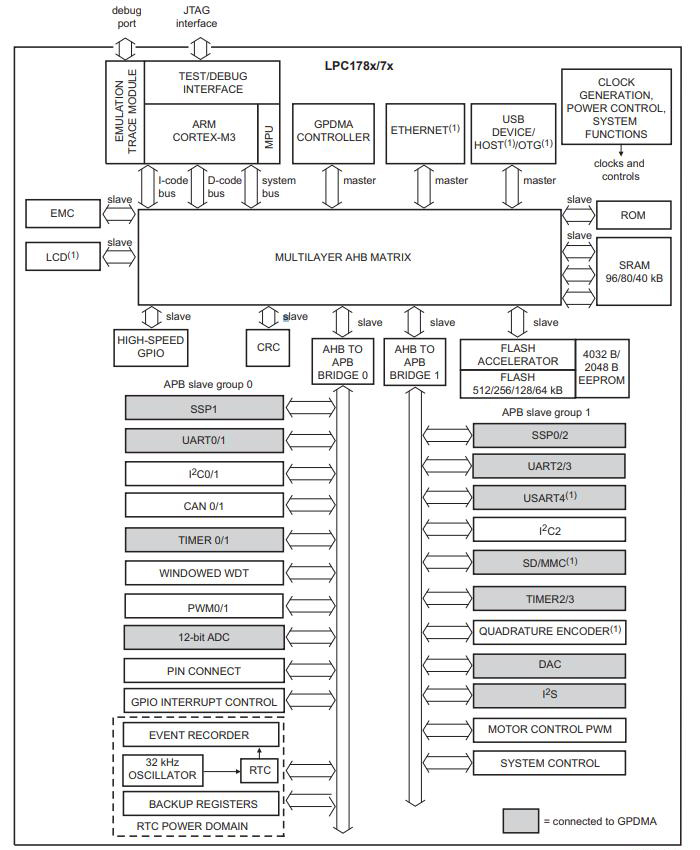

LPC1788FBD208K Typical application Circuitry

LPC1788FBD208K

The LPC1788FBD208K, a product of the NXP Semiconductors, falls under the versatile family of LPC microcontrollers. This microcontroller is an ARM Cortex-M3 based MCU and stands out for its excellent performance and broad range of integrated peripherals.

Functionality: The LPC1788FBD208K microcontroller supports an impressive set of features including 512 KB of flash memory, 96 KB of data memory, four UARTs, two CAN channels, three SPI/SSP buses, an I2C bus, a 10-bit ADC/DAC, a PWM unit, and much more. It operates up to 120 MHz and has an integrated PLL for clock multiplication/division.

Application Scenarios: The LPC1788FBD208K is commonly employed in applications such as alarm systems, networking, industrial control, and user interface applications. Its wealth of peripherals, coupled with high-performance processing capabilities, make it ideal for a myriad of embedded systems applications.

Characteristic Features: The LPC1788FBD208K includes several distinctive features:

1. High-performance core: The device utilizes a high-performance ARM Cortex-M3 core that can operate up to 120 MHz.

2. Robust memory: Equipped with 512KB of Flash memory and 96KB of data memory.

3. A wide range of peripherals: these include an Ethernet MAC, a USB Device/Host/OTG interface, an 8-channel general-purpose DMA controller, 4 UARTs, 2 CAN channels, 3 SPI/SSP buses, and more.

4. Package: The LPC1788FBD208K is available in a 208-pin LQFP package.

Let's focus on a typical use case: an Ethernet-based data logger:

1. Ethernet Connections: Connect the Ethernet PHY to the LPC1788FBD208K is Ethernet MAC. Ethernet pins are P1[0] to P1[15] (pins 88-100, 103-107).

2. Data Acquisition: Connect sensors to the ADC inputs such as P0[23]-P0[26] (pins 62-65) for analog data acquisition.

3. Storage Interface: If logging data to an SD card, connect an SD card interface to the SDCLK, SDCMD, and SDDAT[0]-SDDAT[3] pins (pins 168, 166, and 167, 176-179 respectively).

4. Programming and Debugging: For programming the LPC1788FBD208K , the JTAG interface is used, involving TMS, TCK, TDI, TDO, and TRST pins (pins 1, 2, 3, 4, and 5), plus VDD and VSS for power and ground respectively.

Design Considerations: When constructing a circuit with the LPC1788FBD208K , key factors to remember are:

1. Power Supply: Supply decoupling capacitors must be placed as close as possible to the VDD pins to maintain power stability.

2. EMC Compliance: Layout and design must be thought out to reduce EMC.

3. Thermal Management: Especially in high load conditions, heat dissipation must be considered.

4. Signal Integrity: Care must be taken in routing, particularly for the JTAG programming/debugging connections and high-speed interfaces like Ethernet.

In sum, the LPC1788FBD208K is a powerful microcontroller that can accommodate an array of applications, driven by its high-performance core, robust memory, and wealth of peripherals. This explanation has been simplified, and in a real-world application, other elements such as filters, power supplies, or isolators might be required. Consult the chip's datasheet and reference designs for the most accurate details.
