NXP USA Inc. LPC1765FBD100K

Part No.:: LPC1765FBD100K

Manufacturer:: NXP USA Inc.

Package:: 100-LQFP

Datasheet:: LPC1765FBD100K.pdf

Description:: IC MCU 32BIT 256KB FLASH 100LQFP

In Stock:: 2863

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LPC1765FBD100K Specifications

Package/Case:
100-LQFP
Packaging:
Bulk
Series:
LPC17xx
RoHS:
RoHS
Speed:
100MHz
RAM Size:
64K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT
Connectivity:
CANbus, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
70
Core Processor:
ARM® Cortex®-M3
Data Converters:
A/D 8x12b; D/A 1x10b
Oscillator Type:
Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

LPC1765FBD100K this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LPC1765FBD100K price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LPC1765FBD100K to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LPC1765FBD100K information

Views：

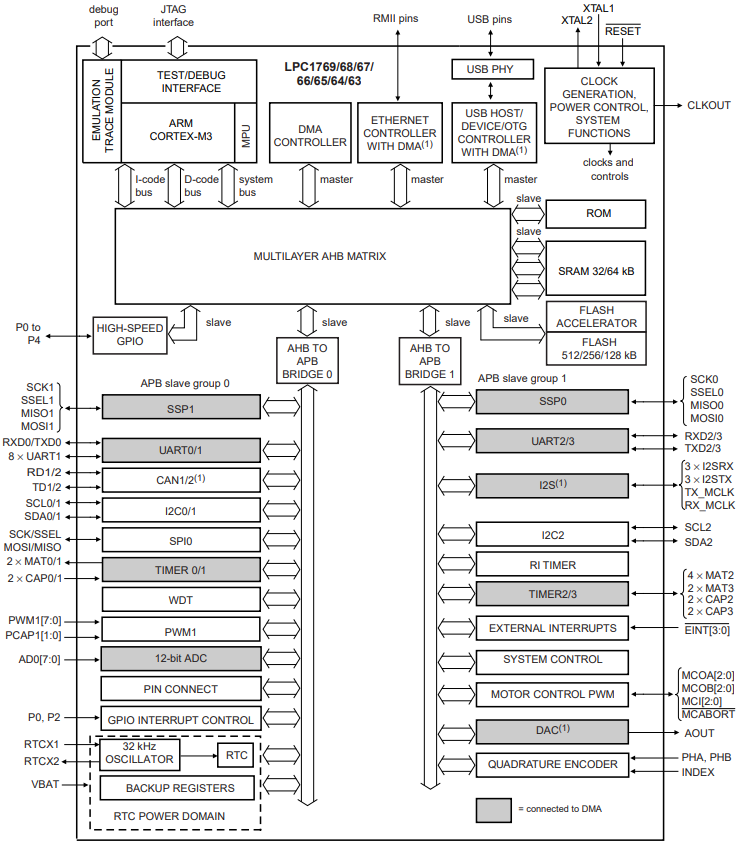

LPC1765FBD100K Typical application Circuitry

The LPC1765FBD100K is a 32-bit microcontroller, based on the ARM Cortex-M3 architecture, and is produced by NXP Semiconductors. Belonging to the LPC17xx microcontroller series, this component caters to the needs of embedded applications that demand seamless integration and minimal power consumption.

Key Features of LPC1765FBD100K:

- Core: ARM Cortex-M3 CPU with a frequency of up to 100 MHz.

- Memory: 256 KB on-chip flash memory, 64 KB SRAM.

- Communication: Ethernet, a USB 2.0 Device/Host/OTG, a general-purpose DMA controller with 8 channels, 4 UARTs, and 2 CAN channels.

- Analog: 12-bit/8-channel ADC, 10-bit DAC.

- Supply Voltage: 2.2V to 3.6V.

- Packaging: It is available in a 100-pin LQFP package.

Application Scenarios:

The LPC1765FBD100K can be used in a wide range of applications including but not limited to industrial control systems, medical systems, networking devices, alarm systems, embedded servers, and much more.

Example Circuit Connection (Industrial Control System):

1. Power Supply: Connect the 3.3V power supply to VDD pins (pin numbers 28, 48, 77, and 78), and connect the ground to VSS pins (pin numbers 5, 26, 47, and 76).

2. Reset: Connect a normally open push-button switch to the RESET pin (pin number 53). One terminal of the switch should go to the RESET pin and the other terminal to VDD. The RESET pin and VDD should be connected via a 10K ohm pull-up resistor.

3. UART Communication: Connect UART0 TxD (pin number 13) and RxD (pin number 14) to the RS-232 transceiver for serial communication. A proper level shifting circuit or IC may be required for this.

4. GPIO: GPIO pins can be utilized for controlling or reading the status of industrial devices. For example, P0[0] (pin number 82) could be used to control a relay or read a sensor's digital output.

5. Programming Interface: For programming and debugging purposes, the TMS (pin number 8) and TCK (pin number 9) pins can be connected to an appropriate debugger/programmer.

When designing with the LPC1765FBD100K, careful consideration should be given to the power supply stability, signal integrity, and protection against electrical noise in industrial environments. To filter out the noise from the power source, appropriate decoupling capacitors should be employed. Also, the environment can have a lot of electrical noise, so care should be taken in signal routing and isolation. ESD protection and thermal management are other considerations to keep in mind while designing circuits using the LPC1765FBD100K.
