Texas Instruments LP5009RUKR

Part No.:: LP5009RUKR

Manufacturer:: Texas Instruments

Package:: 20-WFQFN Exposed Pad

Datasheet:: LP5009RUKR.pdf

Description:: IC LED DRVR LIN PWM 35MA 20WQFN

In Stock:: 2368

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LP5009RUKR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Linear
Topology:
Constant Current
InternalSwitch(s):
No
NumberofOutputs:
9
Voltage-Supply(Min):
2.7V
Voltage-Supply(Max):
5.5V
Voltage-Output:
0V ~ 5.5V
Current-Output/Channel:
35mA
Frequency:
29kHz
Dimming:
Analog, PWM
Applications:
LED Lighting
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

LP5009RUKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LP5009RUKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LP5009RUKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LP5009RUKR information

Views：

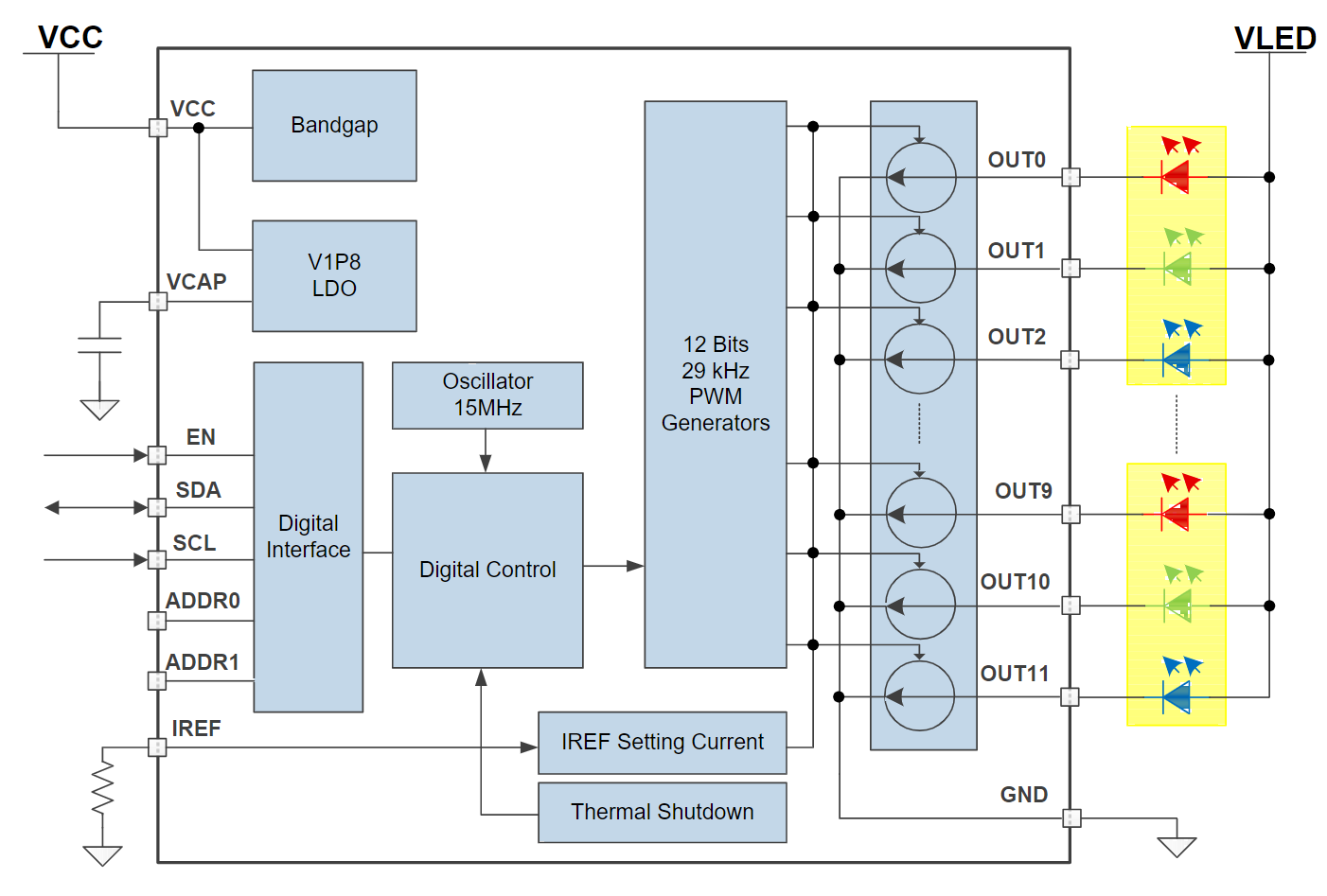

LP5009RUKR Typical application Circuitry

LP5009RUKR

The LP5009RUKR is a device from Texas Instruments' LP5009 series, which is a family of power management integrated circuits (PMICs) designed for LED driving solutions. This particular series is known for its ability to provide stable power to multiple LEDs, making it suitable for applications such as backlighting in consumer electronics, automotive interior lighting, and industrial displays.

1. Power Supply (VIN Pin): This pin should be connected to the supply voltage which powers the device. The voltage supplied to the LP5009RUKR must be kept within the range mentioned in the datasheet.

2. Ground (GND Pin): The system's ground must be linked to the GND pin. This is essential for providing a reference point for the device's operation and stabilizing the output to the LEDs.

3. LED Output Pins (OUT0 to OUT8): The LP5009RUKR typically has multiple output pins, each one connecting to an individual LED. These pins provide the controlled current to drive the LEDs.

4. I2C Interface Pins (SCL, SDA): These pins are used for the I2C communication interface, which allows the device to be programmed with specific settings for LED operation, such as brightness levels.

5. Enable Pin (EN): The enable pin is used to turn the LP5009RUKR on or off. When a high logic level is applied, the device is operational. When low, it is in a shutdown state.

6. Address Selection Pins (A0, A1): These pins are used to set the hardware I2C address of the LP5009RUKR. This is useful when multiple devices are used in the same system to avoid address conflicts on the I2C bus.

7. Thermal Pad (Exposed Pad): The thermal pad is typically soldered down to the PCB to enhance thermal dissipation. Proper thermal management is crucial for maintaining device reliability and performance.

The LP5009RUKR is recognized for its efficiency in driving LEDs with precise control over lighting effects, which is increasingly important in modern electronic devices where space is limited, and power efficiency is crucial.

In summary, the LP5009RUKR from Texas Instruments' LP5009 series is a PMIC tailored for LED driving applications. Each pin on the device plays a critical role, and accurate connections are necessary for proper operation. For comprehensive electrical characteristics and application guidance, the LP5009RUKR datasheet is an essential reference.
