Name: LMC555CMX/NOPB
Brand: Texas Instruments
SKU: LMC555CMX/NOPB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments LMC555CMX/NOPB

Part No.:: LMC555CMX/NOPB

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LMC555CMX/NOPB.pdf

Description:: IC OSC SINGLE TIMER 3MHZ 8-SOIC

In Stock:: 3781

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMC555CMX/NOPB Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
3MHz
Voltage-Supply:
1.5V ~ 15V
Current-Supply:
150 µA
OperatingTemperature:
-40°C ~ 85°C

LMC555CMX/NOPB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMC555CMX/NOPB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMC555CMX/NOPB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMC555CMX/NOPB information

Views：

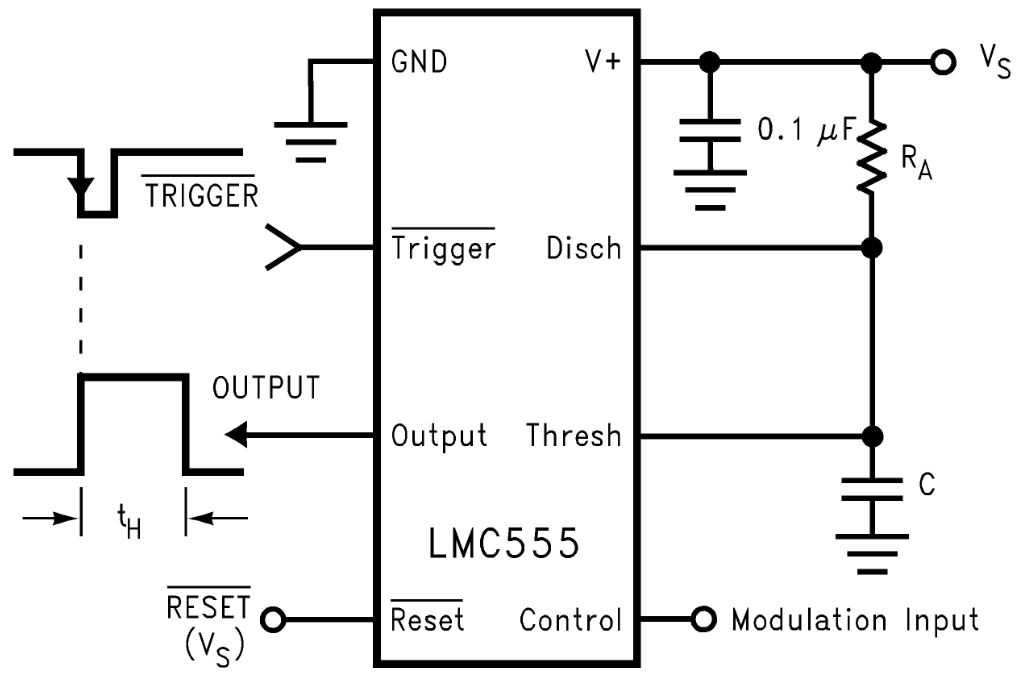

LMC555CMX/NOPB Typical application Circuitry

LMC555CMX/NOPB

A model from the LMC555 family, the LMC555CMX/NOPB is a CMOS take on the traditional 555 timer integrated circuit. This series is notable for its low power consumption and wide voltage range, making it particularly suitable for battery-operated and energy-efficient applications.

1. Ground (Pin 1): Connect this pin to the circuit's ground (0V).

2. Trigger (Pin 2): This pin initiates the timing sequence when the voltage drops below 1/3 of the supply voltage. It's typically connected to an RC (resistor-capacitor) network for setting the timing interval.

3. Output (Pin 3): This pin delivers the output signal from the timer. It can source or sink significant current, making it capable of driving various loads, including TTL inputs.

4. Reset (Pin 4): Applying a low signal to this pin resets the timer. It may be linked to the positive supply voltage for continuous operation. If not used, it should be tied to Vcc to avoid unintentional resets.

5. Control Voltage (Pin 5): This pin allows for external modulation of the timer's internal voltage reference. If not used, it's typically connected to ground through a small capacitor (e.g., 0.01 µF) to provide noise immunity.

6. Threshold (Pin 6): This pin connects to an internal comparator that resets the timer. It is usually part of the same RC network as the trigger pin.

7. Discharge (Pin 7): When the output is low, this open-collector output is connected to ground. It is typically used to discharge the capacitor in the RC network in astable mode.

8. Supply Voltage (Vcc) (Pin 8): This pin is connected to the positive supply voltage, which should be within the range specified for the LMC555CMX/NOPB.

9. Decoupling Capacitor: A decoupling capacitor (like 0.1 µF) between Vcc and Ground is recommended to stabilize the power supply and filter out noise.

10. Reset Pin Functionality: If not using the reset function, tie Pin 4 to Vcc to prevent accidental resets.

11. Control Voltage Stabilization: If external control of the threshold and trigger levels is unnecessary, connect a capacitor from Pin 5 to Ground to stabilize the control voltage.

12. Timing Component Selection: Choose the resistor and capacitor values in the RC network connected to Pins 2 and 6 carefully, as they determine the timing intervals of the LMC555CMX/NOPB's operation.

The LMC555CMX/NOPB, part of the LMC555 series, is a versatile timer IC suitable for a wide range of applications, including timing, pulse generation, and oscillator circuits. Its efficiency and low power consumption make it an excellent choice for various electronic designs.
