What is the Additional Feature ?

Name: LMC555CMX
Brand: National Semiconductor
SKU: LMC555CMX
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

National Semiconductor LMC555CMX

Part No.:: LMC555CMX

Manufacturer:: National Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: LMC555CMX.pdf

Description:: LMC555 - 555 TIMER WITH LOW POWE

In Stock:: 3381

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LMC555CMX Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk
Series:
-
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
3MHz
Voltage-Supply:
1.5V ~ 15V
Current-Supply:
150 µA
OperatingTemperature:
-40°C ~ 85°C

LMC555CMX this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LMC555CMX price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LMC555CMX to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LMC555CMX information

Views：

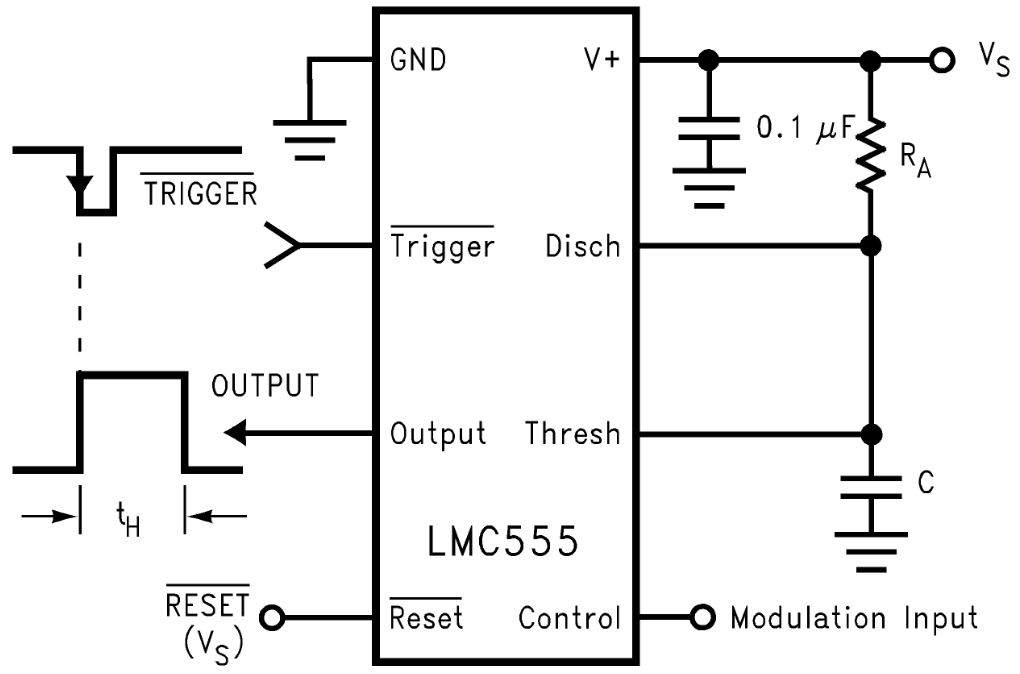

LMC555CMX Typical application Circuitry

LMC555CMX

The LMC555CMX is a part of the 555 timer series, specifically the LMC555 which is a CMOS version of the standard 555 timer. This variant is ideal for battery-powered applications because to its low power consumption and wide supply voltage range.

1. Ground (Pin 1): This pin is linked to the circuit's ground.

2. Trigger (Pin 2): This pin is the input to the negative edge-triggered flip-flop which sets the timing interval. It is usually connected to the threshold pin through a resistor-capacitor network.

3. Output (Pin 3): This pin is the output of the timer. It can drive TTL inputs and can source or sink up to 200 mA.

4. Reset (Pin 4): This pin resets the timer. When connected to ground, it disables the timer, and when left unconnected or connected to a high voltage level, the timer operates normally.

5. Control Voltage (Pin 5): This pin allows direct access to the 2/3 Vcc internal voltage divider point and can be used to modulate the output waveform.

6. Threshold (Pin 6): This pin is connected to the internal comparator that resets the flip-flop and is usually connected to the trigger pin via a capacitor, forming part of the RC timing network.

7. Discharge (Pin 7): This pin is attached to the flip-flop's open-collector output and is used to discharge the timing capacitor in astable mode.

8. Supply Voltage (Pin 8): This pin is connected to the positive supply voltage of the circuit.

9. Decoupling Capacitor: A decoupling capacitor (0.01 to 0.1 µF) is recommended between the Vcc (Pin 8) and Ground (Pin 1) to filter noise on the power supply line.

10. Bypassing Reset: The reset pin (Pin 4) can be bypassed if not used by connecting it to Vcc to avoid any possibility of false triggering.

11. Control Voltage Stabilization: If the control voltage (Pin 5) isn't utilized, it's usually linked to ground via a 0.01 F capacitor to keep the threshold voltage stable.

12. Timing Components: The timing components (resistors and capacitors) should be chosen based on the desired frequency and pulse width for the application.

The LMC555CMX timer is versatile and can be configured in numerous ways, including as a monostable, astable, or bistable device, depending on the external components and their connections. Because of its versatility, it may be used for a broad range of applications, from basic timers and pulse production to complicated waveform creation.

LMC555CMX FAQ

1. How to order LMC555CMX on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that LMC555CMX is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the LMC555CMX. All suppliers must pass our qualification reviews before they can publish their products including LMC555CMX on icwhale.com; we pay more attention to the channels and quality of LMC555CMX products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the LMC555CMX price and inventory displayed accurate?

The price and inventory of LMC555CMX fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of LMC555CMX?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LMC555CMX we delivered, we will accept the replacement or return of the LMC555CMX only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of LMC555CMX.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
