Texas Instruments LM60CIM3X

Part No.:: LM60CIM3X

Manufacturer:: Texas Instruments

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: LM60CIM3X.pdf

Description:: SENSOR ANALOG -40C-125C SOT23-3

In Stock:: 3644

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

LM60CIM3X Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Not For New Designs
SensorType:
Analog, Local
SensingTemperature-Local:
-40°C ~ 125°C
SensingTemperature-Remote:
-
OutputType:
Analog Voltage
Voltage-Supply:
2.7V ~ 10V
Resolution:
6.25mV/°C
Features:
-
Accuracy-Highest(Lowest):
±3°C (±4°C)
TestCondition:
25°C (-40°C ~ 125°C)
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

LM60CIM3X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including LM60CIM3X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for LM60CIM3X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

LM60CIM3X information

Views：

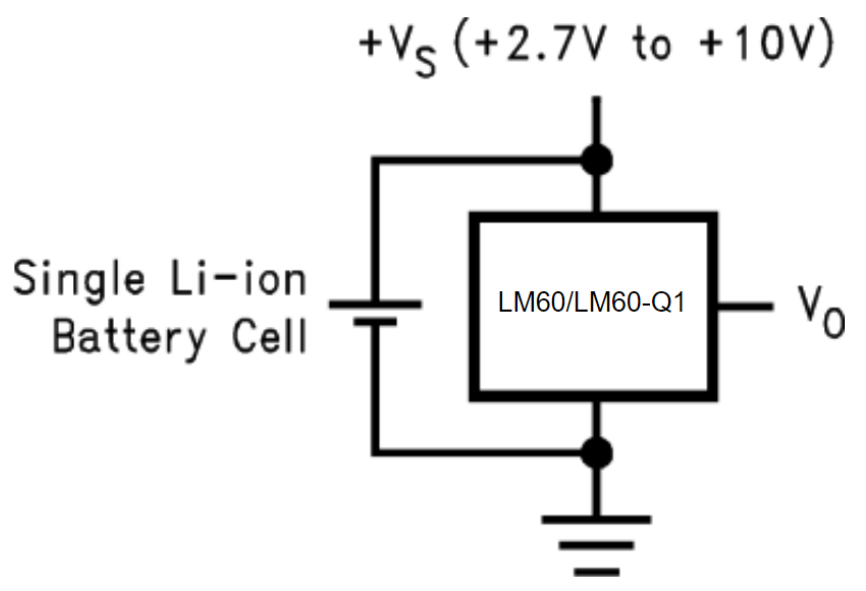

LM60CIM3X Typical application Circuitry

LM60CIM3X

The LM60CIM3X is part of Texas Instruments' LM60 series, a line of precision analog temperature sensors. These sensors are perfect for many applications needing temperature monitoring, such as in electrical devices, environmental controls, and industrial systems, since they are made to deliver a linear voltage output proportionate to the Celsius temperature.

1. LM60CIM3X Series Characteristics: The LM60CIM3X is recognized for its precision temperature sensing capabilities, offering a linear voltage output in response to temperature changes.

2. Pin Configuration and Circuit Connection:

- VCC Pin: This pin is the power supply connection for the LM60CIM3X, which should be connected to a voltage source within the sensor's operating range.

- GND Pin: The ground pin, establishing a common reference point for the sensor and the entire circuit.

- VOUT Pin: A voltage that is proportionate to the observed temperature is provided via the output voltage pin. This output is typically connected to an analog-to-digital converter (ADC) or other monitoring circuitry.

3. Circuit Design Considerations:

- For the LM60CIM3X to monitor temperature accurately, the supply voltage (VCC) must be within the prescribed range.

- The output voltage (VOUT) typically requires connection to a load resistance or an ADC for digital processing.

- Sensor placement is critical for accurate temperature readings; it should be away from heat-generating components to avoid false readings.

4. Key Functional Aspects of LM60CIM3X:

- The LM60CIM3X features a linear temperature-to-voltage conversion, with a specified scale factor that simplifies temperature measurement.

- It can function over a wide temperature range, making it useful for a variety of temperature monitoring applications.

5. Applications for LM60CIM3X: Ideal for temperature monitoring in electronic systems, environmental control systems, and industrial processes where accurate and reliable temperature measurement is required.

When implementing the LM60CIM3X in a system, it's important to consider factors such as the temperature range, desired output resolution, and the physical placement of the sensor. For comprehensive information on electrical characteristics, operating conditions, and implementation guidance, the datasheet and application notes from Texas Instruments for the LM60CIM3X provide essential details, ensuring effective use in temperature sensing applications.
